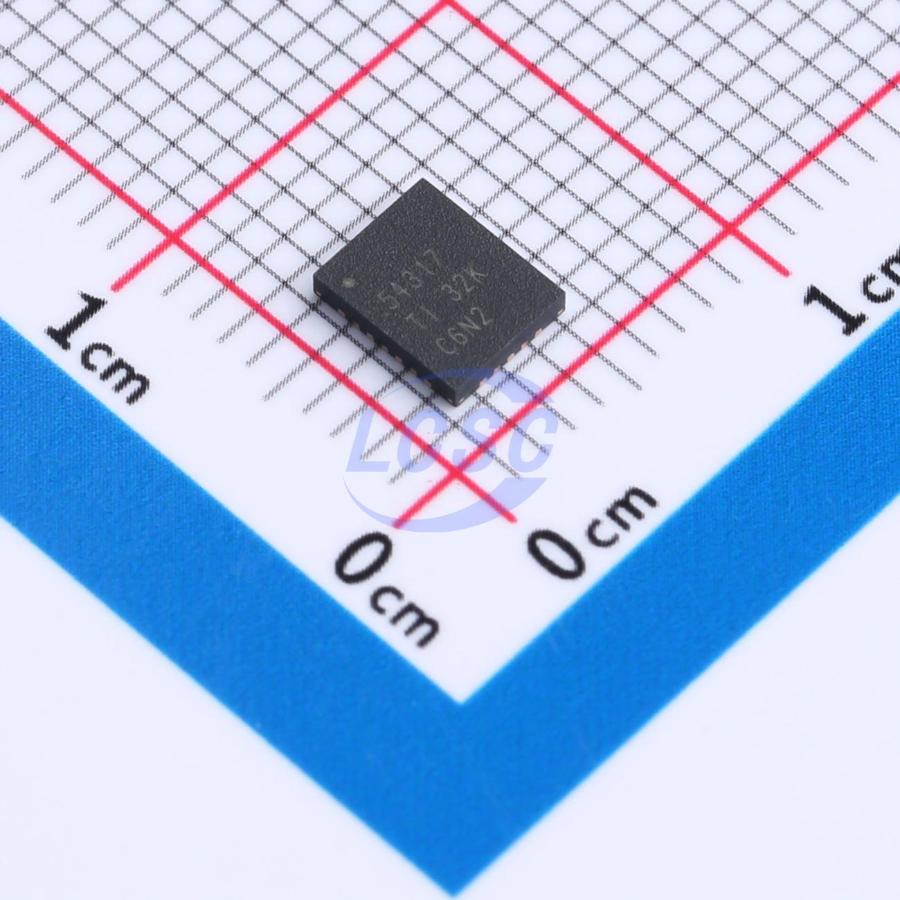

TPS54317RHFR

As members of the SWIFT™ family of dc/dc regulators, the TPS54317 low-input-voltage high-output-current synchronous-buck PWM converter integrates all required active components. Included on the substrate with the listed features are a true, high performance, voltage error amplifier that provides high performance under transient conditions; an undervoltage-lockout circuit to prevent start-up until the input voltage reaches 3V; an internally and externally set slow-start circuit to limit in-rush currents; and a power good output useful for processor/logic reset, fault signaling, and supply sequencing. The TPS54317 device is available in a thermally enhanced 24-pin QFN (RHF) PowerPAD™ package, which eliminates bulky heatsinks.

Applications

• Low-Voltage, High-Density Systems With Power Distributed at 5 V or 3.3 V
• Point of Load Regulation for High Performance DSPs, FPGAs, ASICs, and Microprocessors
• Broadband, Networking and Optical Communications Infrastructure

Key features

• 60-mΩ MOSFET Switches for High Efficiency at 3-A Continuous Output Current
• Adjustable Output Voltage Down to 0.9 V With ±1% Accuracy
• Switching Frequency: Adjustable From 280 kHz to 1600 kHz
• Externally Compensated for Design Flexibility
• Fast Transient Response
• Load Protected by Peak Current Limit and Thermal Shutdown
• Integrated Solution Reduces Board Area and Total Cost
• Spacing Saving 4mm x 5mm QFN Packaging
