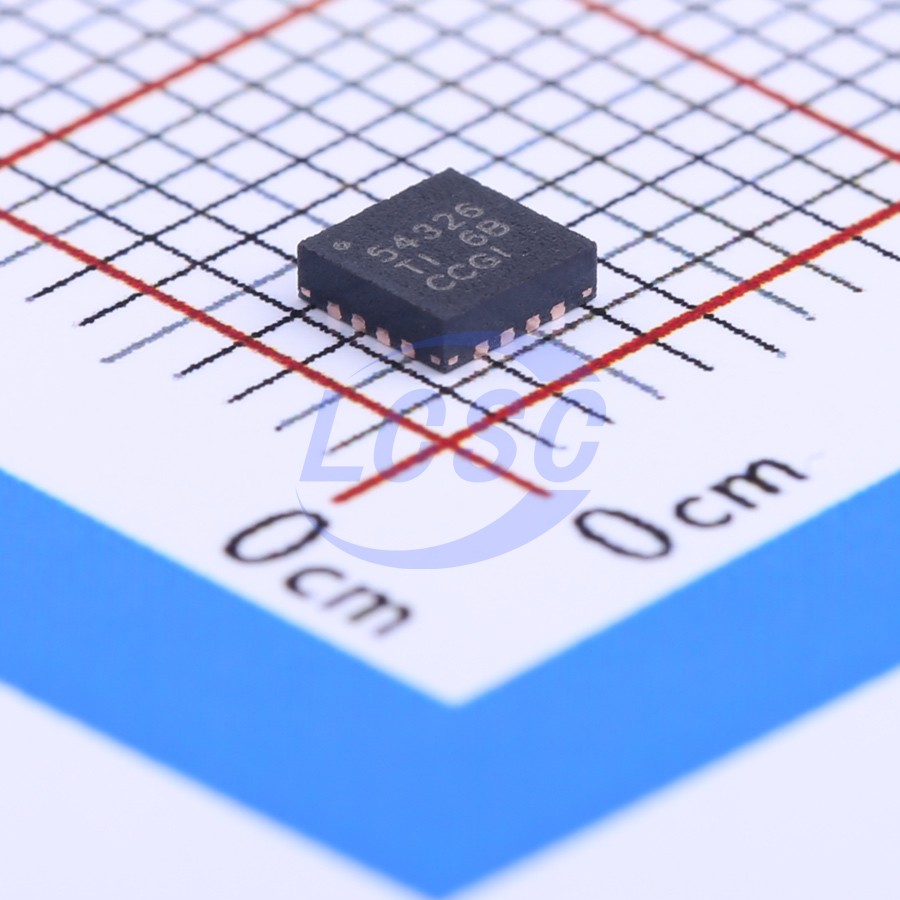

TPS54326RGTR

The TPS54326 is an adaptive on-time D-CAP2™ mode synchronous buck converter. It enables system designers to complete the suite of various end equipment’s power bus regulators with a cost effective, low component count, low standby current solution. The main control loop uses the D-CAP2™ mode control which provides a fast transient response with no external components. The adoptive on-time control supports seamless operation between PWM mode at heavy load condition and reduced frequency Eco-mode™ operation at light load for high efficiency. The TPS54326 has a proprietary circuit that enables the device to adapt to both low equivalent series resistance (ESR) output capacitors, such as POSCAP or SP-CAP, and ultra-low ESR ceramic capacitors. The device operates from 4.5 V to 18-V VCC input, and from 2-V to 18-V VIN input power supply voltage. The output voltage can be programmed between 0.76 V and 5.5 V. The device also features an adjustable slow start time and a power good function. The TPS54326 is available in the 14 pin HTSSOP or 16 pin QFN package, and designed to operate from -40°C to 85°C.

Applications

• Digital TV Power Supply
• High Definition Blu-ray Disc Players
• Networking Home Terminal
• Digital Set Top Box (STB)

Key features

• D-CAP2™ Mode Enables Fast Transient Response
• Low Output Ripple and Allows Ceramic Output Capacitor
• Wide VCC Input Voltage Range: 4.5 V to 18 V
• Wide VIN Input Voltage Range: 2 V to 18 V
• Output Voltage Range: 0.76 V to 5.5 V
• Highly Efficient Integrated FET’s Optimized for Lower Duty Cycle Applications
• 120 mΩ (High Side) and 70 mΩ (Low Side)
• High Efficiency, less than 10 μA at Shutdown
• Auto-Skip Eco-mode™ for High Efficiency at Light Load
• High Initial Bandgap Reference Accuracy
• Adjustable Soft Start
• Pre-Biased Soft Start
• 700-kHz Switching Frequency (fSW)
• Cycle-By-Cycle Overcurrent Limit
• Power Good Output
