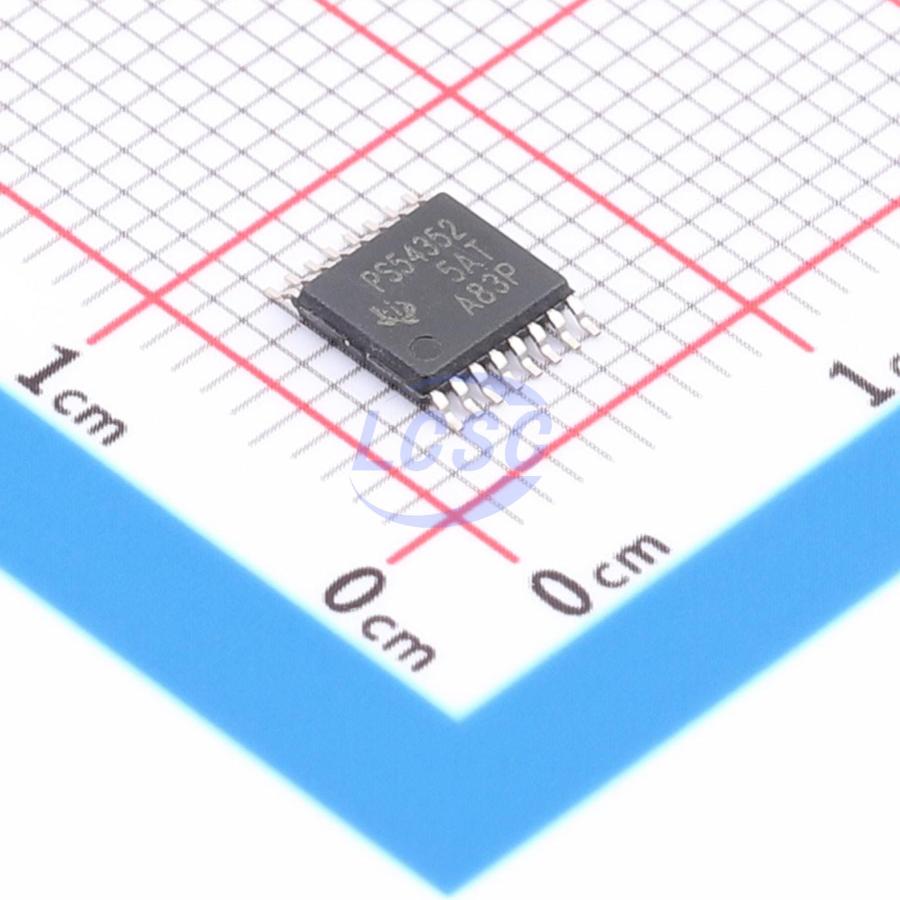

TPS54352PWPR
Step-down type Fixed 3A 1.2V HTSSOP-16-EP Voltage Regulators - DC DC Switching Regulators RoHS
HTSSOP-16-EPROHS CompliantDiscontinued
- Manufacturer
- TI
- Manufacturer part #
- TPS54352PWPR
- Store part #
- C2072793
- Package / case
- HTSSOP-16-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C2072793
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹665.80 | ₹665.80 |
| 10+ | ₹650.16 | ₹6,501.60 |
| 30+ | ₹639.72 | ₹19,191.60 |
| 100+ | ₹629.30 | ₹62,930.00 |
1 × ₹665.80
₹665.80
excl. GST
₹785.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TPS54352PWPR
₹665.80 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 250kHz;500kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Frequency synchronization;Operating status indication;Hiccup current limiting;Overcurrent Protection
- Topology
- Buck
- Output Type
- Fixed
- Operating Voltage
- 4.5V~20V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3A
- Output Voltage
- 1.2V
- Quiescent Current
- 5mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.04 g
Overview
The TPS5435x is a medium output current synchronous buck PWM converter with an integrated high side MOSFET and a gate driver for an optional low side external MOSFET. Features include a high performance voltage error amplifier that enables maximum performance under transient conditions. The TPS5435x has an under-voltage-lockout circuit to prevent start-up until the input voltage reaches a preset value; an internal slow-start circuit to limit in-rush currents; and a power good output to indicate valid output conditions. The synchronization feature is configurable as either an input or an output for easy 180° out of phase synchronization.
Applications
- Industrial & Commercial Low Power Systems
- LCD Monitors and TVs
- Computer Peripherals
- Point of Load Regulation for High Performance DSPs, FPGAs, ASICs and Microprocessors
Key features
- 100 mΩ, 4.5-A Peak MOSFET Switch for High Efficiency at 3-A Continuous Output Current
- Uses External Lowside MOSFET or Diode
- Fixed Output Versions − 1.2V/1.5V/1.8V/2.5V/3.3V/5.0V
- Internally Compensated for Low Parts Count
- Synchronizes to External Clock
- 180° Out of Phase Synchronization
- Wide PWM Frequency − Fixed 250 kHz, 500 kHz or Adjustable 250 kHz to 700 kHz
- Internal Slow Start
- Load Protected by Peak Current Limit and Thermal Shutdown
- Adjustable Undervoltage Lockout
- 16-Pin TSSOP PowerPAD Package
