TPS54360BQDDARQ1

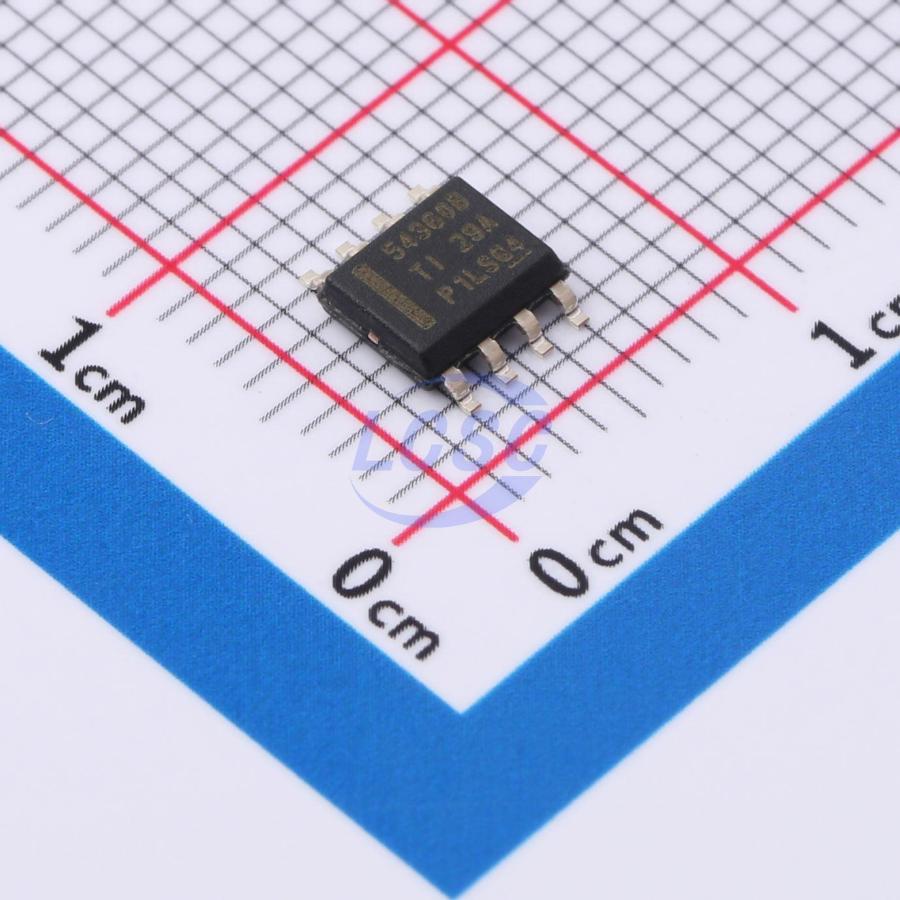

The TPS54360B-Q1 is a 60-V 3.5-A step-down regulator with an integrated high-side MOSFET. The device survives load dump pulses up to 65 V per ISO 7637. Current mode control provides simple external compensation and flexible component selection. A low-ripple pulse-skip mode reduces the no-load supply current to 146 μA. Shutdown supply current is reduced to 2 μA when the enable pin is pulled low. Undervoltage lockout is internally set at 4.3 V but can be increased using an external resistor divider at the enable pin. The output voltage start-up ramp is internally controlled to provide a controlled start up and eliminate overshoot. A wide adjustable frequency range allows either efficiency or external component size to be optimized. Frequency foldback and thermal shutdown protects internal and external components during an overload condition. The TPS54360B-Q1 is available in an 8-pin thermally enhanced HSOP PowerPAD package.

Applications

• Vehicle Accessories: GPS, Entertainment, ADAS, eCall
• USB Dedicated Charging Ports and Battery Chargers
• Industrial Automation and Motor Controls
• 12-V, 24-V, and 48-V Industrial, Automotive, and Communications Power Systems

Key features

• Qualified for Automotive Applications
• Device Temperature Grade 1: -40°C to 125°C Ambient Operating Temperature Range
• Device HBM ESD Classification Level H1C
• Device CDM ESD Classification Level C3B
• High Efficiency at Light Loads With Pulse Skipping
• Eco-Mode™
• 92-mΩ High-Side MOSFET
• 146 μA Operating Quiescent Current and 2 μA Shutdown Current
• 100-kHz to 2.5-MHz Adjustable Switching Frequency
• Synchronizes to External Clock
• Low Dropout at Light Loads With Integrated BOOT Recharge FET
• Adjustable UVLO Voltage and Hysteresis
• 0.8 ± 1% Internal Voltage Reference
• 8-Pin HSOP With PowerPAD™ Package
• -40°C to 150°C TJ Operating Range
