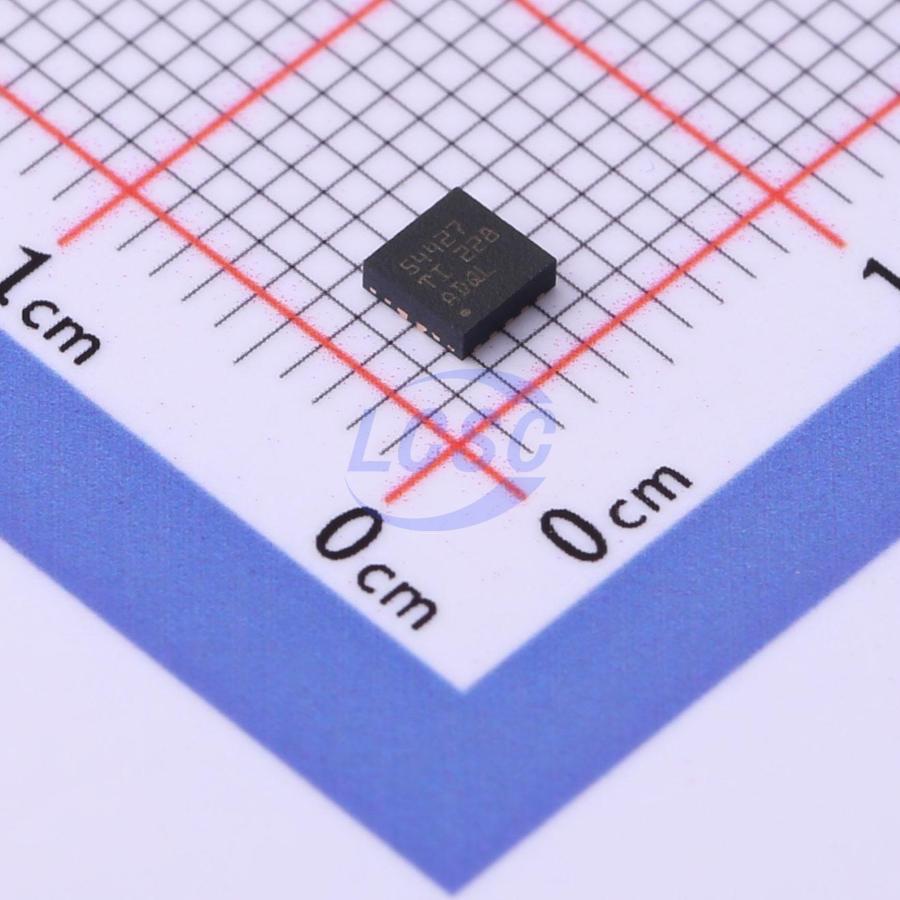

TPS54427DRCT

TPS54427 is an adaptive on-time D-CAP2™ mode synchronous buck converter. It helps system designers implement power bus regulator sets for a variety of end equipment through a cost-effective, low component count, low standby current solution. The main control loop employs D-CAP2™ mode control, achieving extremely fast transient response without external compensation components. Proprietary circuitry also enables the device to operate with low ESR output capacitors such as polymer organic semiconductor solid capacitors (POSCAP) or polymer capacitors (SP-CAP), as well as ultra-low ESR ceramic capacitors. The operating input voltage ranges from 4.5V to 18V, with an adjustable output voltage between 0.76V and 7V. The device also features an adjustable soft-start time. Available in an 8-pin DDA package and a 10-pin DRC package, it is designed to operate over a temperature range of -40°C to 85°C.

Applications

• Wide application in low-voltage systems
• Digital TV power supplies
• High-definition Blu-ray Disc players
• Home network terminal equipment
• Digital set-top boxes (STB)

Key features

• D-CAP2™ mode for fast transient response
• Low output ripple, compatible with ceramic output capacitors
• Wide input voltage range: 4.5V to 18V
• Output voltage range: 0.76V to 7.0V
• High-efficiency integrated FET
• Optimized for low duty cycle applications
• -70mΩ (high-side) and 53mΩ (low-side)
• High efficiency in shutdown, quiescent current below 10μA
• High initial bandgap reference accuracy
• Adjustable soft-start
• Pre-bias soft-start
• 650kHz switching frequency (fSW)
• Cycle-by-cycle overcurrent limiting
