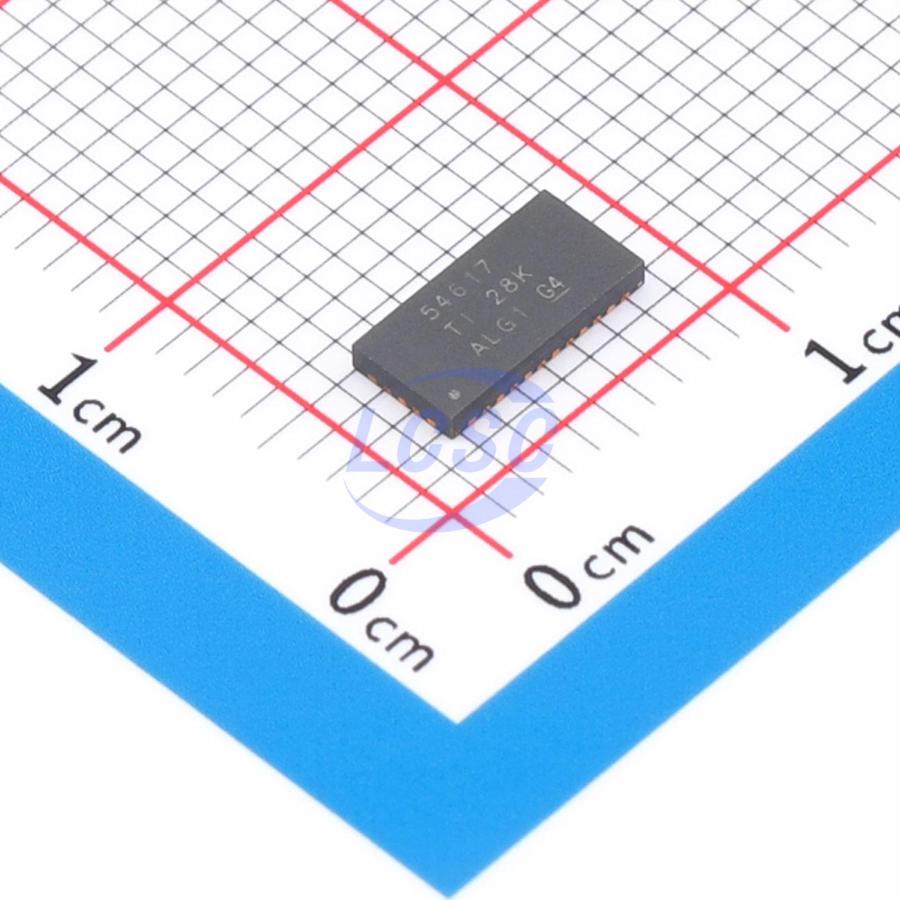

TPS54617RUVR

As a member of the SWIFT™ family of dc/dc regulators, the TPS54617 low-input voltage high-output current synchronous buck PWM converter offers the same features as the TPS54610 in a small package and higher switching frequency. Included on the substrate with the listed features are a true, high performance, voltage error amplifier that enables maximum performance under transient conditions and flexibility in choosing the output filter L and C components; an undervoltage-lockout circuit to prevent start-up until the input voltage reaches 3 V; an internally and externally set slow-start circuit to limit in-rush currents; and a power good output useful for processor/logic reset, fault signaling, and supply sequencing. The TPS54617 is available in a thermally enhanced 34 pin QFN (RUV) PowerPAD™ package, which eliminates bulky heatsinks.

Applications

• Low-Voltage, High-Density Systems With Power Distributed at 3.3 V or 5 V
• Point of Load Regulation for High Performance DSPs, FPGAs, ASICs, and Microprocessors
• Broadband, Networking and Optical Communications Infrastructure

Key features

• 30-mΩ MOSFET Switches for High Efficiency at 6-A Continuous Output
• Adjustable Output Voltage Down to 0.9 V With ±1% Accuracy
• Externally Compensated for Design Flexibility
• Wide PWM Frequency: Fixed 350 kHz, 550 kHz, or Adjustable 280 kHz to 1.6 MHz
• Synchronizable to 1.6 MHz
• Load Protected by Peak Current Limit and Thermal Shutdown
• Small 3.5mm x 7mm Package and Similar Layout to TPS54610 Reduces Board Area and Total Cost
