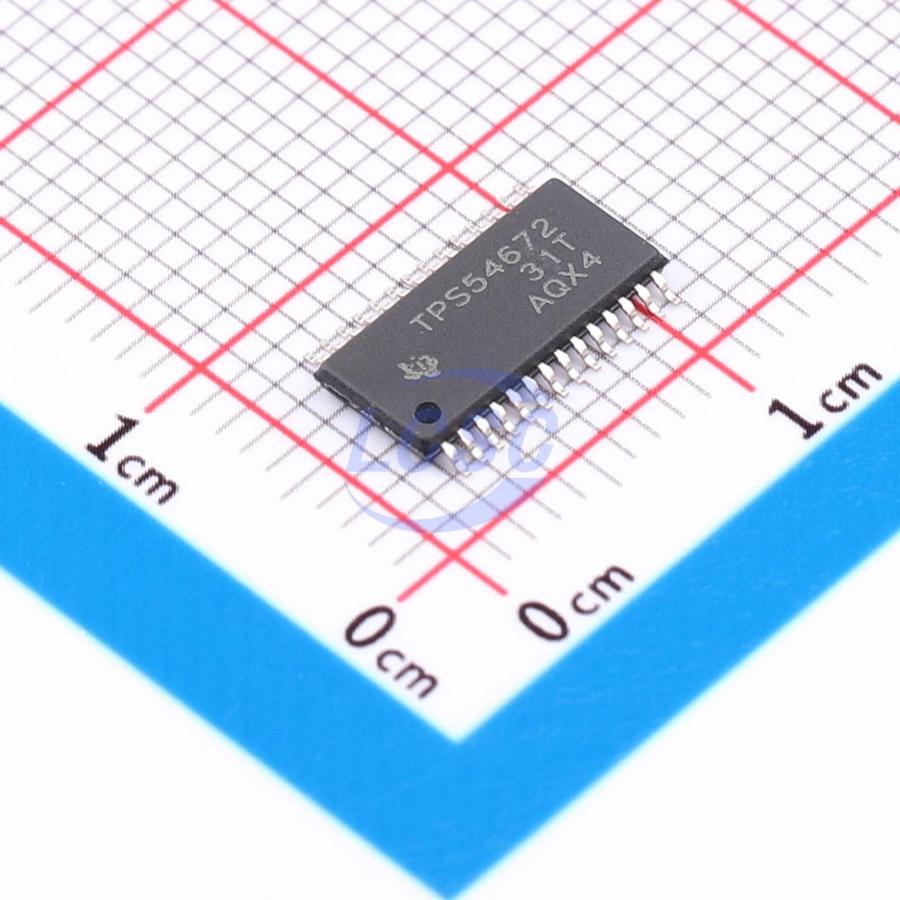

TPS54672PWPR

As a member of the SWIFT family of dc/dc regulators, the TPS54672 active bus termination synchronous PWM converter integrates all required active components. Included on the substrate with the listed features are a true, high performance, voltage error amplifier that enables maximum performance and flexibility in choosing the output filter L and C components; an under-voltagelockout circuit to prevent start-up until the input voltage reaches 3 V; a slow-start control to limit in-rush currents; and a status output to indicate valid operating conditions. The TPS54672 is available in a thermally enhanced 28-pin TSSOP (PWP) PowerPAD package, which eliminates bulky heatsinks. TI provides evaluation modules and the SWIFT designer software tool to aid in quickly achieving high-performance power supply designs to meet aggressive equipment development cycles.

Applications

• DDR Memory Termination Voltage
• Active Termination of GTL and STL High-Speed Logic Families
• DAC Controlled High Current Output Stage
• Precision Point of Load Power Supply

Key features

• Tracks Externally Applied Reference Voltage
• 30-mΩ z 12-A Peak MOSFET Switches for High Efficiency at 6-A Continuous Output
• Source or Sink Current 10% to 90% VIN Output Tracking Range
• PWM Frequency Range: Fixed 350 kHz or Adjustable 280 to 700 kHz
• Load Protected by Peak Current Limit and Thermal Shutdown
• Integrated Solution Reduces Board Area and Component Count
