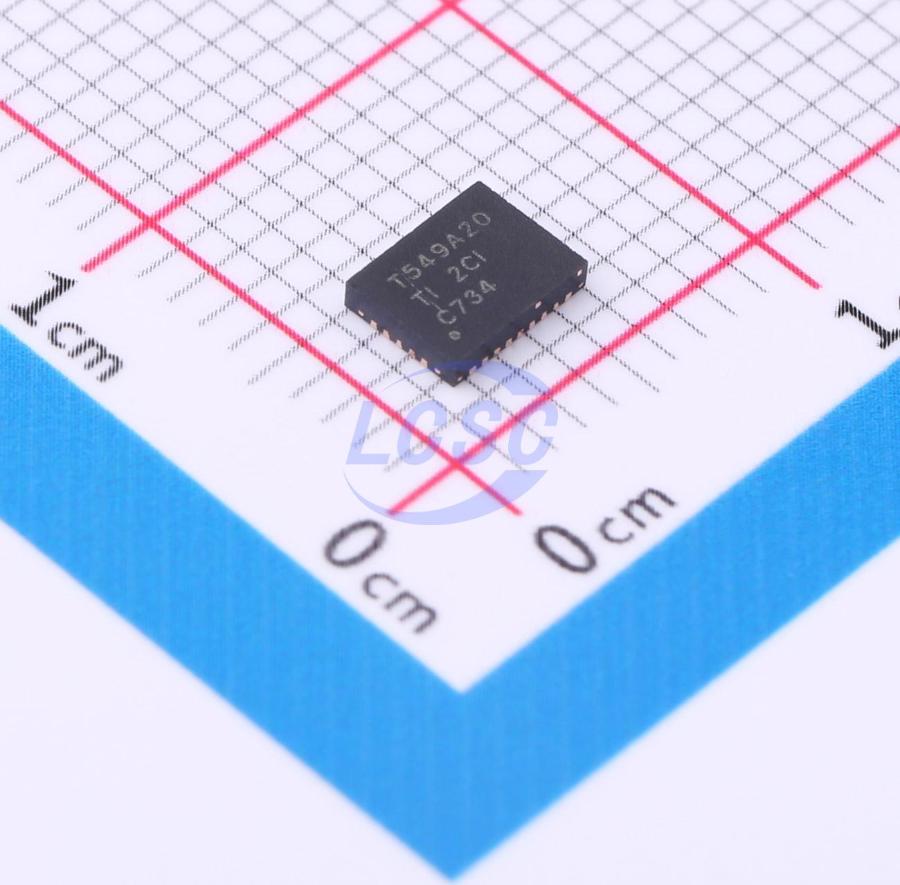

TPS549A20RVER

The TPS549A20 is a compact synchronous buck converter featuring adaptive on-time D-CAP3 control mode. This device simplifies power system designs in space-constrained applications while minimizing external component count. The device integrates high-performance MOSFETs, a precision 0.6V reference, and an integrated boost switch. Key competitive features include: minimal external component count, fast load transient response, automatic skip mode operation, internal soft-start control, and no compensation required. In addition, the device provides fault reporting via PMBus, further simplifying power supply design. Forced continuous conduction mode helps meet the stringent voltage regulation accuracy requirements of high-performance DSP and FPGA applications. The TPS549A20 is available in a 28-pin VQFN-CLIP package and is rated for operation over an ambient temperature range of -40°C to 125°C. The TPS549A20 is a high-efficiency, single-channel, synchronous-buck converter. The device suits low-output voltage point-of-load applications with 15-A or lower output current in computing and similar digital consumer applications. The TPS549A20 features proprietary D-CAP3 mode control combined with adaptive on-time architecture. This combination builds modern low-duty-ratio and ultra-fast load-step-response DC-DC converters

Applications

• Server, cloud computing, storage
• Networking & telecom, point-of-load (POL)
• IPC, factory automation, PLC, test & measurement
• High-performance DSP, FPGA

Key features

• Integrated SWIFT and 4.3mΩ MOSFET supporting 15A continuous IOUT
• Wide conversion input voltage range: 1.5V to 20V (with buffer)
• Output voltage range: 0.6V to 5.5V
• PMBus-supported regulation for: voltage margining and regulation, soft-start time, power-on delay, VDD UVLO level, fault reporting, switching frequency
• All-ceramic output capacitor support
• Reference voltage: 600mV, ±0.5% tolerance (over -40°C to 85°C ambient temperature range)
• D-CAP3 control mode with fast load transient response
• HICCUP overcurrent protection
• Auto-skip Eco-mode for high efficiency under light-load conditions
• FCCM for stringent output ripple and voltage tolerance requirements
• Pre-biased startup capability
• 8 frequency settings selectable via PMBus interface between 200kHz and 1MHz
• 4.5mm x 3.5mm 28-pin VQFN-CLIP package
• Supported by WEBENCH Design Center
