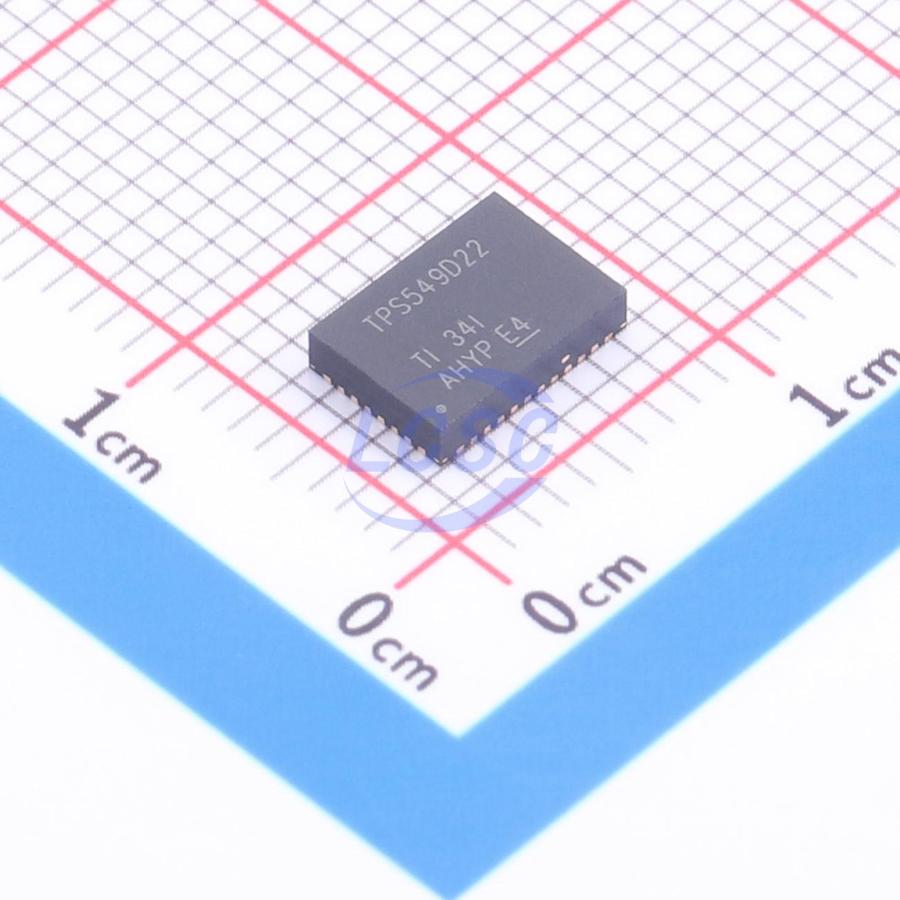

TPS549D22RVFT

Buck Switching Regulator IC Adjustable 0.6V~5.5V 1 Output 40A LQFN-CLIP-40-EP(5x7)

LQFN-CLIP-40-EP(5x7)ROHS3 CompliantActive

SWIFT synchronous buck converter with functions and PMBus

Manufacturer: TI
Manufacturer part #: TPS549D22RVFT
Store part #: C2070880
Package / case: LQFN-CLIP-40-EP(5x7)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

260 in stock

#C2070880

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹1,687.13	₹1,687.13
10+	₹1,540.83	₹15,408.30
30+	₹1,487.94	₹44,638.20
100+	₹1,382.80	₹1,38,280.00

Quantity (min 1)

1 × ₹1,687.13

₹1,687.13

excl. GST

₹1,990.81 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 250 per reel

TPS549D22RVFT

₹1,687.13 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 315kHz~1.25MHz
Function: Step-down type
Number of Outputs: 1
Features: Adjustable current limiting;Cycle-by-cycle current limiting;Protection latch;Adjustable soft-start;Output voltage differential sensing;Built-in LDO regulator;Operating status indication;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~22V
Switch tube (built-in/external): Built-in
Output Current: 40A
Output Voltage: 600mV~5.5V
Quiescent Current: 700uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 250 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.97 g

Overview

The TPS549D22 is a compact single-channel buck converter with adaptive on-time D-CAP3 mode control. It is designed for power supply systems requiring high accuracy, high efficiency, fast transient response, ease of use, minimal external components, and space-constrained environments. The device features fully differential sensing and TI integrated FETs, with a high-side on-resistance of 2.9mΩ and a low-side on-resistance of 1.2mΩ. It also offers 0.5% accuracy and a 0.9V reference voltage, with an ambient temperature range of -40°C to +125°C. Key competitive advantages include minimal external component count, precise load and line regulation, automatic skip or FCCM operating modes, and internal soft-start control.

Applications

Enterprise storage, SSD, NAS
Wireless and wired communication infrastructure
Industrial PC, automation, ATE, PLC, video surveillance
Enterprise servers, switches, routers
ASIC, SoC, FPGA, DSP core and I/O power rails

Key features

Input voltage range (PVIN): 1.5V to 16V
Input bias voltage (VDD) range: 4.5V to 22V
Output voltage range: 0.6V to 5.5V
Integrated 2.9mΩ and 1.2mΩ power MOSFETs, continuous output current 40A
Voltage reference 0.6V to 1.2V (50mV steps) via VSEL pin
±0.5%, 0.9VREF tolerance range: -40°C to +125°C junction temperature
True differential remote sense amplifier
D-CAP3™ control loop with adaptive on-time control, 8 PMBus™ frequencies: 315kHz, 425kHz, 550kHz, 650kHz, 825kHz, 900kHz, 1.025MHz, and 1.125MHz
Temperature-compensated and programmable current limit with RILM and OC clamp
Selectable hiccup or latched OVP or UVP
VDD UVLO external adjustment via precision EN
Pre-bias startup support
Eco-mode™ and FCCM selectable
Comprehensive fault protection and PGOOD
Standard VOUT_COMMAND and VOUT_MARGIN (high and low)
Pin strapping and real-time programming
Fault reporting and warning
NVM backup for selected commands
1MHz PMBus with PEC and SMB_ALRT# support
Create custom designs with TPS549D22 using WEBENCH® Power Designer
