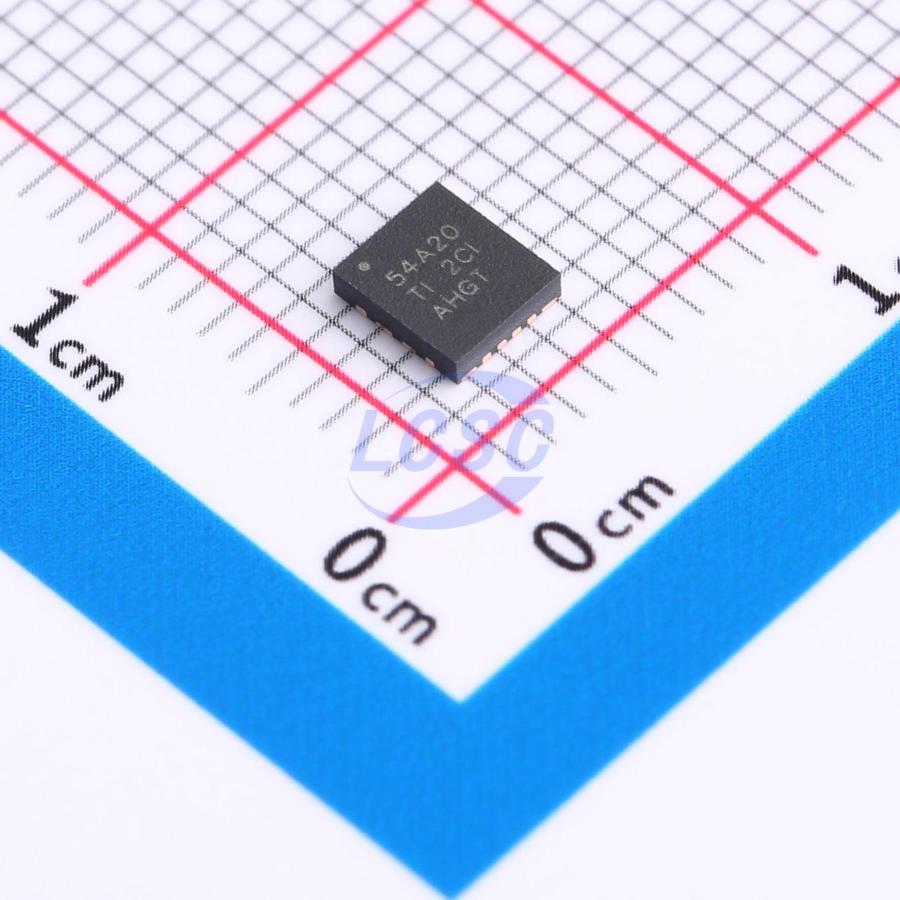

TPS54A20RNJR

TPS54A20 is a dual-phase synchronous series-capacitor buck converter designed for small-size, low-voltage applications with a 12V input voltage rail. This device employs a unique topology that integrates a switched-capacitor circuit with a dual-phase buck converter, offering numerous advantages including automatic current balancing between inductors, reduced switching losses (enabling HF operation), and voltage step-down via series capacitor. Low-value, thin-profile inductors used with the TPS54A20 significantly reduce solution area and height. The device utilizes an adaptive on-time control architecture to deliver fast transient response and accurate voltage regulation at operating frequencies up to 10MHz. Steady-state fixed-frequency operation is maintained by using a PLL to lock the switching signal to a reference oscillator.

Applications

• Telecom, base stations, and communication equipment
• Storage, SSDs, DDR memory, switches, hubs, routers, and other networking equipment
• Low-profile/backplane mounting (height below 2mm)

Key features

• Dual-phase synchronous series capacitor buck converter with automatic inter-phase current balancing
• Single-phase switching frequency: 2MHz to 5MHz
• Minimum on-time: 14ns
• Output voltage range: 0.51V to 2V, feedback reference voltage: ±0.5%
• Input overvoltage lockout for 17V surge protection
• Adjustable current limit with auto-restart (hiccup)
• Synchronization to an external clock
• Fixed frequency in steady state
• Adaptive on-time control
• Internal feedback loop compensation
• Internal gate drivers with external supply option
• LDOEN pin for adjustable input UVLO
• Selectable soft-start time
• Monotonic startup for pre-biased output
• Output power-good indicator (open-drain)
• Output overvoltage/undervoltage protection
