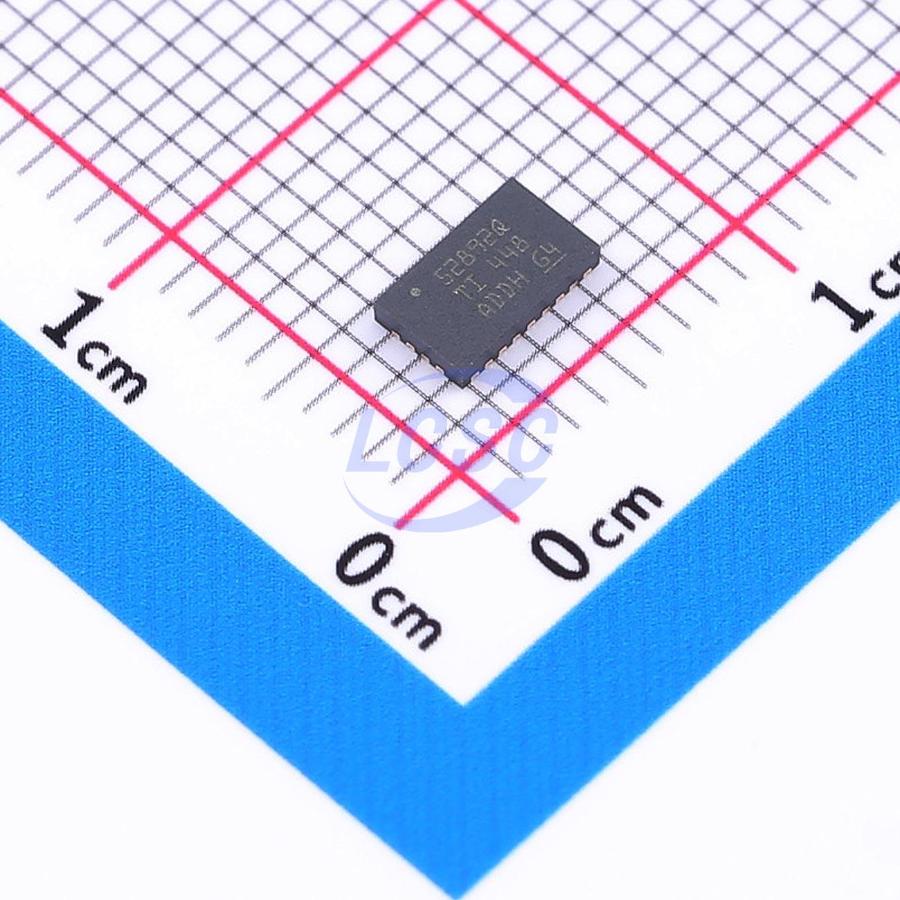

TPS552892QWRYQRQ1

The TPS551892-Q1 is a synchronous buck-boost converter that is optimized for converting battery voltage or adapter voltage into power supply rails. The TPS551892-Q1 integrates four MOSFET switches providing a compact solution for a variety of applications. The TPS551892-Q1 has up to 27V input voltage capability. When working in boost mode, the TPS551892-Q1 can deliver 60W from a 12V input. It is capable of delivering 45W from 9V input voltage. The TPS551892-Q1 employs an average current - mode control scheme. The switching frequency is programmable from 200kHz to 2.2MHz by an external resistor and can be synchronized to an external clock. The TPS551892-Q1 also provides optional spread spectrum to minimize peak EMI. The TPS551892-Q1 offers output over - voltage protection, average inductor current limit, cycle - by - cycle peak current limit, output short circuit protection. The TPS551892-Q1 also ensures safe operating with optional output current limit and hiccup - mode protection in sustained overload conditions. The TPS551892-Q1 can use a small inductor and small capacitors with high switching frequency. It is available in a 3.0mm×5.0mm QFN package.

Applications

• Advanced driver - assistance system (ADAS)
• Wireless charger
• Automotive infotainment and cluster

Key features

• AEC - Q100 qualified: Device temperature grade 1: -40°C to +125°C ambient operating temperature range
• Wide input and output voltage range Wide input voltage range: 3.0V to 27V (absolute maximum. 42V) Programmable output voltage range: 0.8V to 22V
• ±1% reference voltage accuracy Adjustable output voltage compensation for voltage droop over the cable ±5% accurate output current monitoring
• High efficiency over entire load range 96% efficiency at VIN = 12V, VOUT = 20V and ΔlOUT = 3A Programmable PFM and FPWM mode at light load
• Avoid frequency interference and crosstalk Optional clock synchronization Programmable switching frequency from 200kHz to 2.2MHz
• EMI mitigation
• Optional programmable spread spectrum
• Lead - less package
• Rich protection features Output overvoltage protection
• Hiccup mode for output short - circuit protection
• Thermal shutdown protection 8 A average inductor current limit
• Small solution size Maximum switching frequency up to 2.2MHz 3.0mm×5.0mm HotRod QFN package
