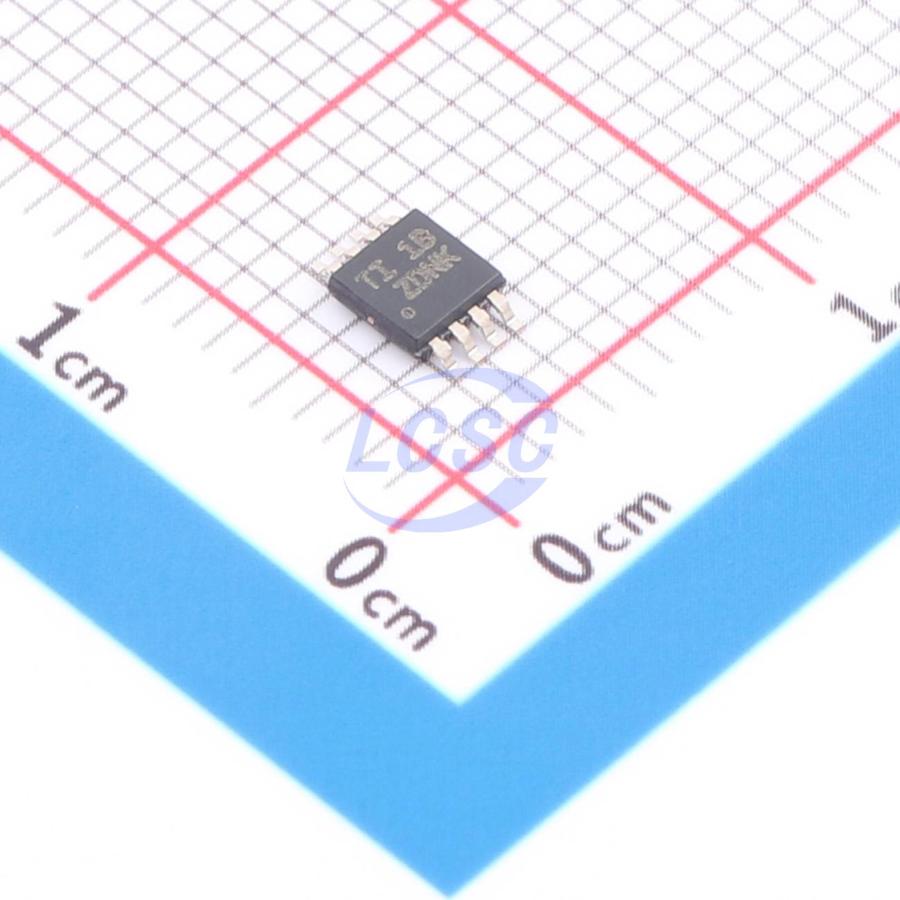

TPS560200QDGKTQ1

TPS560200-Q1 is a 17V, 500mA, low-Iq adaptive on-time D-CAP2 mode synchronous monolithic buck converter with integrated MOSFETs, available in an easy-to-use 8-pin MSOP package. TPS560200-Q1 helps system designers complete power bus regulator sets for various end equipment with a cost-effective solution requiring fewer components and lower standby current. The device main control loop employs D-CAP2 mode control, achieving fast transient response without external compensation components. Adaptive on-time control enables seamless transition between PWM mode under heavy load conditions and advanced Eco-mode operation under light load conditions. The proprietary circuitry of TPS560200-Q1 also allows it to work with low-ESR output capacitors — such as conductive polymer tantalum solid electrolytic capacitors (POSCAP) and conductive polymer aluminum electrolytic capacitors (SP-CAP) — as well as ultra-low ESR ceramic capacitors. The device operates from an input voltage ranging from 4.5V to 17V. The output voltage is programmable from 0.8V to 6.5V. The device also features a 2ms fixed soft-start time. The device is available in an 8-pin MSOP package.

Applications

• Electric Vehicle (EV) charging stations
• Infotainment systems

Key features

• AEC-Q100 qualified for automotive applications
• Temperature range: Grade 1, -40°C to 125°C
• Human Body Model (HBM) ESD classification level: H2
• Charged Device Model (CDM) ESD classification level: C4B
• Integrated monolithic 0.95Ω high-side and 0.33Ω low-side MOSFETs
• 500mA continuous output current
• Output voltage range: 0.8V to 6.5V
• 0.8V reference voltage with ±1.3% accuracy over temperature
• Advanced auto-skip Eco-mode for high efficiency at light loads
• D-CAP2 mode enables fast transient response with no external compensation
• 600kHz switching frequency
• 2ms internal soft-start
• Safe startup into pre-biased VOUT
• Thermal shutdown
• Operating junction temperature range: -40°C to 125°C
• 8-pin MSOP package
