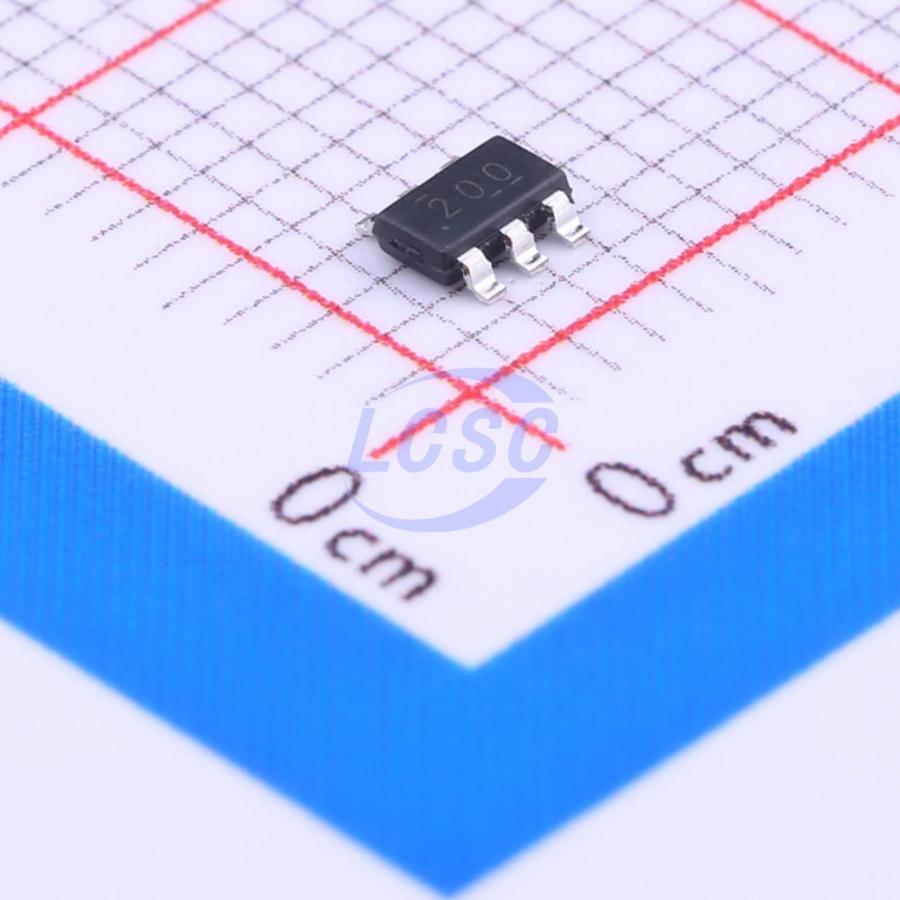

TPS562200DDCR

650kHz Step-down type Adjustable 765mV~7V 2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS

SOT-23-6ROHS3 CompliantActive

4.5V to 17V Input, 2A Synchronous Step-Down Voltage Regulator

Manufacturer: TI
Manufacturer part #: TPS562200DDCR
Store part #: C49757
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,345 in stock

#C49757

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹73.97	₹73.97
10+	₹59.83	₹598.30
30+	₹52.64	₹1,579.20
100+	₹45.68	₹4,568.00
500+	₹41.33	₹20,665.00
1,000+	₹39.16	₹39,160.00

Quantity (min 1)

1 × ₹73.97

₹73.97

excl. GST

₹87.28 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS562200DDCR

₹73.97 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 650kHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~17V
Switch tube (built-in/external): Built-in
Output Voltage: 765mV~7V
Output Current: 2A
Quiescent Current: 330uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.057 g

Overview

The TPS562200 and TPS563200 are simple, easy-to-use, 2 A and 3 A synchronous step-down (buck) converters in SOT-23 package. The devices are optimized to operate with minimum external component counts and also optimized to achieve low standby current. These switch mode power supply (SMPS) devices employ D-CAP2 mode control providing a fast transient response and supporting both low equivalent series resistance (ESR) output capacitors such as specialty polymer and ultra-low ESR ceramic capacitors with no external compensation components. TPS562200 and TPS563200 operate in Advanced Eco-mode, which maintains high efficiency during light load operation. The devices are available in a 6-pin 1.6×2.9mm SOT (DDC) package, and specified from -40°C to 85°C of ambient temperature.

Applications

Digital TV Power Supply
High Definition Blu-ray Disc Players
Networking Home Terminal
Digital Set Top Box (STB)

Key features

D-CAP2™ Mode Control with 650-kHz Switching Frequency
Input Voltage Range: 4.5 V to 17 V
Output Voltage Range: 0.76 V to 7 V
Integrated 122 mΩ and 72 mΩ FETs ('562200)
Integrated 68 mΩ and 39 mΩ FETs ('563200)
Advanced Eco-mode™ Pulse-skip
Low Shutdown Current Less than 10 μA
1% Feedback Voltage Accuracy (25°C)
Startup from Pre-Biased Output Voltage
Cycle-By-Cycle Hiccup Over-current Limit
Non-latch OVP, UVLO and TSD Protections
Fixed Soft Start: 1 ms

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
TPS562209DDCT#C130068TI · SOT-23-6	TI	SOT-23-6	140	₹30.44 · 140 in stock	View
TPS562209DDCR#C411814TI · SOT-23-THIN-6	TI	SOT-23-THIN-6	11,170	₹37.27 · 11,170 in stock	View
TPS563200DDCR#C97253TI · TSOT-23-6	TI	TSOT-23-6	10,056	₹135.74 · 10,056 in stock	View
RT6264BHGJ6F#C7065278RICHTEK · TSOT-23-6	RICHTEK	TSOT-23-6	96	₹36.53 · 96 in stock	View
TPS565201DDCT#C2072027TI · TSOT-23-6	TI	TSOT-23-6	61	₹134.28 · 61 in stock	View
