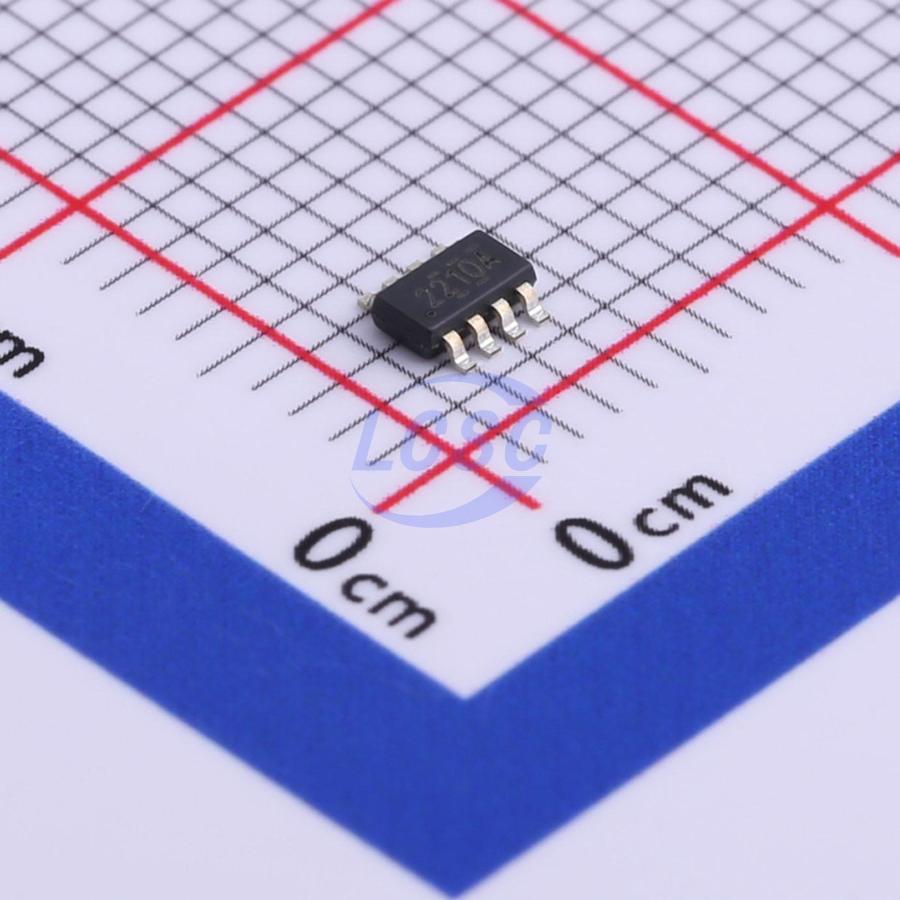

TPS562210ADDFT

650kHz Step-down type Adjustable 2A 760mV~7V TSOT-23-8 Voltage Regulators - DC DC Switching Regulators RoHS

TSOT-23-8ROHS3 CompliantActive

2A and 3A synchronous step-down converters

Manufacturer: TI
Manufacturer part #: TPS562210ADDFT
Store part #: C527562
Package / case: TSOT-23-8
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

27 in stock

#C527562

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹247.68	₹247.68
10+	₹211.14	₹2,111.40
30+	₹188.53	₹5,655.90
250+	₹165.04	₹41,260.00
500+	₹154.61	₹77,305.00
1,000+	₹150.04	₹1,50,040.00

Quantity (min 1)

1 × ₹247.68

₹247.68

excl. GST

₹292.26 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 250 per reel

TPS562210ADDFT

₹247.68 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 650kHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Adjustable soft-start;Operating status indication;Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~17V
Switch tube (built-in/external): Built-in
Output Current: 2A
Output Voltage: 760mV~7V
Quiescent Current: 190uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 250 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.09 g

Overview

The TPS562210A and TPS563210A are simple, easy-to-use, 2-A, 3-A synchronous step-down converters in 8 pin SOT-23 package. The devices are optimized to operate with minimum external component counts and optimized to achieve low standby current. These switch mode power supply (SMPS) devices employ D-CAP2™ mode control providing a fast transient response and supporting both low equivalent series resistance (ESR) output capacitors such as specialty polymer and ultra-low ESR ceramic capacitors with no external compensation components. The devices operate in Advanced Eco-mode™, which maintains high efficiency during light load operation. The TPS562210A and TPS563210A are available in a 8-pin 1.6 × 2.9 (mm) SOT (DDF) package, and specified from -40°C to 85°C of ambient temperature.

Applications

Digital TV Power Supply
High Definition Blu-ray Disc Players
Networking Home Terminal
Digital Set Top Box (STB)

Key features

TPS562210A: 2-A Converter With Integrated 133-mΩ and 80-mΩ FETs
TPS563210A: 3-A Converter With Integrated 68-mΩ and 39-mΩ FETs
D-CAP2™ Mode Control for Fast Transient Response
Advanced Eco-mode™ Pulse-skip
Input Voltage Range: 4.5 V to 17 V
Output Voltage Range: 0.76 V to 7 V
650-kHz Switching Frequency
Low Shutdown Current Less than 10 μA
1% Feedback Voltage Accuracy (25°C)
Startup from Pre-Biased Output Voltage
Cycle By Cycle Over-current Limit
Hiccup-mode Under Voltage Protection
Non-latch OVP, UVLO and TSD Protections
Adjustable Soft Start
Power Good Output

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
TPS562210ADDFR#C527687TI · TSOT-23-8	TI	TSOT-23-8	4,090	₹26.08 · 4,090 in stock	View
TPS562219ADDFT#C2071013TI · TSOT-23-8	TI	TSOT-23-8	119	₹139.25 · 119 in stock	View
TPS562219ADDFR#C2071046TI · TSOT-23-8	TI	TSOT-23-8	1,595	₹49.39 · 1,595 in stock	View
TPS562219DDFR#C2888174TI · TSOT-23-8	TI	TSOT-23-8	80	₹93.99 · 80 in stock	View
TPS562210DDFR#C473371TI · TSOT-23-8	TI	TSOT-23-8	700	₹28.64 · 700 in stock	View
