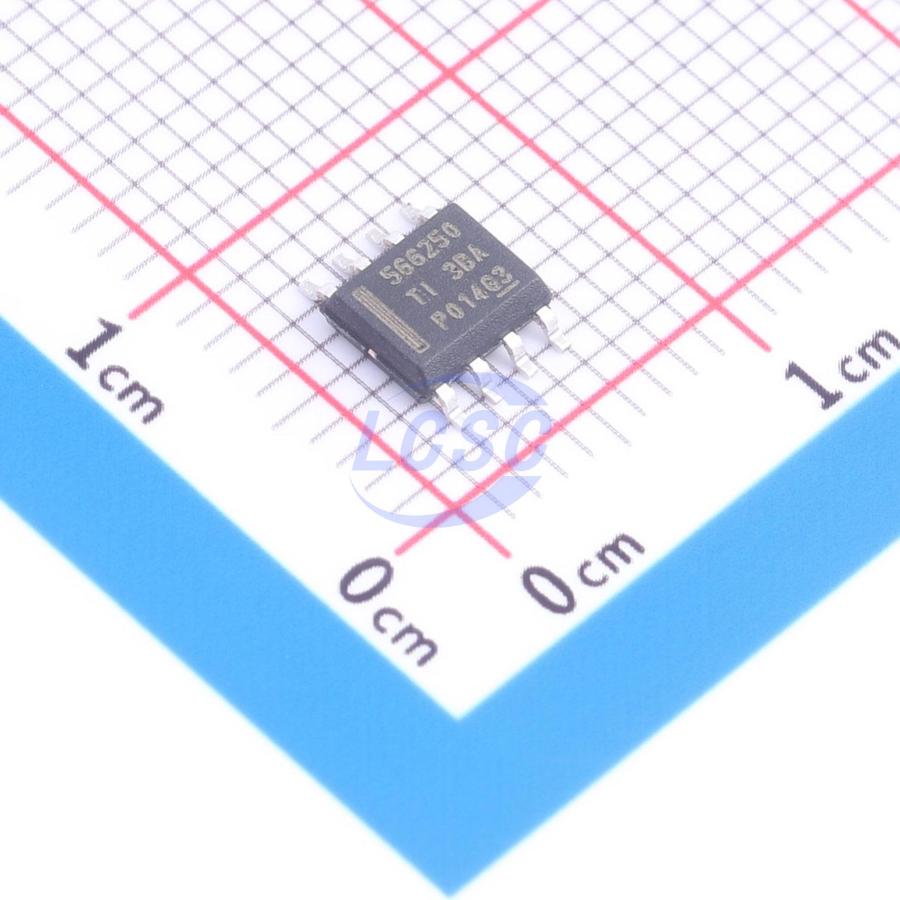

TPS566250DDAR

650kHz Step-down type Adjustable 600mV~1.87V 6A SO-8 Voltage Regulators - DC DC Switching Regulators RoHS

SO-8ROHS3 CompliantActive

Manufacturer: TI
Manufacturer part #: TPS566250DDAR
Store part #: C2073209
Package / case: SO-8
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C2073209

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹455.10	₹455.10
10+	₹444.48	₹4,444.80
30+	₹437.54	₹13,126.20
100+	₹430.39	₹43,039.00

Quantity (min 1)

1 × ₹455.10

₹455.10

excl. GST

₹537.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

TPS566250DDAR

₹455.10 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 650kHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Dynamic voltage scaling;Operating status indication;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~17V
Switch tube (built-in/external): Built-in
Output Voltage: 600mV~1.87V
Output Current: 6A
Quiescent Current: 450uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.87 g

Overview

TPS566250 is a synchronous buck converter that helps system designers implement a complete set of end-equipment power bus regulators through a cost-effective, low component count, low standby current solution. After initial power-up, the output voltage can be changed by sending codes to the IC via an I²C-compatible VID control bus. The TPS566250 main control loop uses D-CAP2™ mode control, enabling fast transient response without external compensation components. Adaptive on-time control allows the device to seamlessly transition between PWM mode under heavy load conditions and Advanced Eco-mode™ operation under light load conditions. Advanced Eco-mode™ enables the TPS566250 to maintain high efficiency under light load conditions. The TPS566250 is compatible with both low-ESR output capacitors such as POSCAP or SP-CAP, and ultra-low-ESR ceramic capacitors. The device provides on-chip overcurrent, UVLO, and thermal shutdown protection.

Applications

Media processors for consumer applications: digital TV, set-top boxes
System-on-chip power supply
High-density power distribution systems

Key features

Integrated FETs optimized for low duty cycle applications — 44mΩ (high-side) and 23mΩ (low-side)
Output voltage range: 0.6V to 1.87V (feedback voltage step: 5.5mV)
VID control with multi-byte interface, supporting readback functionality
±1% output voltage accuracy via VID control at 25°C (12V VIN/1.1V VOUT)
D-CAP2™ control mode
Advanced Eco-mode™ for high efficiency and low output voltage ripple at light load
650kHz switching frequency
Fixed soft-start time: 1ms
Monotonic pre-bias soft-start
Hiccup timer for overload protection
