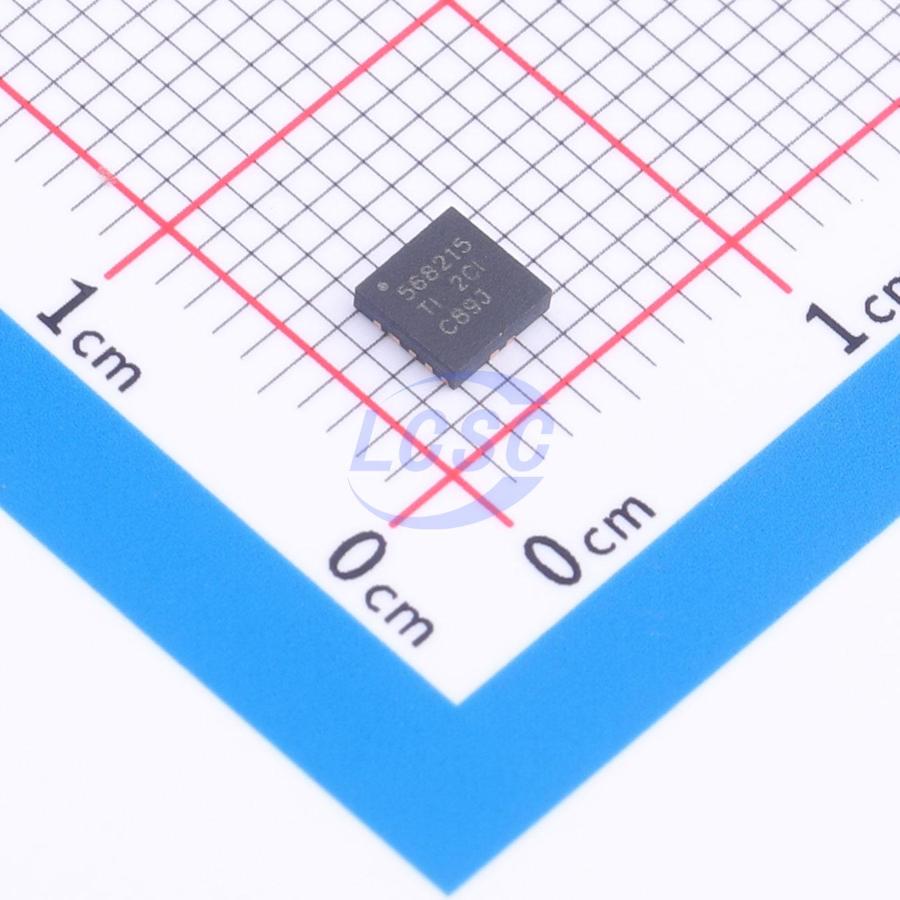

TPS568215RNNT

The TPS568215 is a monolithic 8A synchronous buck converter featuring adaptive on-time D-CAP3™ control mode. The device integrates low RDS(on) power MOSFETs, offering ease of use and high efficiency with minimal external components, making it ideal for space-constrained power systems. Key features include a highly accurate reference voltage, fast load transient response, automatic skip mode for improved light-load efficiency, adjustable current limit, and no external compensation required. Forced continuous conduction mode helps meet the stringent voltage regulation accuracy requirements of high-performance DSP and FPGA applications. The TPS568215 is available in a thermally enhanced 18-pin HotRod™ QFN package, rated for operation over a junction temperature range of -40°C to 150°C. The TPS568215 is pin-compatible with the TPS56C215, providing design flexibility to select solutions in the same package across a 6A to 12A range.

Applications

• Servers and storage
• Set-top boxes and high-end digital television (DTV)
• Networking and telecommunications, point-of-load (POL)
• IPC and factory automation

Key features

• Integrated 19mΩ and 9.4mΩ MOSFETs
• Selectable FSW: 400kHz, 800kHz, and 1.2MHz
• Adjustable current limit setting with hiccup restart
• 0.6V ±1% reference voltage over full temperature range
• 5V external bias option for improved efficiency
• D-CAP3™ control mode for fast transient response
• Selectable FCCM for precision output voltage ripple or Auto-skip Eco-mode™ for high light-load efficiency
• 0.6V to 5.5V output voltage range
• Ceramic output capacitor support
• Monotonic startup into pre-biased output
• Adjustable soft-start with 1ms default soft-start time
• -40°C to 150°C operating junction temperature
• Small 3.5mm x 3.5mm HotRod™ QFN package
• Supported by WEBENCH Design Center
