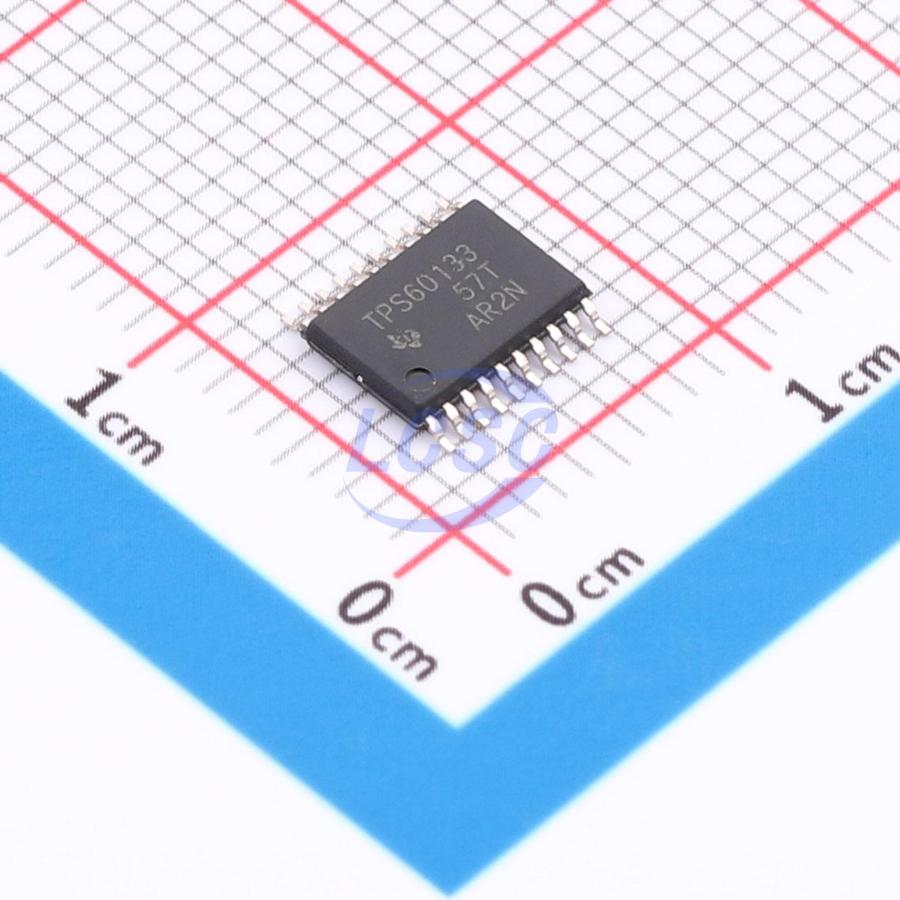

TPS60133PWPR

The TPS6013x step-up, regulated charge pump devices generate a 5-V ±4% output voltage from a 2.7-V to 5.4-V input voltage (three alkaline, NiCd, or NiMH batteries or one Lithium or Lilon battery). The output current is 300 mA for the TPS60130 and TPS60131, and 150 mA for the TPS60132 and TPS60133 devices, all from a 3-V input. Only four external capacitors are required to build a complete high efficiency dc/dc charge pump converter. To achieve the high efficiency over a wide input voltage range, the charge pump automatically selects between a 1.5× or doubler conversion mode. From a 3-V input, all ICs can start with full load current.

Applications

• Battery-Powered Applications
• Three Battery Cells to 5-V Conversion or Point-of-Use 3.3-V to 5-V Conversion
• Lilon Battery to 5-V Conversion
• Portable Instruments
• Battery-Powered Microprocessor Systems
• Backup-Battery Boost Converters
• PDA’s, Organizers, Laptops
• Handheld Instrumentation
• Medical Instruments (for example, Glucose Meters)
• PCMCIA and 5-V Smart Card Supply

Key features

• Up to 90% Efficiency From 2.7-V to 5.4-V Input Voltage Range Because of Special Switching Topology
• Up to 300-mA Output Current (TPS60130 and TPS60131)
• No Inductors Required, Low EMI
• Regulated 5-V ±4% Output
• Only Four External Components Required
• 60-μA Quiescent Supply Current
• 0.05-μA Shutdown Current
• Load Disconnected in Shutdown
• Thermally-Enhanced PowerPAD Package
