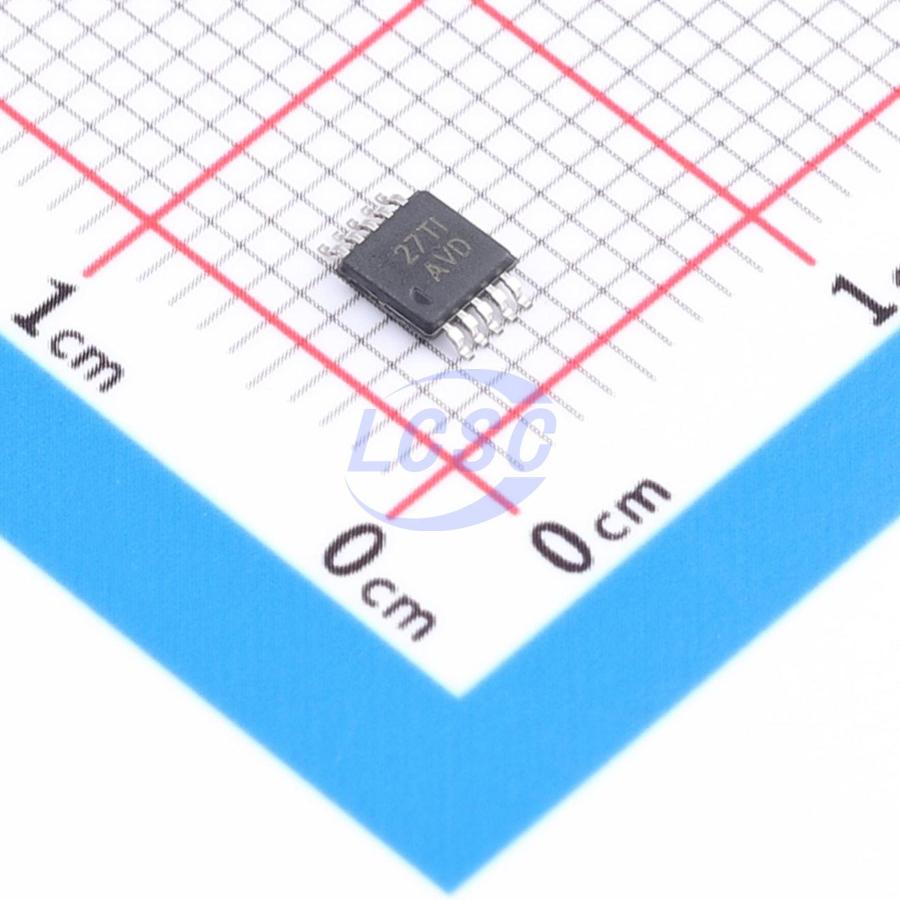

TPS60502DGSR
Step-down 1.2MHz 250mA 1.8V VSSOP-10-0.5mm Voltage Regulators - DC DC Switching Regulators RoHS
VSSOP-10-0.5mmROHS3 CompliantActive
- Manufacturer
- TI
- Manufacturer part #
- TPS60502DGSR
- Store part #
- C2071093
- Package / case
- VSSOP-10-0.5mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9 in stock
#C2071093
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹225.32 | ₹225.32 |
| 10+ | ₹219.54 | ₹2,195.40 |
| 30+ | ₹215.68 | ₹6,470.40 |
| 100+ | ₹212.04 | ₹21,204.00 |
1 × ₹225.32
₹225.32
excl. GST
₹265.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TPS60502DGSR
₹225.32 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Function
- Step-down
- Frequency - Switching
- 1.2MHz
- Features
- Soft-start;Load disconnect;Overcurrent Protection;Charge pump / inverting topology switching
- Operating Voltage
- 1.8V~6.5V
- Output Current
- 250mA
- Output Voltage
- 1.8V
- Energy Efficiency
- 90%
- Quiescent Current
- 40uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.41 g
Overview
The TPS6050x devices are a family of switched capacitor voltage converters, designed specifically for space-critical battery-powered applications. The TPS6050x step-down charge pumps generate a regulated, fixed 3.3-V, 1.8-V, 1.5-V, or adjustable output voltage. Only four small ceramic capacitors are required to build a complete high-efficiency DC–DC charge pump converter. To achieve the high efficiency over a wide input voltage range, the charge pump automatically selects between three different conversion modes. The output can deliver a maximum of 250-mA output current. The power good function supervises the output voltage and goes high when the output voltage rises to 97% of the nominal value. The TPS6050x devices come in a micro-small 10-pin VSSOP package.
Applications
- Mobile Phones
- Portable Instruments
- Internet Audio Player
- PC Peripherals
- USB Powered Applications
Key features
- Wide Input Voltage Range From 1.8 V to 6.5 V
- Regulated 3.3-V, 1.8-V, 1.5-V, or Adjustable Output Voltage
- Up to 250-mA Output Current
- Up to 90% Efficiency
- Output Voltage Tolerance 3% Over Line, Load, and Temperature Variation
- Device Quiescent Current Less Than 40 μA
- Output Voltage Supervisor Included (Power Good)
- Internal Soft Start
- Load Isolated From Battery During Shutdown
- Overtemperature and Overcurrent Protected
- Micro-Small 10-Pin VSSOP Package
- EVM Available, TPS60500EVM-193
