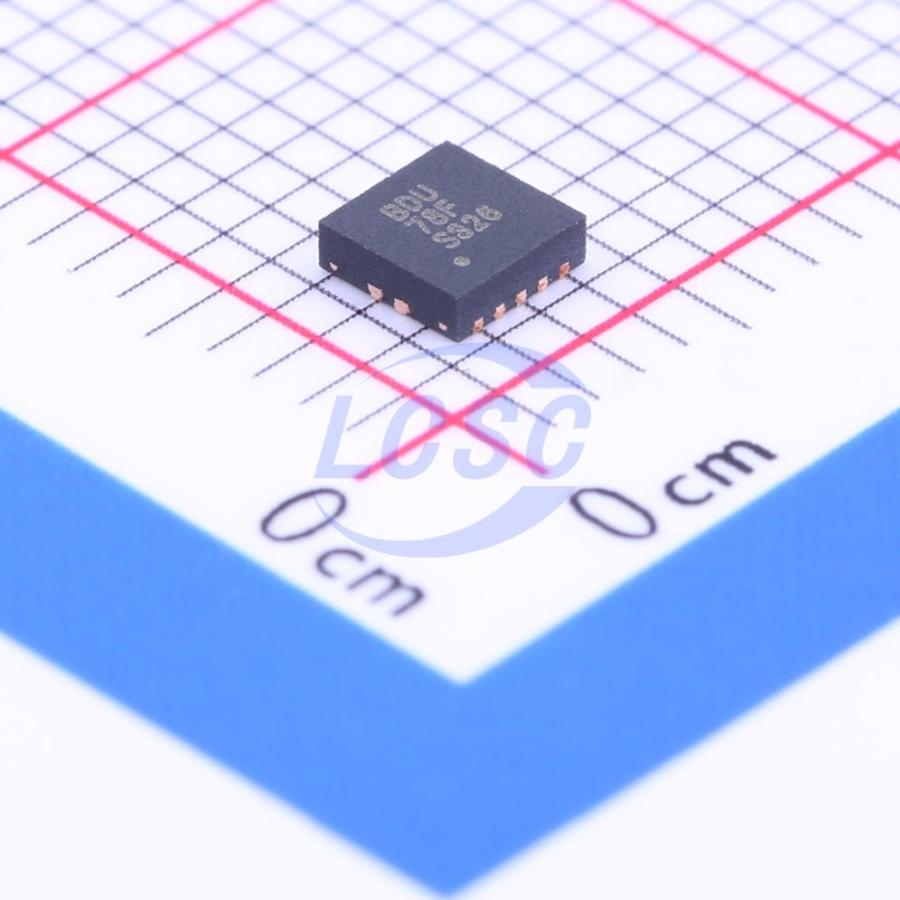

TPS61027DRCR

600kHz Boost Fixed 5V VSON-10-EP(3x3) Voltage Regulators - DC DC Switching Regulators RoHS

VSON-10-EP(3x3)ROHS3 CompliantActive

96% Efficient Synchronous Boost Converter

Manufacturer: TI
Manufacturer part #: TPS61027DRCR
Store part #: C80258
Package / case: VSON-10-EP(3x3)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,032 in stock

#C80258

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
1+	₹258.10	₹258.10
10+	₹219.21	₹2,192.10
30+	₹197.92	₹5,937.60
100+	₹173.80	₹17,380.00
500+	₹143.18	₹71,590.00
1,000+	₹138.17	₹1,38,170.00

Quantity (min 1)

1 × ₹258.10

₹258.10

excl. GST

₹304.56 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS61027DRCR

₹258.10 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 600kHz
Function: Boost
Number of Outputs: 1
Features: Light load efficient mode;Load disconnect;Overcurrent Protection
Output Type: Fixed
Topology: Boost
Operating Voltage: 900mV~6.5V
Switch tube (built-in/external): Built-in
Output Voltage: 5V
Quiescent Current: 25uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.18 g

Overview

The TPS6102x family of devices provide a power supply solution for products powered by either a onecell, two-cell, or three-cell alkaline, NiCd or NiMH, or one-cell Li-Ion or Li-polymer battery. Output currents can go as high as 200 mA while using a single-cell alkaline battery, and discharge it down to 0.9 V. The device can also be used for generating 5 V at 500 mA from a 3.3-V rail or a Li-Ion battery. The boost converter is based on a fixed-frequency, pulse width modulation (PWM) controller using a synchronous rectifier to obtain maximum efficiency. At low load currents the converter enters the power save mode to maintain a high efficiency over a wide-load current range. The Power Save mode can be disabled, forcing the converter to operate at a fixed switching frequency. The maximum peak current in the boost switch is limited to a value of 800 mA, 1500 mA, or 1800 mA depending on the version of the device. The TPS6102x devices keep the output voltage regulated even when the input voltage exceeds the nominal output voltage. The output voltage can be programmed by an external resistor divider, or is fixed internally on the chip. The converter can be disabled to minimize battery drain. During shutdown, the load is completely disconnected from the battery. A low-EMI mode is implemented to reduce ringing and, in effect, lower radiated electromagnetic energy when the converter enters the discontinuous conduction mode. The device is packaged in a 10-pin VSON PowerPAD package measuring 3 mm x 3 mm (DRC).

Applications

All One-Cell, Two-Cell, and Three-Cell Alkaline, NiCd or NiMH, or One-Cell Li-Ion or Li-Polymer Battery-Powered Products
Portable Audio Players
PDAs
Cellular Phones
Personal Medical Products
Camera White LED Flash Lights

Key features

96% Efficient Synchronous Boost Converter
Output Voltage Remains Regulated When Input Voltage Exceeds Nominal Output Voltage
Device Quiescent Current: 25 μA (Typ)
Input Voltage Range: 0.9 V to 6.5 V
Fixed and Adjustable Output Voltage Options Up to 5.5 V
Power Save Mode for Improved Efficiency at Low Output Power
Low Battery Comparator
Low EMI-Converter (Integrated Anti-ringing Switch)
Load Disconnect During Shutdown
Overtemperature Protection
Small 3-mm × 3-mm VSON-10 Package
