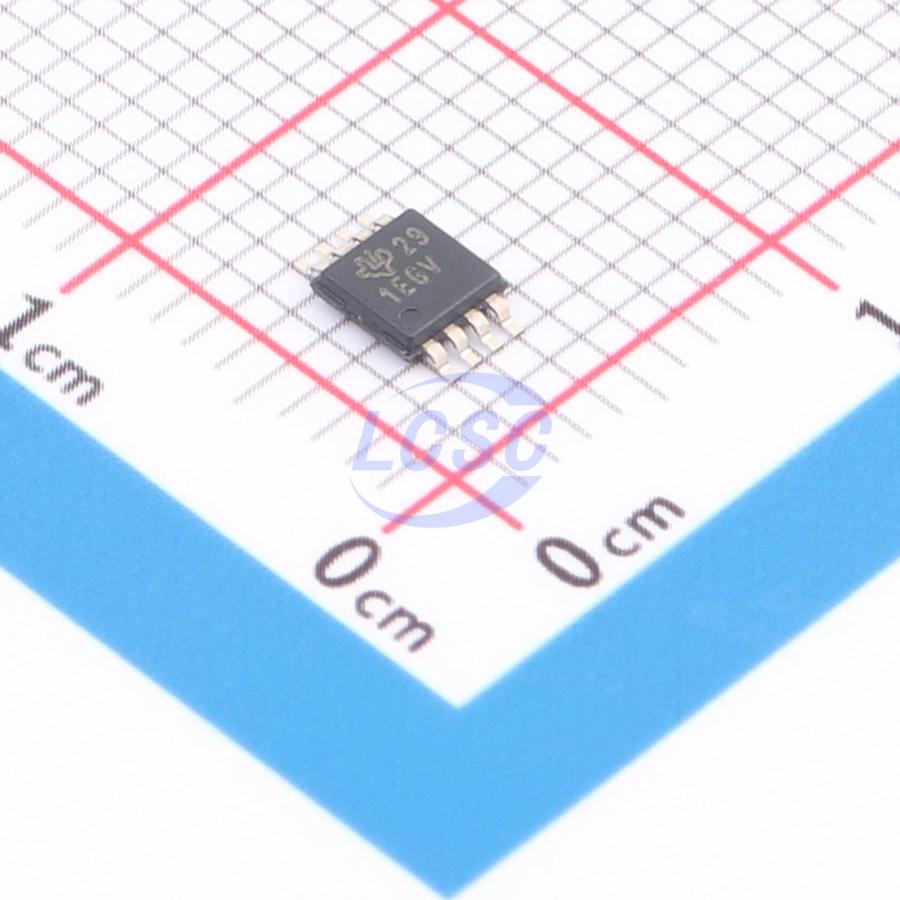

TPS61085ATDGKTQ1
Boost Adjustable 2.8V~18.5V VSSOP-8-0.65mm Voltage Regulators - DC DC Switching Regulators RoHS
VSSOP-8-0.65mmROHS3 CompliantActive
18.5V Boost DC/DC Converter
- Manufacturer
- TI
- Manufacturer part #
- TPS61085ATDGKTQ1
- Store part #
- C2073320
- Package / case
- VSSOP-8-0.65mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C2073320
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹538.75 | ₹538.75 |
| 10+ | ₹525.03 | ₹5,250.30 |
| 30+ | ₹515.81 | ₹15,474.30 |
| 100+ | ₹506.81 | ₹50,681.00 |
1 × ₹538.75
₹538.75
excl. GST
₹635.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 250 per reel
TPS61085ATDGKTQ1
₹538.75 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+105℃@(TA);-40℃~+125℃@(TJ)
- Frequency - Switching
- 650kHz;1.2MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Adjustable soft-start;External compensation
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.3V~6V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 2.8V~18.5V
- Quiescent Current
- 70uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 250 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.78 g
Overview
The TPS61085A-Q1 is a high-frequency, high-efficiency DC/DC boost converter featuring an integrated 2A, 0.13Ω power switch capable of delivering output voltages up to 18.5V. The selectable switching frequency of 650kHz or 1.2MHz allows the use of small external inductors and capacitors while providing fast transient response. External compensation enables optimization of the regulator for specific application conditions. A capacitor connected to a dedicated soft-start pin minimizes inrush current during startup.
Applications
- Automotive infotainment systems
- Instrument clusters
- Head unit radio
- Navigation audio amplifiers
- Automotive body electronics
- Body control modules
- Gateway
- Telematics and emergency call
- Advanced Driver Assistance Systems (ADAS)
Key features
- Compliant with AEC-Q100 for automotive applications: Device Temperature Grade 2: -40°C to +105°C, TA
- 2.3V to 6V input voltage range
- 18.5V boost converter with 2A switch current
- Selectable 650kHz or 1.2MHz switching frequency with adjustable soft-start
- Thermal shutdown
- Undervoltage lockout
- 8-pin VSSOP package
