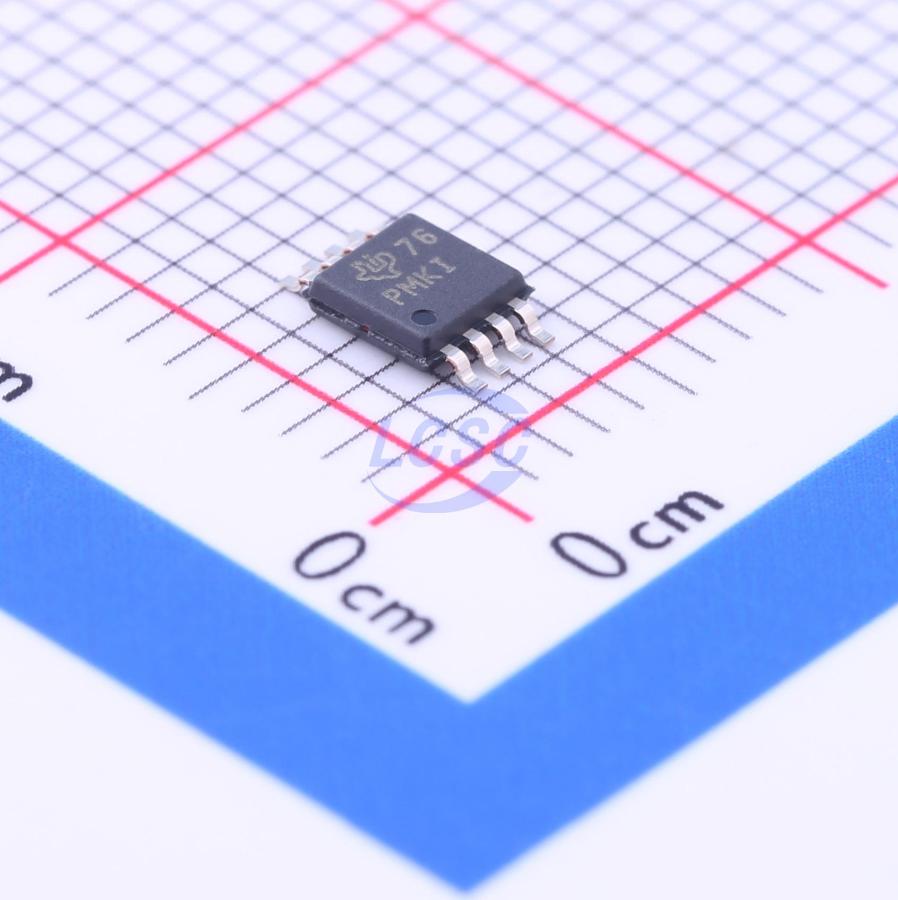

TPS61085DGKR
Boost Adjustable 2.8V~18.5V 2A VSSOP-8-0.65mm Voltage Regulators - DC DC Switching Regulators RoHS
VSSOP-8-0.65mmROHS CompliantActive
650-kHz, 1.2-MHz, 18.5-V Step-Up DC-DC Converter
- Manufacturer
- TI
- Manufacturer part #
- TPS61085DGKR
- Store part #
- C113659
- Package / case
- VSSOP-8-0.65mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,073 in stock
#C113659
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹80.27 | ₹80.27 |
| 10+ | ₹64.83 | ₹648.30 |
| 30+ | ₹58.30 | ₹1,749.00 |
| 100+ | ₹50.04 | ₹5,004.00 |
| 500+ | ₹42.20 | ₹21,100.00 |
| 1,000+ | ₹40.03 | ₹40,030.00 |
1 × ₹80.27
₹80.27
excl. GST
₹94.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TPS61085DGKR
₹80.27 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ);-40℃~+85℃@(TA)
- Frequency - Switching
- 650kHz;1.2MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Adjustable soft-start;External compensation
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.3V~6V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 2.8V~18.5V
- Output Current
- 2A
- Quiescent Current
- 100uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.034 g
Overview
The TPS61085 is a high frequency, high efficiency DC-DC converter with an integrated 2.0-A, 0.13-Ω power switch capable of providing an output voltage up to 18.5 V. The selectable frequency of 650 kHz or 1.2 MHz allows the use of small external inductors and capacitors and provides fast transient response. The external compensation allows optimizing the application for specific conditions. A capacitor connected to the soft-start pin minimizes inrush current at startup.
Applications
- Handheld Devices
- GPS Receivers
- Digital Still Cameras
- Portable Applications
- DSL Modems
- PCMCIA Cards
- TFT LCD Bias Supply
Key features
- 2.3 V to 6 V Input Voltage Range
- 18.5-V Boost Converter With 2.0-A Switch Current
- 650-kHz/1.2-MHz Selectable Switching Frequency
- Adjustable Soft-Start
- Thermal Shutdown
- Undervoltage Lockout
- 8-Pin VSSOP Package
- 8-Pin TSSOP Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS61085ATDGKRQ1#C2071264TI · VSSOP-8-0.65mm | TI | VSSOP-8-0.65mm | 289 | ₹284.47 · 289 in stock | View |
 | LP6230BMSF#C517056LOWPOWER · MSOP-8 | LOWPOWER | MSOP-8 | 23 | ₹62.66 · 23 in stock | View |
 | ADP1613ARMZ-R7#C132279ADI · MSOP-8 | ADI | MSOP-8 | 1,041 | ₹174.90 · 1,041 in stock | View |
| TPS61085DGKT#C2071064TI · VSSOP-8-0.65mm | TI | VSSOP-8-0.65mm | On request | ₹97.36 · 0 in stock | View | |
| TPS61085TDGKR#C2865478TI · VSSOP-8-0.65mm | TI | VSSOP-8-0.65mm | On request | ₹523.71 · 0 in stock | View | |
