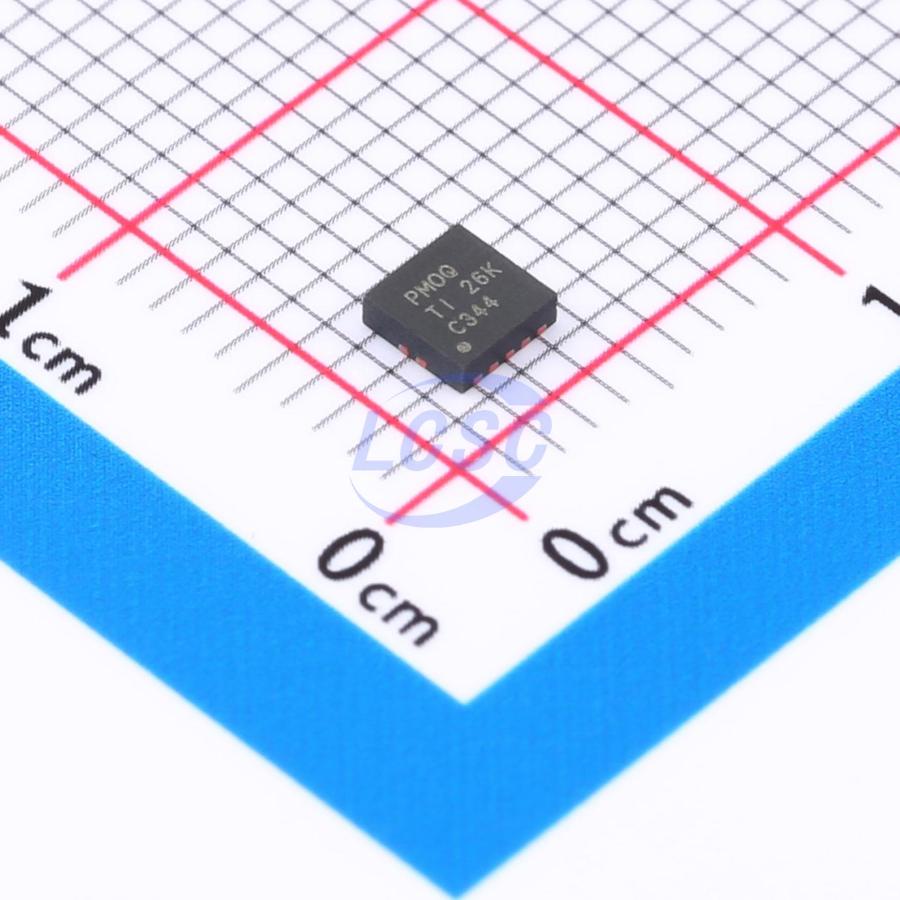

TPS61087QDRCRQ1
Boost Switching Regulator IC Adjustable 3V~18.5V 1 Output 3.2A VSON-10(3x3)
VSON-10(3x3)ROHS3 CompliantActive
18.5V Boost DC-DC Converter
- Manufacturer
- TI
- Manufacturer part #
- TPS61087QDRCRQ1
- Store part #
- C544552
- Package / case
- VSON-10(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
174 in stock
#C544552
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹138.77 | ₹138.77 |
| 10+ | ₹124.02 | ₹1,240.20 |
| 30+ | ₹109.93 | ₹3,297.90 |
| 100+ | ₹99.53 | ₹9,953.00 |
| 500+ | ₹95.40 | ₹47,700.00 |
| 1,000+ | ₹93.23 | ₹93,230.00 |
1 × ₹138.77
₹138.77
excl. GST
₹163.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS61087QDRCRQ1
₹138.77 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TA)
- Frequency - Switching
- 650kHz;1.2MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Adjustable soft-start;External compensation
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.5V~6V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 3V~18.5V
- Output Current
- 3.2A
- Quiescent Current
- 100uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.058 g
Overview
The TPS61087-Q1 is a high-frequency, high-efficiency DC-to-DC converter featuring an integrated 3.2A, 0.13Ω power switch capable of delivering output voltages up to 18.5V. The selectable switching frequency of 650kHz or 1.2MHz allows the use of small external inductors and capacitors while providing fast transient response. External compensation enables optimization for specific application conditions. A capacitor connected to the soft-start pin significantly reduces inrush current during startup.
Key features
- Automotive-grade compliant
- 2.5V to 6V input voltage range
- 18.5V boost converter with 3.2A switch current
- 650kHz/1.2MHz selectable switching frequency
- Adjustable soft-start
- Thermal shutdown
- Undervoltage lockout
- 10-pin QFN package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS61087DRCR#C112172TI · VSON-10-EP(3x3) | TI | VSON-10-EP(3x3) | 2,981 | ₹164.78 · 2,981 in stock | View |
| TPS61087DSCT#C2071532TI · WSON-10-EP(3x3) | TI | WSON-10-EP(3x3) | On request | ₹498.53 · 0 in stock | View | |
| TPS61087QWDRCRQ1#C2071462TI · VSON-10-EP(3x3) | TI | VSON-10-EP(3x3) | 41 | ₹180.13 · 41 in stock | View | |
| TPS61087DRCT#C544946TI · VSON-10-EP(3x3) | TI | VSON-10-EP(3x3) | 30 | ₹415.01 · 30 in stock | View | |
 | TPS61087DSCR#C2071336TI · WSON-10-EP(3x3) | TI | WSON-10-EP(3x3) | On request | ₹219.27 · 0 in stock | View |
