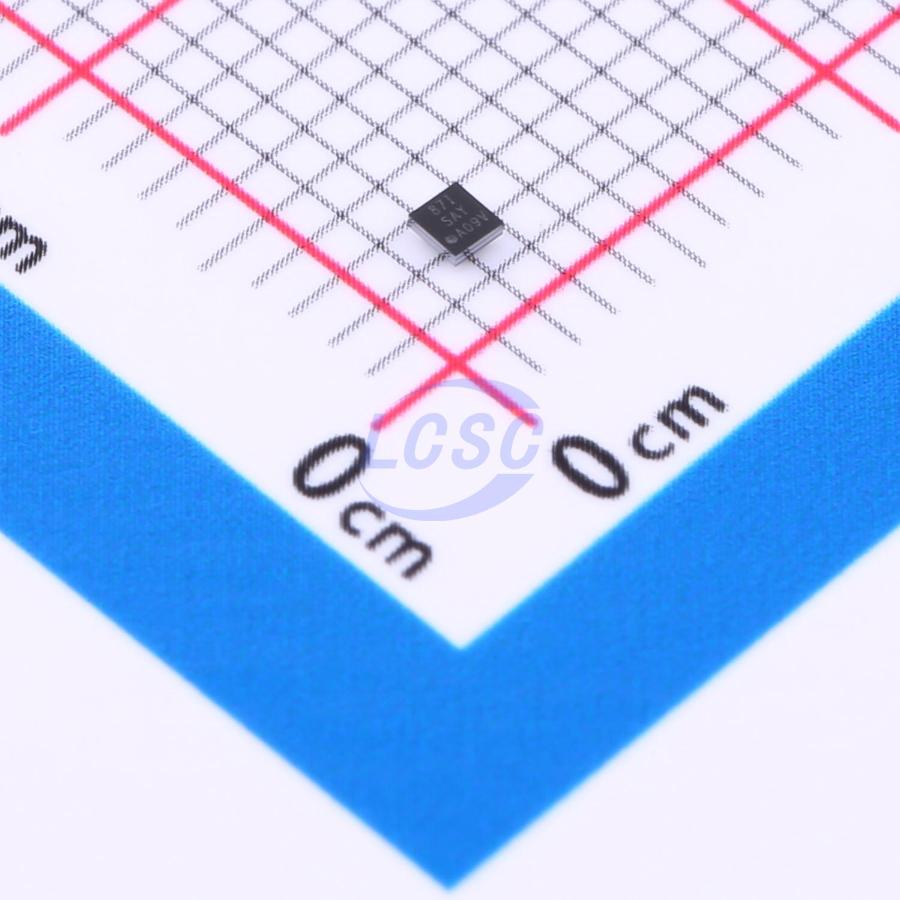

TPS61259YFFR

The TPS6125x devices provide a power supply solution for battery-powered portable applications. Designed for low-power applications, the TPS6125x supports load currents up to 800mA from a single battery (with a charge voltage as low as 2.65V) and allows the use of low-cost chip inductors and capacitors. The wide input voltage range of 2.3V to 5.5V enables the device to support applications powered by lithium-ion batteries with an extended voltage range. Different fixed output voltage versions support voltages ranging from 3.15V to 5.0V. The TPS6125x operates at a fixed 3.5 MHz switching frequency and enters power-save mode at light load currents to maintain high efficiency across the full load current range. PFM mode reduces quiescent current to 36μA (typical) during light-load operation, extending battery life. In addition, the TPS6125x can maintain its bias output at the input voltage level. In this mode, the synchronous rectifier current is limited, allowing external loads (e.g., audio amplifiers) to be powered from a current-limited supply. In this mode, quiescent current is reduced to 22μA. Shutdown mode input current is less than 1μA (typical), significantly extending battery life. With a minimal external component count, the TPS6125x offers a very compact solution size. Small inductors and input capacitors are supported to achieve a small solution footprint. During shutdown, the load is completely disconnected from the battery.

Applications

• Mobile phones, smartphones
• Mono and stereo APA applications
• USB charging ports (5V)

Key features

• 93% efficiency at 3.5MHz switching frequency
• 22μA quiescent current in standby mode
• 36μA quiescent current in normal operation
• Wide VIN range: 2.3V to 5.5V
• VIN ≥ VOUT operation: IOUT ≥ 800mA with VOUT = 4.5V, VIN ≥ 2.65V
• IOUT ≥ 1000mA with VOUT = 5.0V, VIN ≥ 3.3V
• IOUT ≥ 1500mA (peak) with VOUT = 5.0V, VIN ≥ 3.3V
• DC output voltage total accuracy ±2%
• Light-load pulse frequency modulation (PFM) mode
• Selectable standby mode or true load disconnect during shutdown
• Thermal shutdown and overload protection
• Only three SMT external components required
• Total solution size < 25mm²
• 9-pin NanoFree™ (CSP) package
