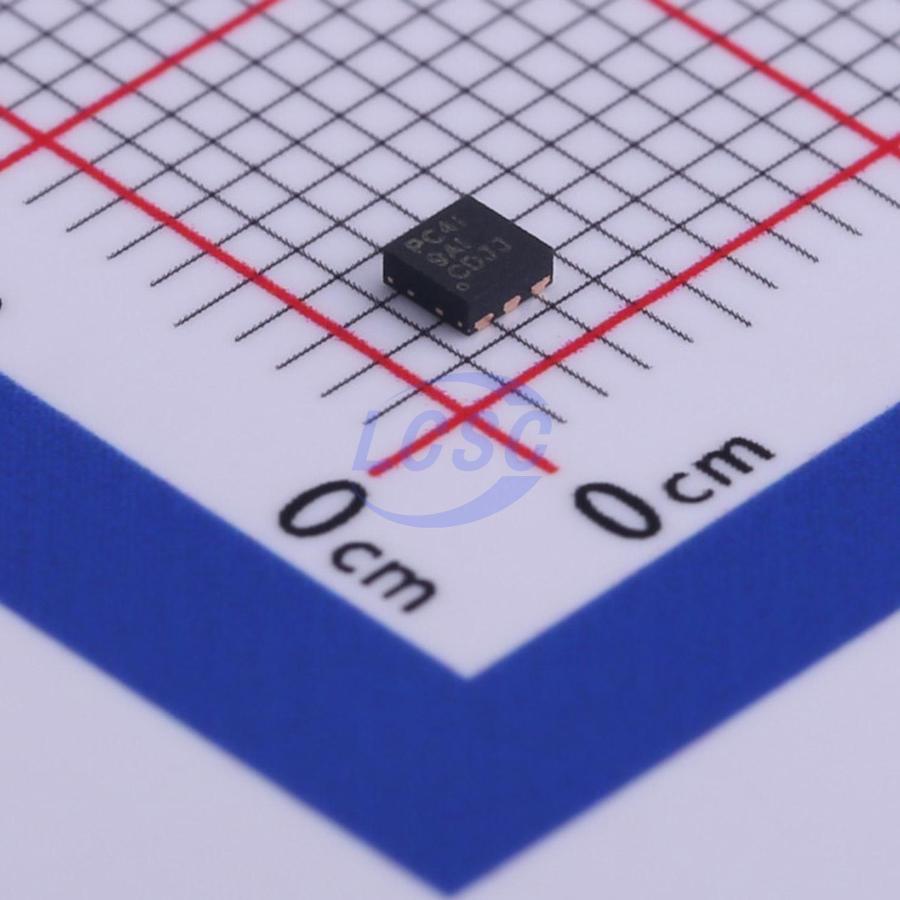

TPS61291DRVR
Boost Adjustable 700mA WSON-6-EP(2x2) Voltage Regulators - DC DC Switching Regulators RoHS
WSON-6-EP(2x2)ROHS3 CompliantActive
Low IQ Boost Converter with Bypass Operation
- Manufacturer
- TI
- Manufacturer part #
- TPS61291DRVR
- Store part #
- C464809
- Package / case
- WSON-6-EP(2x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,909 in stock
#C464809
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹146.40 | ₹146.40 |
| 10+ | ₹122.03 | ₹1,220.30 |
| 30+ | ₹109.86 | ₹3,295.80 |
| 100+ | ₹97.89 | ₹9,789.00 |
| 500+ | ₹87.68 | ₹43,840.00 |
| 1,000+ | ₹83.97 | ₹83,970.00 |
1 × ₹146.40
₹146.40
excl. GST
₹172.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS61291DRVR
₹146.40 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Function
- Boost
- Number of Outputs
- 1
- Features
- Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 900mV~5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 2.5V;3V;3.3V
- Output Current
- 700mA
- Quiescent Current
- 5.7uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.063 g
Overview
The TPS61291 is a boost converter with pin selectable output voltages and an integrated bypass mode. In bypass operation, the device provides a direct path from the input to the system and allows a low power micro controller (MCU) such as the MSP430 to operate directly from a single 3V Li-MnO2 battery or dual alkaline battery cells.
Applications
- Metering (Gas, Water, Smart Meters)
- Remote Controls
- Home Security / Home Automation
- Single 3V Li-MnO2 or 2x1.5V Alkaline Cell Powered Applications
Key features
- Input Voltage Range 0.9V to 5V
- Startup Voltage 1.5V at 20mA Load
- Pin Selectable Output Voltages: 3.3V, 3V, 2.5V
- 15nA typical Quiescent Current in Bypass Mode
- 5.7μA typical Quiescent Current in Boost Mode
- Bypass Switch from VIN to VOUT, ΔIout>200mA at 3.3V VOUT, VIN=1.8V
- Internal Feedback Divider Disconnect (Bypass Mode)
- Controlled Bypass Transition Prevents Reverse Current into Battery
- Power-Save Mode at Light Loads
- Overtemperature Protection
- Redundant Overvoltage Protection
- Small 2mm x 2mm SON 6-pin package
