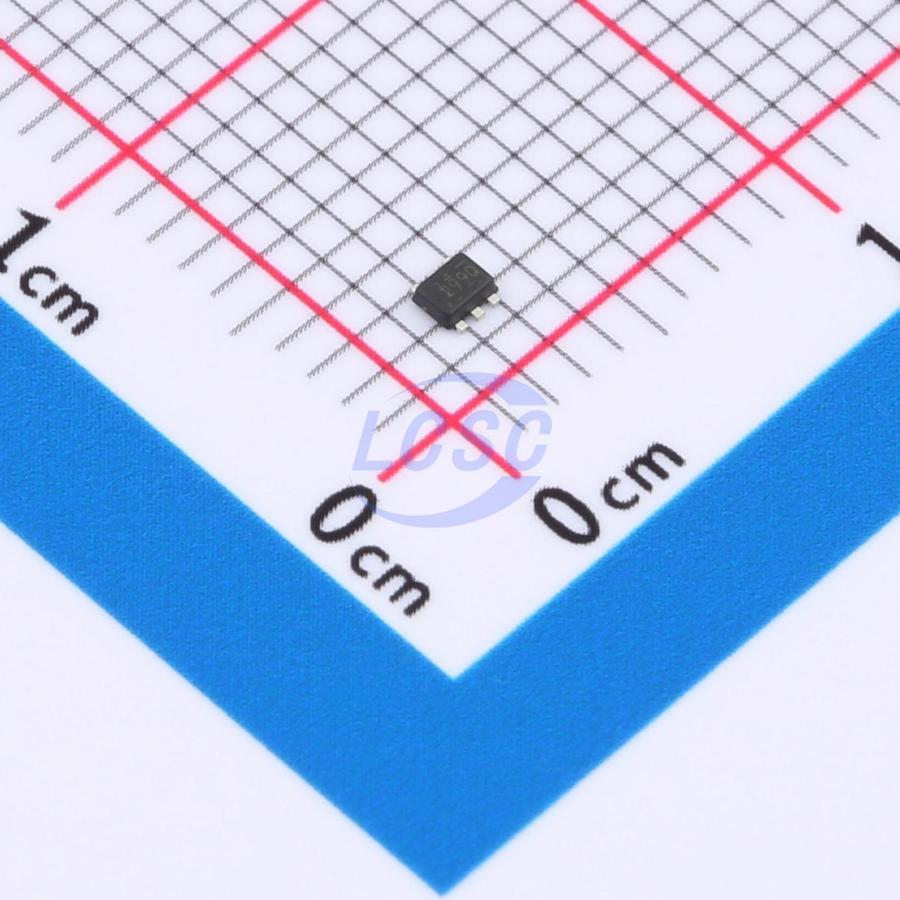

TPS61299QDRLRQ1

Boost Adjustable 1.8V~5.5V 500mA SOT-563-6 Voltage Regulators - DC DC Switching Regulators RoHS

SOT-563-6ROHS3 CompliantActive

95nA Quiescent Current, 5.5V Boost Converter with Input Current Limit and Fast Transient Performance

Manufacturer: TI
Manufacturer part #: TPS61299QDRLRQ1
Store part #: C22427793
Package / case: SOT-563-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

867 in stock

#C22427793

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹480.90	₹480.90
10+	₹428.43	₹4,284.30
30+	₹401.65	₹12,049.50
100+	₹365.96	₹36,596.00
500+	₹352.88	₹1,76,440.00
1,000+	₹347.45	₹3,47,450.00

Quantity (min 1)

1 × ₹480.90

₹480.90

excl. GST

₹567.46 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

TPS61299QDRLRQ1

₹480.90 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Function: Boost
Number of Outputs: 1
Features: Overcurrent Protection;Light load efficient mode;Load disconnect
Output Type: Adjustable
Topology: Boost
Operating Voltage: 500mV~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 1.8V~5.5V
Output Current: 500mA
Quiescent Current: 95nA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.067 g

Overview

The TPS61299-Q1 is a synchronous boost converter with 95nA ultra-low quiescent current and average input current limit. The device provides a power solution for portable equipment with alkaline battery and coin cell battery. This device operates at high efficiency under light-load condition to achieve long operation time and average input current limit can avoid battery discharging with high current. The TPS61299-Q1 has wide input voltage range from 0.5V to 5.5V and output voltage range from 1.8V to 5.5V. The average input current limit of this device is 1.2A. The TPS61299-Q1 with 1.2A current limit can support up to 500mA output current from 3V to 5V conversion and achieve approximately 94% efficiency at 200mA load. The TPS61299-Q1 has optional fast-load transient performance at output voltage is 4.5V, 5V, or 5.5V. The TPS61299-Q1 supports true shutdown function when it is disabled. The TPS61299-Q1 offers a very small solution size with 1.6mm × 1.6mm SOT563 package.

Applications

Automotive infotainment and cluster
Automotive rear lighting
Advanced driver-assistance system (ADAS)

Key features

AEC-Q100 qualified: – Device temperature grade 1: -40°C to +125°C ambient operating temperature range
Functional Safety-Capable Documentation available to aid functional safety system design
Input voltage range: 0.5V to 5.5V
0.7V minimum input voltage for start-up
Input operating voltage down to 150mV with signal VIN>0.7V
Output voltage range: 1.8V to 5.5V
VSEL pin select output voltage
Average input current limit: 1.2A
95nA typical quiescent current from VOUT
60nA typical shutdown current from VIN and SW
Up to 91% efficiency at VIN = 3.6V, VOUT = 5V, and lOUT = 10μA
Up to 94% efficiency at VIN = 3.6V, VOUT = 5V, and lOUT = 200mA
True disconnection at EN low
Automatic PFM/PWM mode transition
Auto pass-through at VIN > VOUT
Output SCP and thermal shutdown protections
SOT563 package (1.6mm × 1.6mm)
