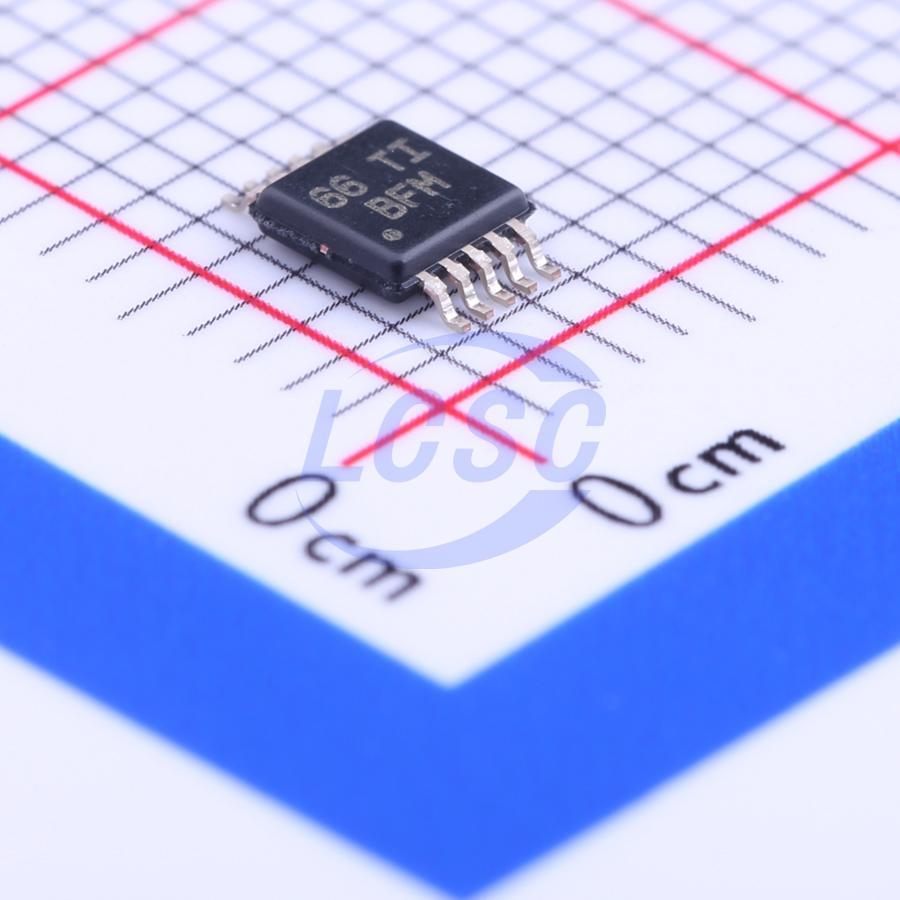

TPS62050DGSR
850kHz Step-down type Adjustable 700mV~6V 800mA VSSOP-10-0.5mm Voltage Regulators - DC DC Switching Regulators RoHS
VSSOP-10-0.5mmROHS3 CompliantActive
800-mA Synchronous Step-Down Converter
- Manufacturer
- TI
- Manufacturer part #
- TPS62050DGSR
- Store part #
- C128604
- Package / case
- VSSOP-10-0.5mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,310 in stock
#C128604
Stock & price checked 17 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹369.67 | ₹369.67 |
| 10+ | ₹316.55 | ₹3,165.50 |
| 30+ | ₹283.39 | ₹8,501.70 |
| 100+ | ₹249.35 | ₹24,935.00 |
| 500+ | ₹233.95 | ₹1,16,975.00 |
| 1,000+ | ₹227.23 | ₹2,27,230.00 |
1 × ₹369.67
₹369.67
excl. GST
₹436.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TPS62050DGSR
₹369.67 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 850kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Frequency synchronization;Light load efficient mode;Overcurrent Protection;Operating status indication
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.7V~10V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 700mV~6V
- Output Current
- 800mA
- Quiescent Current
- 12uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.148 g
Overview
High-Efficiency Synchronous Step-Down Converter With up to 95% Efficiency 12 μA Quiescent Current (Typical) 2.7-V to 10-V Operating Input Voltage Range Adjustable Output Voltage Range: 0.7 V to 6 V Fixed Output Voltage Options Available With 1.5 V, 1.8 V, and 3.3 V Synchronizable to External Clock: Up to 1.2 MHz High-Efficiency Over a Wide Load Current Range in Power-Save Mode 100% Maximum Duty Cycle for Lowest Dropout Low-Noise Operation in Forced Fixed Frequency PWM Operation Mode Internal Softstart Overtemperature and Overcurrent Protected Available in 10-Pin Micro-Small Outline Package MSOP
Applications
- Cellular Phones
- Organizers, PDAs, and Handheld PCs
- Low-Power DSP Supplies
- Digital Cameras and Hard Disks
Key features
- High-Efficiency Synchronous Step-Down Converter With up to 95% Efficiency
- 12 μA Quiescent Current (Typical)
- 2.7-V to 10-V Operating Input Voltage Range
- Adjustable Output Voltage Range: 0.7 V to 6 V
- Fixed Output Voltage Options Available With 1.5 V, 1.8 V, and 3.3 V
- Synchronizable to External Clock: Up to 1.2 MHz
- High-Efficiency Over a Wide Load Current Range in Power-Save Mode
- 100% Maximum Duty Cycle for Lowest Dropout
- Low-Noise Operation in Forced Fixed Frequency PWM Operation Mode
- Internal Softstart
- Overtemperature and Overcurrent Protected
- Available in 10-Pin Micro-Small Outline Package MSOP
