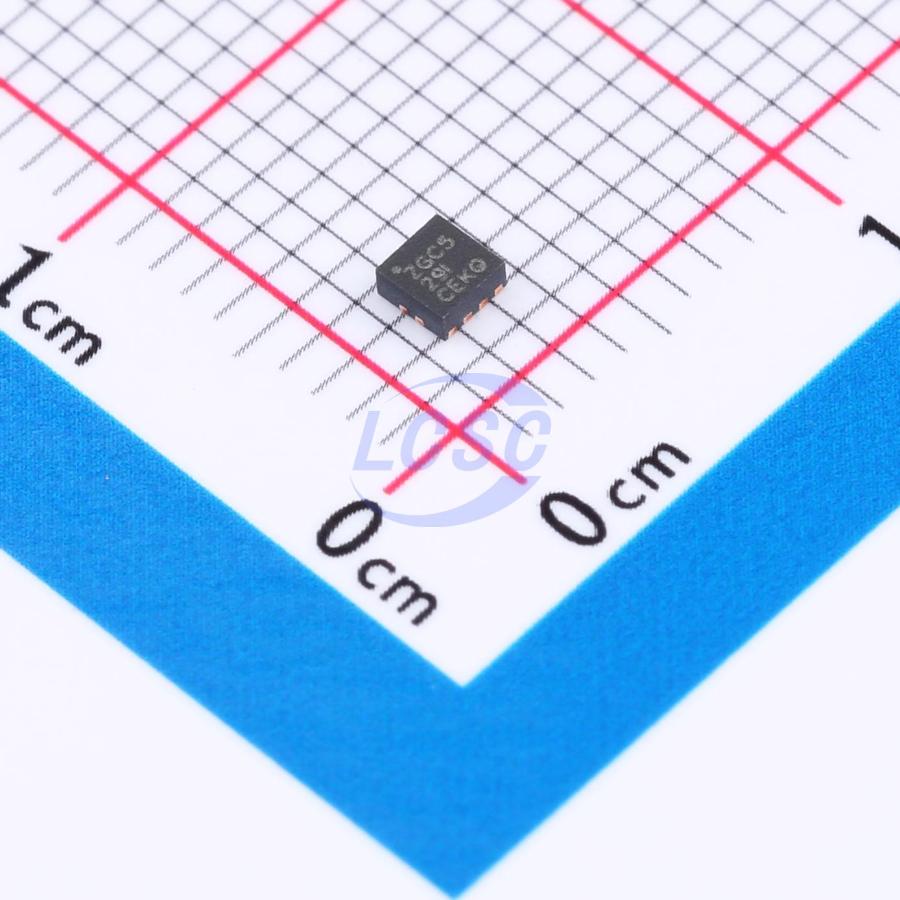

TPS6209733RWKR

The TPS62097 device is a synchronous buck converter optimized for high-efficiency and noise-sensitive applications. It is primarily designed for high-efficiency conversion across a wide output current range. The converter operates in PWM mode under moderate-to-heavy load conditions and automatically enters a power-save mode under light loads. The switching frequency can be selected between 1.5MHz and 2.5MHz using an external resistor. iDCS-Control enables low-noise operation at a constant switching frequency in forced PWM mode. To address system power rail requirements, the internal compensation circuit supports a wide range of external output capacitors with capacitance values above 150μF. To control inrush current during startup, the device provides programmable soft-start via an external capacitor connected to the SS/TR pin. The SS/TR pin can also be used in voltage tracking configurations. The device also integrates short-circuit protection, power-good, and thermal shutdown features. It is available in a 2mm x 2mm VQFN package.

Applications

• Motor drivers
• Programmable Logic Controllers (PLC)
• Solid State Drives (SSD)
• Point-of-Load (POL) regulators
• 1.8V output, PWM/PSM mode applications

Key features

• Forced PWM or power-save mode
• Up to 97% efficiency
• 2.5V to 6.0V input voltage
• Adjustable output voltage: 0.8V to VIN
• 1.8V and 3.3V fixed output voltages
• ±1% output voltage accuracy
• Hiccup short-circuit protection
• Programmable soft-start
• Output voltage tracking
• Selectable switching frequency
• 100% duty cycle for ultra-low dropout output discharge
• Power-good output
• Thermal shutdown protection
• -40°C to 125°C operating junction temperature range in 2mm × 2mm VQFN package
