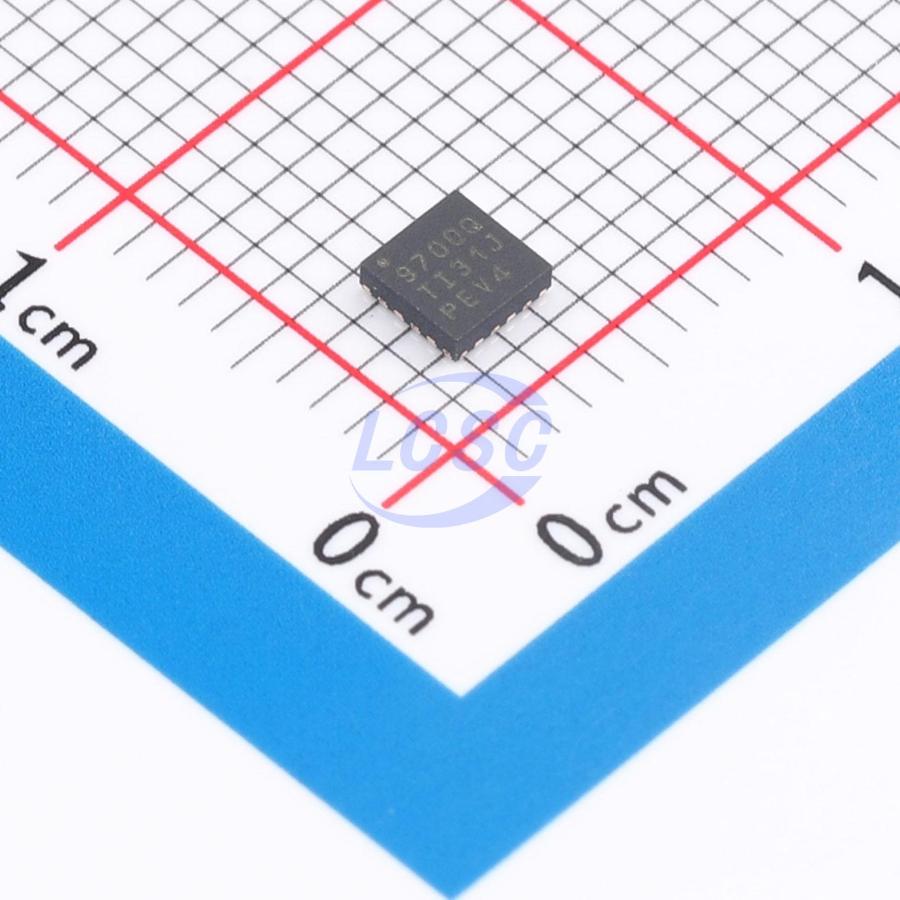

TPS62097QWRGTRQ1

The TPS62097-Q1 is a synchronous buck converter optimized for high-efficiency and noise-sensitive applications. It is primarily designed for high-efficiency conversion across a wide output current range. Under moderate to heavy load conditions, the converter operates in PWM mode and automatically enters a power-save mode at light loads. The switching frequency can be selected in the range of 1.5MHz to 2.5MHz using an external resistor. The iDCS-Control enables low-noise operation at a constant switching frequency in forced PWM mode. To address system power rail requirements, the internal compensation circuit supports a wide variety of external output capacitors with capacitance values greater than 150μF. To control inrush current during startup, the device provides a programmable soft-start function via an external capacitor connected to the SS/TR pin. The SS/TR pin can also be used in a voltage tracking configuration. The device also integrates short-circuit protection, power good, and thermal shutdown functions.

Applications

• Gateway
• Audio Head Unit
• Instrument Cluster
• Telematics

Key features

• AEC-Q100 compliant
• Device temperature grade 1: -40°C to 125°C operating junction temperature range
• Device HBM ESD classification level 2
• Device CDM ESD classification level C6
• Cohtror topology with selectable switching frequency
• Forced PWM or power-save mode
• Up to 97% efficiency
• 2.5V to 6.0V input voltage
• 0.8V to VIN adjustable output voltage
• 3.3V fixed output voltage, TPS6209733-Q1
• ±1% output voltage accuracy
• Hiccup short-circuit protection
• Programmable soft-start
• Output voltage tracking
• 100% duty cycle capability for minimum dropout
• Output discharge
• Power good
• Output thermal shutdown protection
• 3mm x 3mm QFN package with wettable flanks
