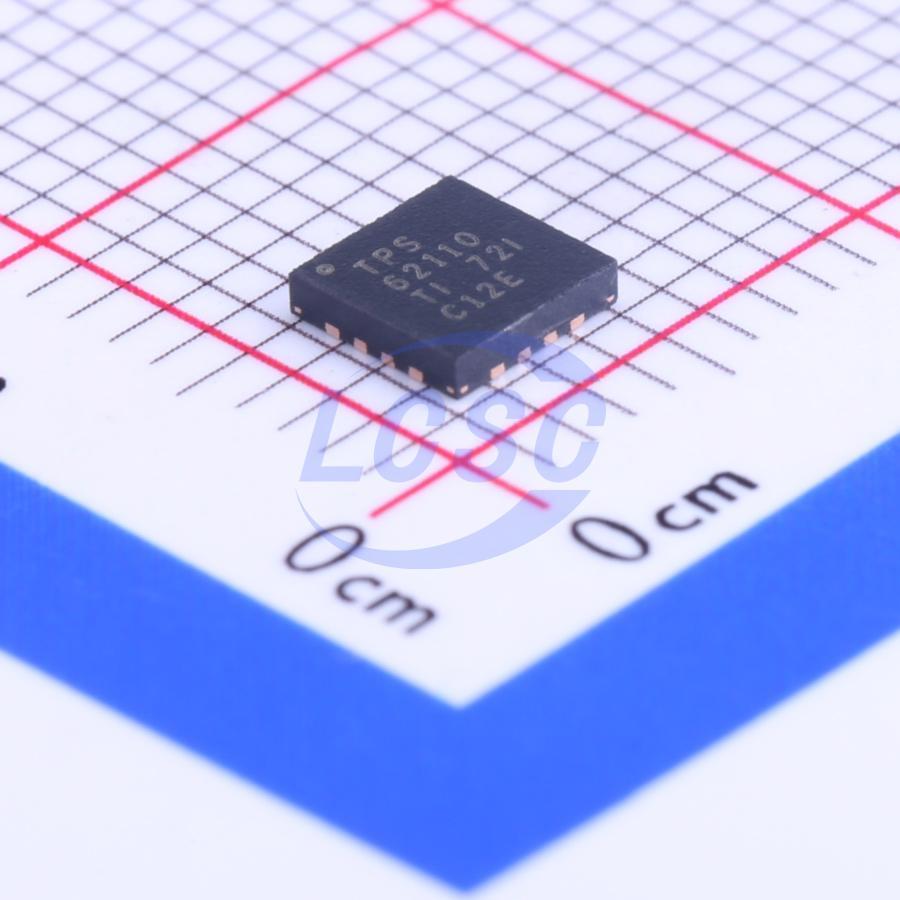

TPS62110RSAR

1MHz Step-down type Adjustable 1.2V~16V 1.5A QFN-16-EP(4x4) Voltage Regulators - DC DC Switching Regulators RoHS

QFN-16-EP(4x4)ROHS3 CompliantActive

17-V, 1.5-A, Synchronous Step-Down Converter

Manufacturer: TI
Manufacturer part #: TPS62110RSAR
Store part #: C123121
Package / case: QFN-16-EP(4x4)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9,147 in stock

#C123121

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹214.67	₹214.67
10+	₹175.79	₹1,757.90
30+	₹154.28	₹4,628.40
100+	₹130.16	₹13,016.00
500+	₹119.51	₹59,755.00
1,000+	₹114.73	₹1,14,730.00

Quantity (min 1)

1 × ₹214.67

₹214.67

excl. GST

₹253.31 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS62110RSAR

₹214.67 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 1MHz
Function: Step-down type
Number of Outputs: 1
Features: Frequency synchronization;Light load efficient mode;Overcurrent Protection;Operating status indication
Output Type: Adjustable
Topology: Buck
Operating Voltage: 3.1V~17V
Switch tube (built-in/external): Built-in
Output Voltage: 1.2V~16V
Output Current: 1.5A
Quiescent Current: 20uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.129 g

Overview

High-Efficiency Synchronous Step-Down Converter With up to 95% Efficiency 3.1-V to 17-V Operating Input Voltage Range Adjustable Output Voltage Range: 1.2 V to 16 V Fixed Output Voltage Options Available in 3.3 V and 5 V Synchronizable to External Clock: Up to 1.4 MHz Up to 1.5-A Output Current High Efficiency Over a Wide Load-Current Range Due to PFM/PWM Operation Mode 100% Maximum Duty Cycle for Lowest Dropout 20 μA Quiescent Current (Typical) Overtemperature and Overcurrent Protected Available in 16-Pin VQFN Package

Applications

Point-of-Load Regulation From 12-V Buses
Organizers, PDAs, and Handheld PCs
Handheld Scanners

Key features

High-Efficiency Synchronous Step-Down Converter With up to 95% Efficiency
3.1-V to 17-V Operating Input Voltage Range
Adjustable Output Voltage Range: 1.2 V to 16 V
Fixed Output Voltage Options Available in 3.3 V and 5 V
Synchronizable to External Clock: Up to 1.4 MHz
Up to 1.5-A Output Current
High Efficiency Over a Wide Load-Current Range Due to PFM/PWM Operation Mode
100% Maximum Duty Cycle for Lowest Dropout
20 μA Quiescent Current (Typical)
Overtemperature and Overcurrent Protected
Available in 16-Pin VQFN Package

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
TPS62110RSAT#C2878943TI · WQFN-16-EP(4x4)	TI	WQFN-16-EP(4x4)	2	₹2,916.36 · 2 in stock	View
TPS62113RSAT#C2071271TI · QFN-16-EP(4x4)	TI	QFN-16-EP(4x4)	On request	₹544.96 · 0 in stock	View
TPS62110MRSAREP#C2869687TI · QFN-16-EP(4x4)	TI	QFN-16-EP(4x4)	On request	₹891.64 · 0 in stock	View
TPS62110QRSARQ1#C2071315TI · QFN-16-EP(4x4)	TI	QFN-16-EP(4x4)	On request	₹372.01 · 0 in stock	View
TPS62113RSAR#C2071244TI · QFN-16-EP(4x4)	TI	QFN-16-EP(4x4)	On request	₹246.53 · 0 in stock	View
