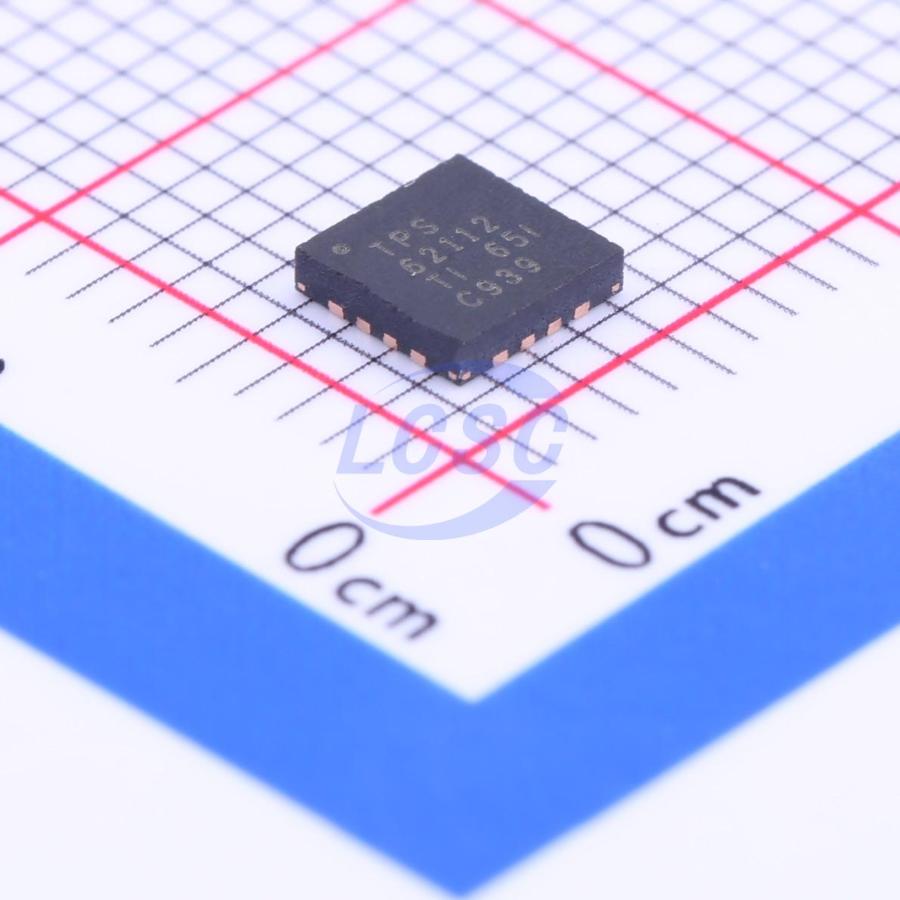

TPS62112RSAR
1MHz Step-down type Fixed 5V 1.5A QFN-16-EP(4x4) Voltage Regulators - DC DC Switching Regulators RoHS
QFN-16-EP(4x4)ROHS3 CompliantActive
17-V, 1.5-A, Synchronous Step-Down Converter
- Manufacturer
- TI
- Manufacturer part #
- TPS62112RSAR
- Store part #
- C122728
- Package / case
- QFN-16-EP(4x4)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
232 in stock
#C122728
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹389.19 | ₹389.19 |
| 10+ | ₹339.32 | ₹3,393.20 |
| 30+ | ₹308.10 | ₹9,243.00 |
| 100+ | ₹276.02 | ₹27,602.00 |
| 500+ | ₹261.49 | ₹1,30,745.00 |
| 1,000+ | ₹255.19 | ₹2,55,190.00 |
1 × ₹389.19
₹389.19
excl. GST
₹459.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS62112RSAR
₹389.19 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 1MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Frequency synchronization;Light load efficient mode;Overcurrent Protection;Operating status indication
- Output Type
- Fixed
- Topology
- Buck
- Operating Voltage
- 3.1V~17V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 5V
- Output Current
- 1.5A
- Quiescent Current
- 20uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.3 g
Overview
High-Efficiency Synchronous Step-Down Converter With up to 95% Efficiency 3.1-V to 17-V Operating Input Voltage Range Adjustable Output Voltage Range: 1.2 V to 16 V Fixed Output Voltage Options Available in 3.3 V and 5 V Synchronizable to External Clock: Up to 1.4 MHz Up to 1.5-A Output Current High Efficiency Over a Wide Load-Current Range Due to PFM/PWM Operation Mode 100% Maximum Duty Cycle for Lowest Dropout 20 μA Quiescent Current (Typical) Overtemperature and Overcurrent Protected Available in 16-Pin VQFN Package
Applications
- Point-of-Load Regulation From 12-V Buses
- Organizers, PDAs, and Handheld PCs
- Handheld Scanners
Key features
- High-Efficiency Synchronous Step-Down Converter With up to 95% Efficiency
- 3.1-V to 17-V Operating Input Voltage Range
- Adjustable Output Voltage Range: 1.2 V to 16 V
- Fixed Output Voltage Options Available in 3.3 V and 5 V
- Synchronizable to External Clock: Up to 1.4 MHz
- Up to 1.5-A Output Current
- High Efficiency Over a Wide Load-Current Range Due to PFM/PWM Operation Mode
- 100% Maximum Duty Cycle for Lowest Dropout
- 20 μA Quiescent Current (Typical)
- Overtemperature and Overcurrent Protected
- Available in 16-Pin VQFN Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS62112MRSAREP#C2071621TI · QFN-16-EP(4x4) | TI | QFN-16-EP(4x4) | 3 | ₹1,986.14 · 3 in stock | View |
