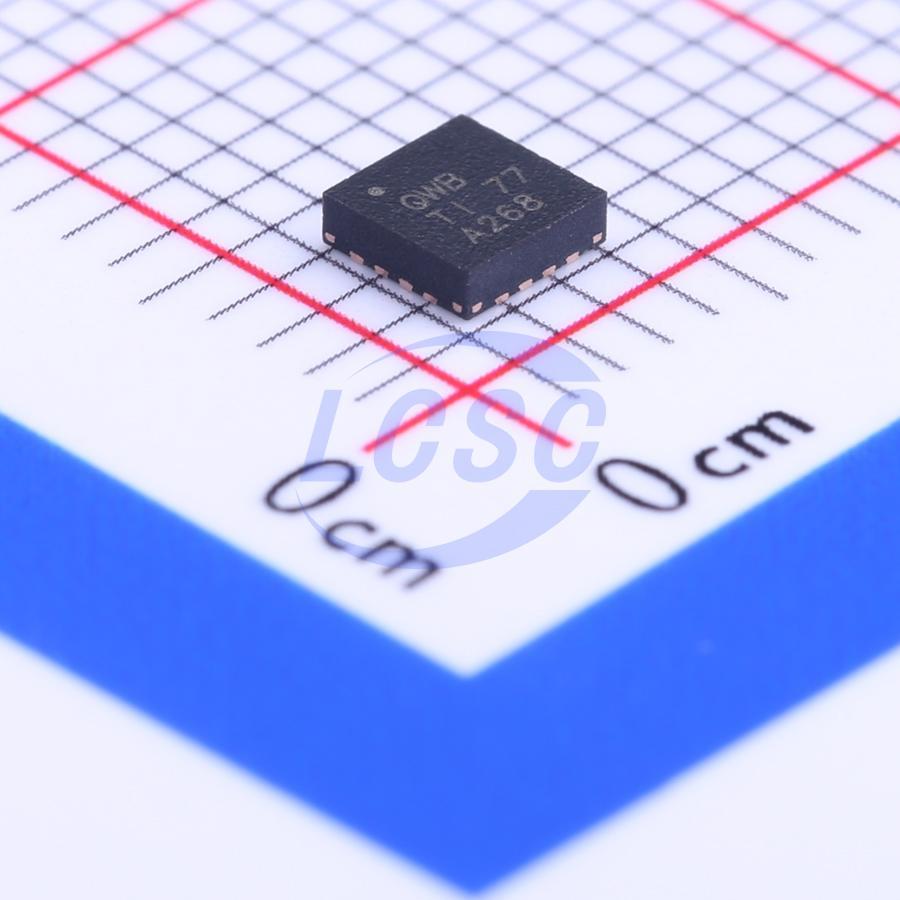

TPS62142RGTR
2.5MHz Step-down type Fixed 3.3V 2A VQFN-16-EP(3x3) Voltage Regulators - DC DC Switching Regulators RoHS
VQFN-16-EP(3x3)ROHS3 CompliantActive
3-V to 17-V 2-A Step-Down Converter
- Manufacturer
- TI
- Manufacturer part #
- TPS62142RGTR
- Store part #
- C129331
- Package / case
- VQFN-16-EP(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
632 in stock
#C129331
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹319.19 | ₹319.19 |
| 10+ | ₹270.95 | ₹2,709.50 |
| 30+ | ₹240.75 | ₹7,222.50 |
| 100+ | ₹209.68 | ₹20,968.00 |
| 500+ | ₹192.07 | ₹96,035.00 |
| 1,000+ | ₹186.00 | ₹1,86,000.00 |
1 × ₹319.19
₹319.19
excl. GST
₹376.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS62142RGTR
₹319.19 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 2.5MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Adjustable soft-start;Output voltage tracking;Operating status indication;Overcurrent Protection;Light load efficient mode
- Output Type
- Fixed
- Topology
- Buck
- Operating Voltage
- 3V~17V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 3.3V
- Output Current
- 2A
- Quiescent Current
- 17uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.146 g
Overview
DCS-ControlTM Topology Input Voltage Range: 3 V to 17 V Up to 2-A Output Current Adjustable Output Voltage from 0.9 V to 6 V Pin-Selectable Output Voltage (Nominal, +5% ) Programmable Soft Start and Tracking Seamless Power-Save Mode Transition Quiescent Current of 17 μA (Typical) Selectable Operating Frequency Power-Good Output 100% Duty-Cycle Mode Short-Circuit Protection Over Temperature Protection Pin to Pin Compatible with TPS62130 and TPS62150 Available in a 3 -mm×3 -mm, VQFN-16 Package
Applications
- Standard 12-V Rail Supplies
- POL Supply From Single or Multiple Li-Ion Battery
- Solid-State Disk Drives
- Embedded Systems
- LDO Replacement
- Mobile PCs, Tablet, Modems, Cameras
- Server, Microserver
- Data Terminal, Point of Sales (ePOS)
Key features
- DCS-ControlTM Topology
- Input Voltage Range: 3 V to 17 V
- Up to 2-A Output Current
- Adjustable Output Voltage from 0.9 V to 6 V
- Pin-Selectable Output Voltage (Nominal, +5% )
- Programmable Soft Start and Tracking
- Seamless Power-Save Mode Transition
- Quiescent Current of 17 μA (Typical)
- Selectable Operating Frequency
- Power-Good Output
- 100% Duty-Cycle Mode
- Short-Circuit Protection
- Over Temperature Protection
- Pin to Pin Compatible with TPS62130 and TPS62150
- Available in a 3 -mm×3 -mm, VQFN-16 Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS62142RGTT#C2070653TI · QFN-16-EP(3x3) | TI | QFN-16-EP(3x3) | 112 | ₹208.72 · 112 in stock | View |
 | TPS62132RGTT#C2070674TI · VQFN-16-EP(3x3) | TI | VQFN-16-EP(3x3) | On request | ₹246.74 · 0 in stock | View |
 | TPS62132RGTR#C81563TI · VQFN-16-EP(3x3) | TI | VQFN-16-EP(3x3) | On request | ₹257.01 · 0 in stock | View |
