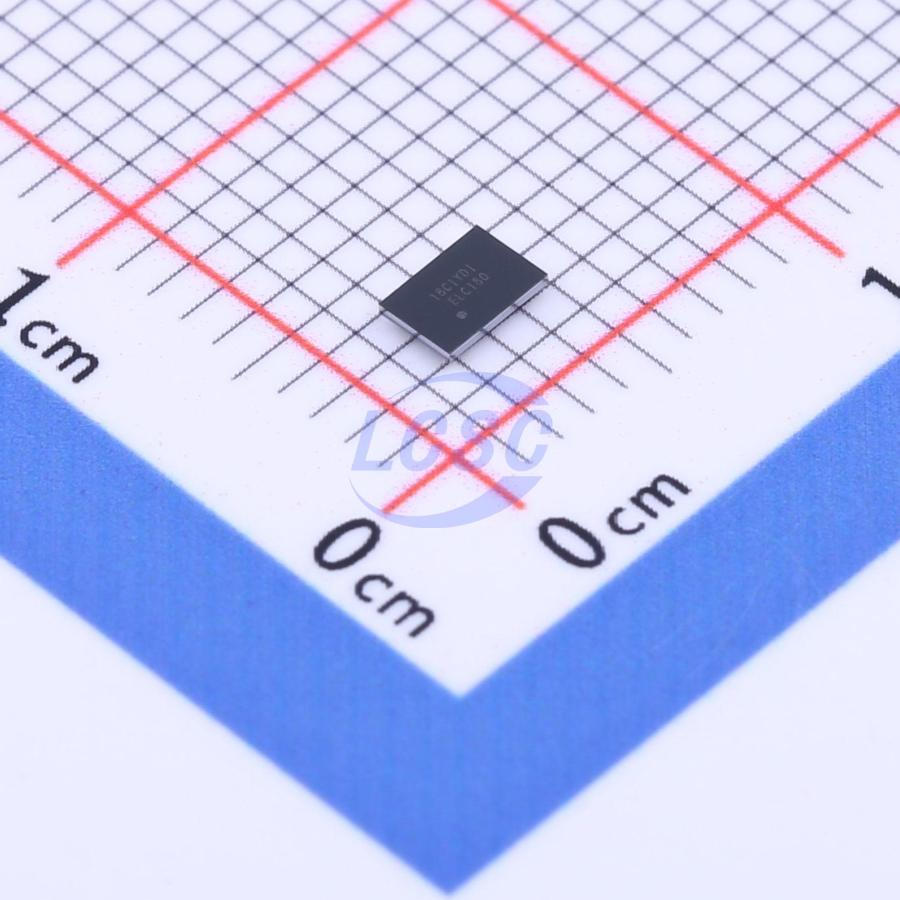

TPS62180YZFR

TPS6218x is a dual-phase step-down DC-DC converter designed for thin power rails. It features peak current control with two-phase current balancing, making it suitable for height-constrained applications. The device offers a wide input voltage range of 4V to 15V, ideal for systems powered by multi-cell Li-ion batteries or a 12V power rail. The two phases deliver a continuous 6A output current (3A per phase), enabling the use of thin external components. The two phases operate out of phase, significantly reducing switching noise. The TPS6218x automatically enters power-save mode under ultra-light loads to maintain high efficiency, and also integrates an Automatic Efficiency Enhancement (AEE™) feature that operates across the full duty cycle range. The device supports a power-good signal and adjustable soft-start. Its typical quiescent current is 28μA, and it is capable of operating in 100% duty cycle mode without duty cycle limitations even at the minimum output voltage. The TPS6218x is available in both adjustable and fixed output voltage options, housed in a 24-bump, 0.5mm pitch DSBGA package.

Applications

• Thin point-of-load (POL) power supplies
• Narrow VDC (NVDC) power systems for 2/3-cell Li-ion batteries
• Ultra-portable/embedded/tablet computing and networking solutions
• Micro servers and solid-state drives (SSD)

Key features

• Dual-phase balanced peak current mode
• Input voltage range: 4V to 15V
• Output voltage range: 0.9V to 6V
• Output current up to 6A
• Typical quiescent current: 28μA
• Output voltage accuracy: ±1% (PWM mode)
• Automatic Efficiency Enhancement (AEE™)
• Phase-shift operation
• Automatic power-save mode
• Adjustable soft-start
• Power Good output
• Undervoltage lockout
• HICCUP overcurrent protection
• Pin-to-pin compatible with TPS62184
• Overtemperature protection
• NanoFree 2.10mm×3.10mm DSBGA package
• Create custom designs using TPS62180 with WEBENCH Power Designer
