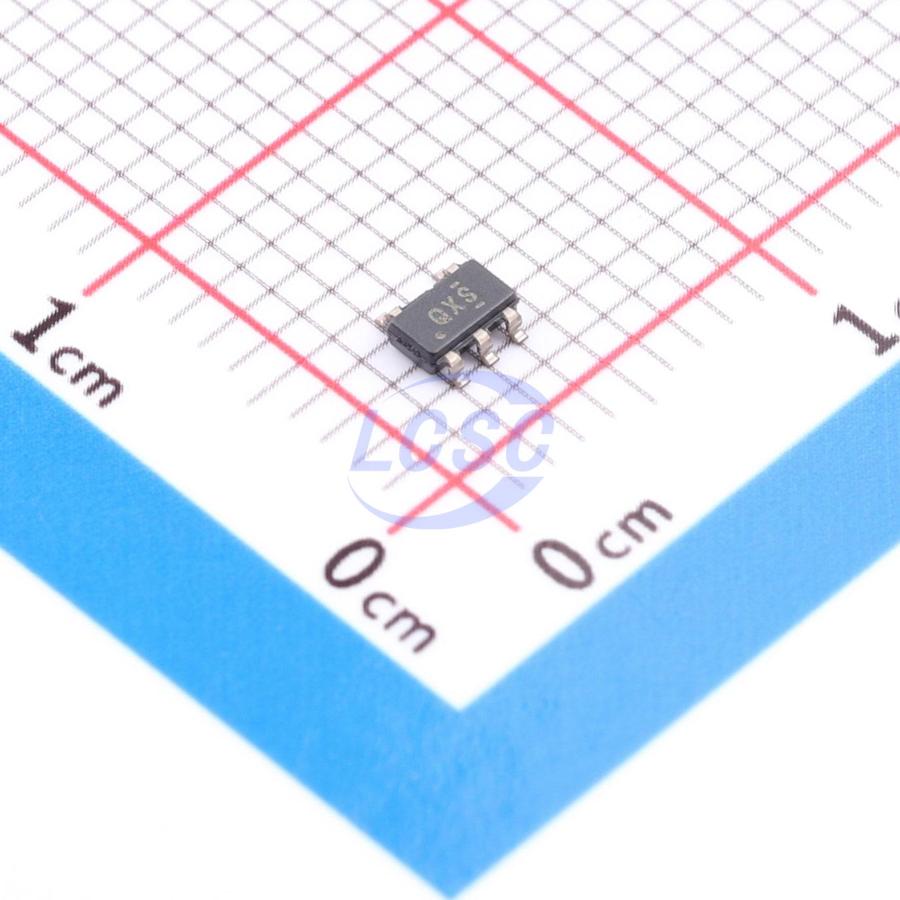

TPS62262DDCR
2.25MHz Step-down type Fixed 600mA 1.2V SOT-23-5 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-5ROHS3 CompliantActive
- Manufacturer
- TI
- Manufacturer part #
- TPS62262DDCR
- Store part #
- C2072128
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C2072128
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹176.67 | ₹176.67 |
| 10+ | ₹172.55 | ₹1,725.50 |
| 30+ | ₹169.93 | ₹5,097.90 |
| 100+ | ₹167.11 | ₹16,711.00 |
1 × ₹176.67
₹176.67
excl. GST
₹208.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS62262DDCR
₹176.67 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 2.25MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Light load efficient mode;Overcurrent Protection
- Topology
- Buck
- Output Type
- Fixed
- Operating Voltage
- 2V~6V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 600mA
- Output Voltage
- 1.2V
- Quiescent Current
- 15uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.19 g
Overview
The TPS6226x device is a highly efficient synchronous step-down DC/DC converter. The TPS6226x provides up to 600-mA output current from a single Li-Ion cell, and is ideal for battery-powered applications such as mobile phones and other portable equipment.
Applications
- Mobile Phones, Smart Phones
- Low Power DSP Supply
- Portable Media Players
- Point-of-Load (POL) Applications
Key features
- High Efficiency Step-Down Converter
- Output Current up to 600 mA
- VIN Range from 2 V to 6 V for Li-ion Batteries with Extended Voltage Range
- 2.25-MHz Fixed Frequency Operation
- Power Save Mode at Light Load Currents
- Output Voltage Accuracy in PWM Mode ±1.5%
- Typical 15-μA Quiescent Current
- 100% Duty Cycle for Lowest Dropout Voltage Positioning at Light Loads
- Available in a SOT (5) and 2-mm×2-mm×0.8 mm WSON (6) Package
- Allows < 1 -mm Solution Height
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XC9236A12CMR-G#C3193168TOREX · SOT-25-5 | TOREX | SOT-25-5 | 10 | ₹174.83 · 10 in stock | View |
 | HX1001-KEC#C42412962HEXIN · SOT-23-5L | HEXIN | SOT-23-5L | 3,030 | ₹9.94 · 3,030 in stock | View |
 | ADP2108AUJZ-1.2-R7#C579246ADI · TSOT-23-5 | ADI | TSOT-23-5 | 44 | ₹291.18 · 44 in stock | View |
| TPS62262DDCT#C2071136TI · SOT-23-5 | TI | SOT-23-5 | On request | ₹294.71 · 0 in stock | View | |
| XC9236B12DMR-G#C2471250TOREX · SOT-25-5 | TOREX | SOT-25-5 | On request | ₹152.50 · 0 in stock | View | |
