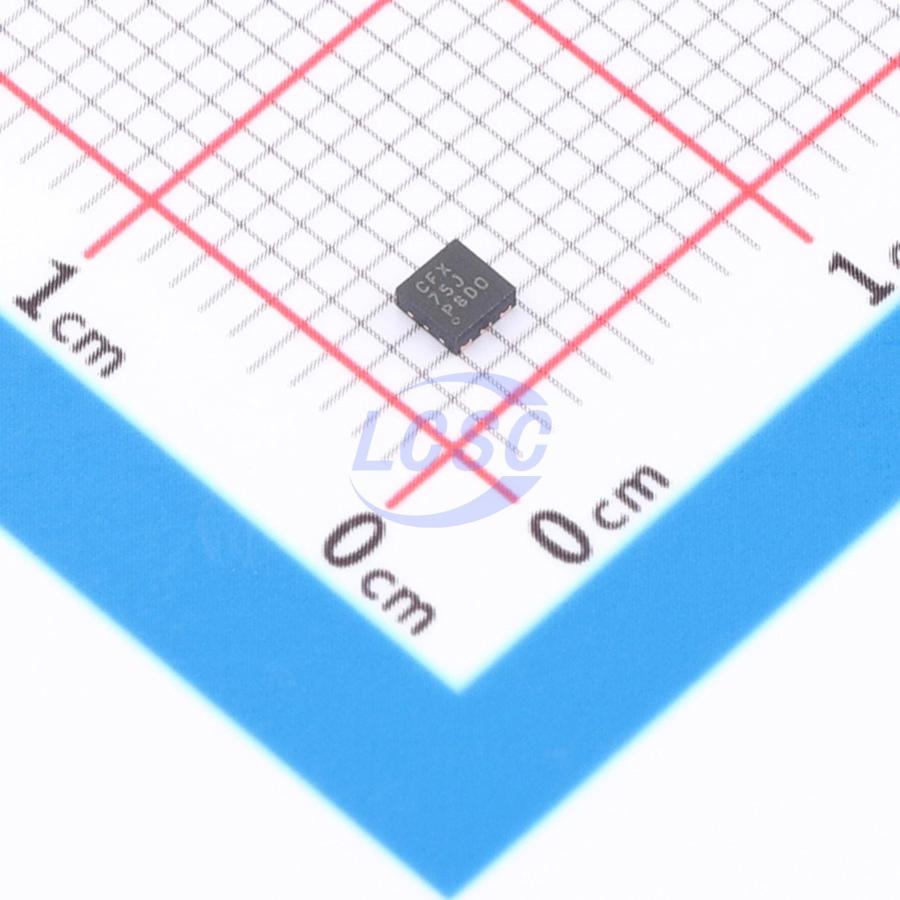

TPS62263DRVR
2.25MHz Step-down type Fixed 600mA 2.5V WSON-6-EP(2x2) Voltage Regulators - DC DC Switching Regulators RoHS
WSON-6-EP(2x2)ROHS3 CompliantActive
- Manufacturer
- TI
- Manufacturer part #
- TPS62263DRVR
- Store part #
- C2071154
- Package / case
- WSON-6-EP(2x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C2071154
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹237.29 | ₹237.29 |
| 10+ | ₹231.31 | ₹2,313.10 |
| 30+ | ₹227.25 | ₹6,817.50 |
| 100+ | ₹223.19 | ₹22,319.00 |
1 × ₹237.29
₹237.29
excl. GST
₹280.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS62263DRVR
₹237.29 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 2.25MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Light load efficient mode;Overcurrent Protection
- Topology
- Buck
- Output Type
- Fixed
- Operating Voltage
- 2V~6V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 600mA
- Output Voltage
- 2.5V
- Quiescent Current
- 15uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.41 g
Overview
The TPS6226x device is a highly efficient synchronous step-down DC/DC converter. The TPS6226x provides up to 600-mA output current from a single Li-Ion cell, and is ideal for battery-powered applications such as mobile phones and other portable equipment.
Applications
- Mobile Phones, Smart Phones
- Low Power DSP Supply
- Portable Media Players
- Point-of-Load (POL) Applications
Key features
- High Efficiency Step-Down Converter
- Output Current up to 600 mA
- VIN Range from 2 V to 6 V for Li-ion Batteries with Extended Voltage Range
- 2.25-MHz Fixed Frequency Operation
- Power Save Mode at Light Load Currents
- Output Voltage Accuracy in PWM Mode ±1.5%
- Typical 15-μA Quiescent Current
- 100% Duty Cycle for Lowest Dropout Voltage Positioning at Light Loads
- Available in a SOT (5) and 2-mm×2-mm×0.8 mm WSON (6) Package
- Allows < 1 -mm Solution Height
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| TPS62263TDRVRQ1#C2071129TI · WSON-6-EP(2x2) | TI | WSON-6-EP(2x2) | On request | ₹290.09 · 0 in stock | View | |
| TPS62263DRVT#C2072308TI · WSON-6-EP(2x2) | TI | WSON-6-EP(2x2) | On request | ₹294.71 · 0 in stock | View | |
