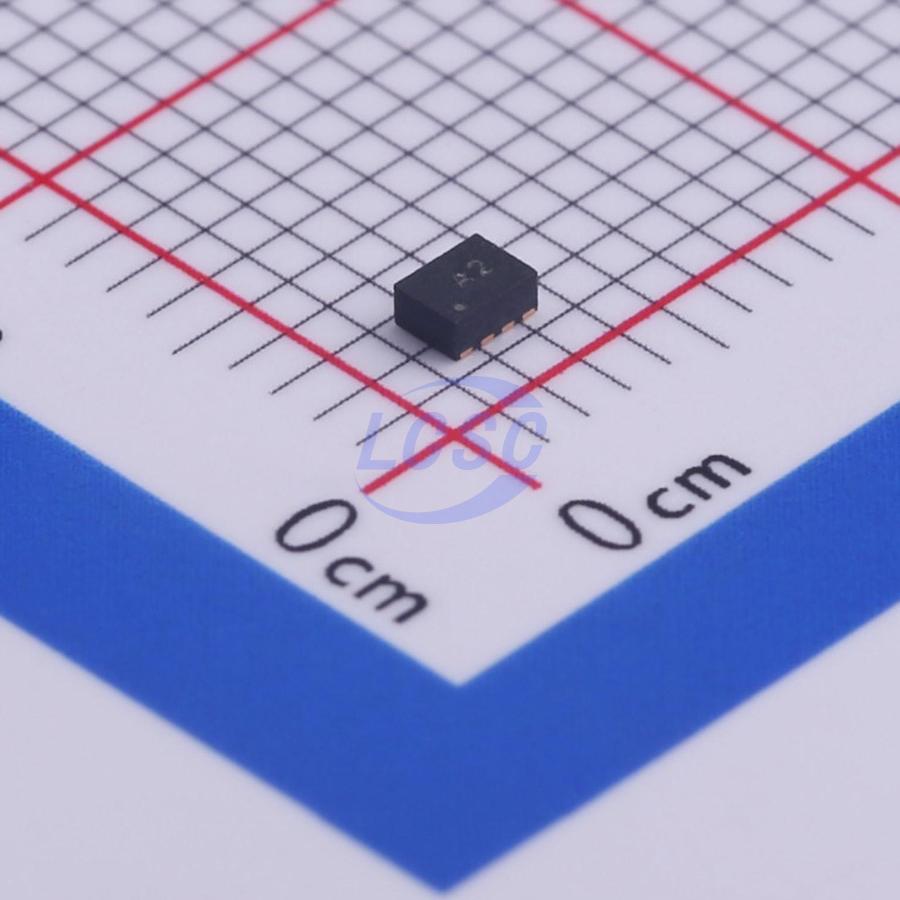

TPS62822DLCR

The TPS6282x is an all-purpose and easy to use synchronous step-down DC-DC converter with a very low quiescent current of only 4 μA. It supplies up to 3A output current (TPS62823) from a 2.4-V to 5.5-V input voltage. Based on the DCS-Control™ topology it provides a fast transient response. The internal reference allows to regulate the output voltage down to 0.6 V with a high feedback voltage accuracy of 1% over the junction temperature range of -40℃ to 125℃. The 1-A, 2-A, 3-A scalable pin-to-pin and BOM-to-BOM compatible device family can be used with small 470-nH inductors. The TPS6282x include an automatically entered power save mode to maintain high efficiency down to very light loads. The device features a Power Good signal and an internal soft start circuit. It is able to operate in 100% mode. For fault protection, it incorporates a HICCUP current limit as well as a thermal shutdown. The TPS6282x are packaged in a 2 mm x 1.5 mm QFN-8 package.

Applications

• POL supply in portable/battery powered devices
• Factory and building automation
• Mobile computing, networking cards
• Solid state drive
• Data terminal, point of sale
• Servers, projectors, printers

Key features

• DCS-Control™ topology
• 26-mΩ/25-mΩ internal power switches (TPS62823)
• Up to 3-A output current (TPS62823)
• Very low quiescent current of 4 μA
• Switching frequency of typically 2.2 MHz
• 1% feedback voltage accuracy (full temp. range)
• Enable (EN) and power good (PG)
• Adjustable output voltage from 0.6 V to 4 V
• 100% duty-cycle mode
• Internal soft-start circuitry
• Seamless power save mode transition
• Undervoltage lockout
• Active output discharge
• Cycle-by-cycle current limit
• HICCUP short-circuit protection
• Over temperature protection
• CISPR11 class B compliant
• Create a custom design using the TPS62822 with the WEBENCH Power Designer
