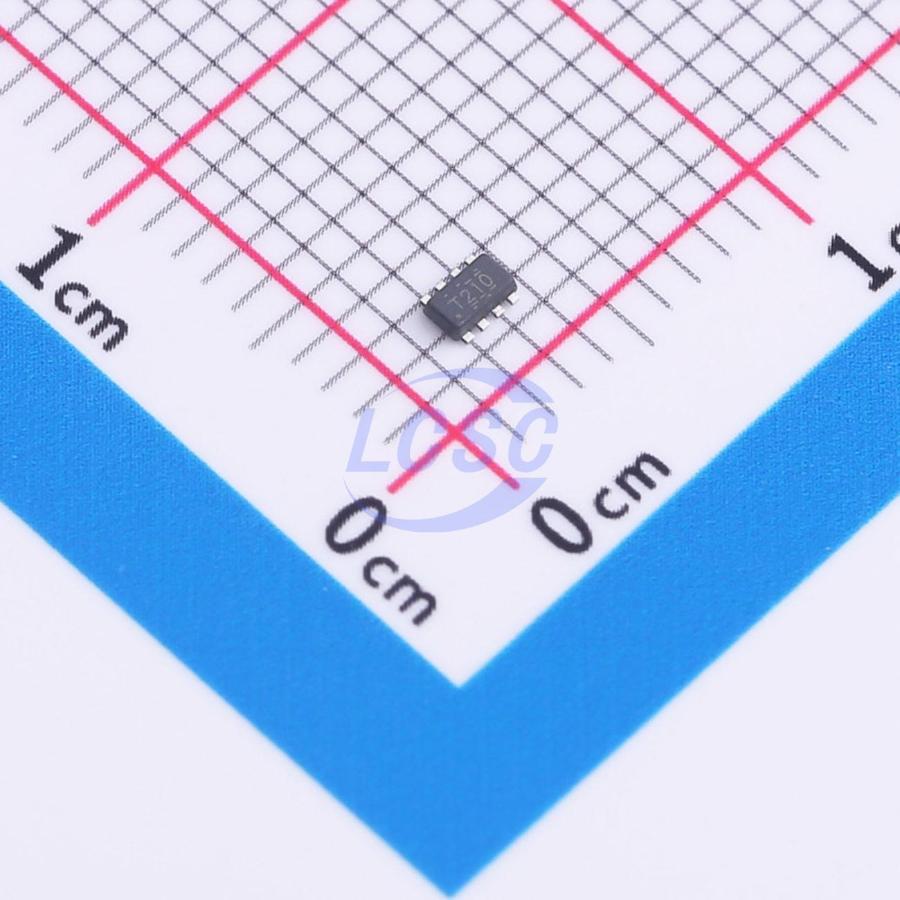

TPS629210QDRLRQ1

The automotive-qualified TPS6292xx-Q1 family of devices are highly efficient, small, and highly flexible synchronous step-down DC-DC converters that are easy to use. A wide 3-V to 17-V input voltage range supports a wide variety of systems powered from either 12-V, 5-V, or 3.3-V supply rails, or single-cell or multi-cell Li-Ion batteries. The TPS629210-Q1 can be configured to run at either 2.5 MHz or 1 MHz in a forced PWM mode or a variable frequency (auto PFM) mode. In auto PFM mode, the device automatically transitions to power save mode at light loads to maintain high efficiency. The low 4-μA typical quiescent current also provides high efficiency down to the smallest loads. TI's automatic efficiency enhancement (AEE) mode holds a high conversion efficiency through the whole operation range without the need of using different inductors by automatically adjusting the switching frequency based on input and output voltages. In addition to selecting the switching frequency behavior, the MODE/S-CONF input pin can also be used to select between different combinations of external and internal feedback dividers and enabling and disabling the output voltage discharge capability. In the internal feedback configuration, a resistor between the FB/VSET pin and GND can be used to select between 18 different output voltage options.

Applications

• Advanced driver assistance systems (ADAS)
• Automotive infotainment and cluster
• Vehicle body electronics and lighting
• Hybrid, electric and powertrain systems

Key features

• AEC-Q100 qualified for automotive applications
• -40°C to 150°C operating junction temp range
• Level 2 device HBM ESD classification
• Level C4B CDM ESD classification
• Functional Safety-Capable Documentation available to aid functional safety system design
• High-efficiency DCS-Control topology
• Internal compensation
• Seamless PWM/PFM transition
• 4-μA typical low quiescent current
• Output current up to 1 A
• 250-mΩ high side, 85-mΩ low side RDSON
• ±1% output voltage accuracy
• Configurable output voltage options
• 0.6-V to 5.5-V VFB external divider
• VSET internal divider: 18 options between 0.4 V and 5.5 V
• Flexibility through the MODE/S-CONF pin
• 2.5-MHz or 1.0-MHz switching frequency
• Forced PWM or auto (PFM) power save mode with dynamic mode change option
• Output discharge on, off
• No external bootstrap capacitor required
• Overcurrent and overtemperature protection
• 100% duty cycle mode
• Precise enable input
• Power-good output
• Pin-to-pin compatible with the TPS629206-Q1 and TPS629203-Q1 devices
• 0.5-mm pitch, 8-pin SOT-5X3 package
