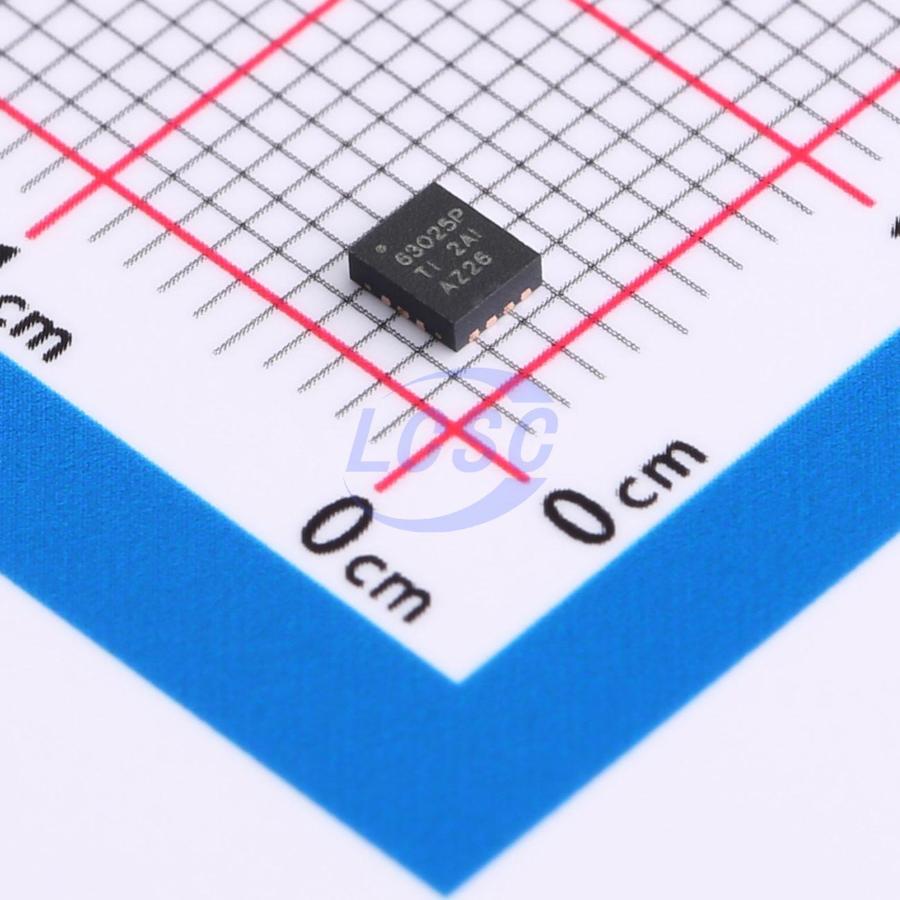

TPS630250RNCR

Buck-Boost Switching Regulator IC Adjustable 2.3V~3.6V 1 Output 2A 4A VQFN-14(2.5x3)

VQFN-14(2.5x3)ROHS3 CompliantActive

4A switch-mode single inductor buck-boost converter in a 3.7mm² DSBGA package

Manufacturer: TI
Manufacturer part #: TPS630250RNCR
Store part #: C2071836
Package / case: VQFN-14(2.5x3)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

314 in stock

#C2071836

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
1+	₹370.48	₹370.48
10+	₹312.64	₹3,126.40
30+	₹276.55	₹8,296.50
100+	₹239.37	₹23,937.00
500+	₹222.63	₹1,11,315.00
1,000+	₹215.46	₹2,15,460.00

Quantity (min 1)

1 × ₹370.48

₹370.48

excl. GST

₹437.17 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS630250RNCR

₹370.48 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 2.5MHz
Function: Buck-Boost
Number of Outputs: 1
Features: Output discharge;Load disconnect;Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Buck-Boost
Operating Voltage: 2.3V~5.5V
Switch tube (built-in/external): Built-in
Output Current: 2A;4A
Output Voltage: 2.3V~3.6V
Quiescent Current: 35uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.045 g

Overview

True buck or boost operation with automatic and seamless transition between buck and boost operation; input voltage range 2.3V to 5.5V; 2A continuous output current: input voltage ≥2.7V, output voltage = 3.3V; adjustable and fixed output voltage; up to 95% efficiency in buck or boost mode, and up to 97% efficiency when input voltage equals output voltage; 2.5MHz typical switching frequency; 35μA quiescent operating current; integrated soft-start; power-save mode; true shutdown function; output capacitor discharge function; overtemperature protection and overcurrent protection; wide capacitor value selection; compact 1.766mm x 2.086mm, 20-pin wafer-level chip scale package (WCSP).

Applications

Mobile phones, smartphones
Tablet PCs
PC and smartphone accessories
Point-of-load regulation
Battery-powered applications

Key features

Automatic and seamless transition between buck and boost operation
Input voltage range: 2.3V to 5.5V
2A continuous output current: input voltage ≥2.7V, output voltage = 3.3V
Adjustable and fixed output voltage
Up to 95% efficiency in buck or boost mode, up to 97% efficiency when input voltage equals output voltage
2.5MHz typical switching frequency
35μA quiescent operating current
Integrated soft-start
Power-save mode
True shutdown function
Output capacitor discharge function
Thermal shutdown and overcurrent protection
Wide capacitor value selection
Compact 1.766mm x 2.086mm, 20-pin WCSP package
