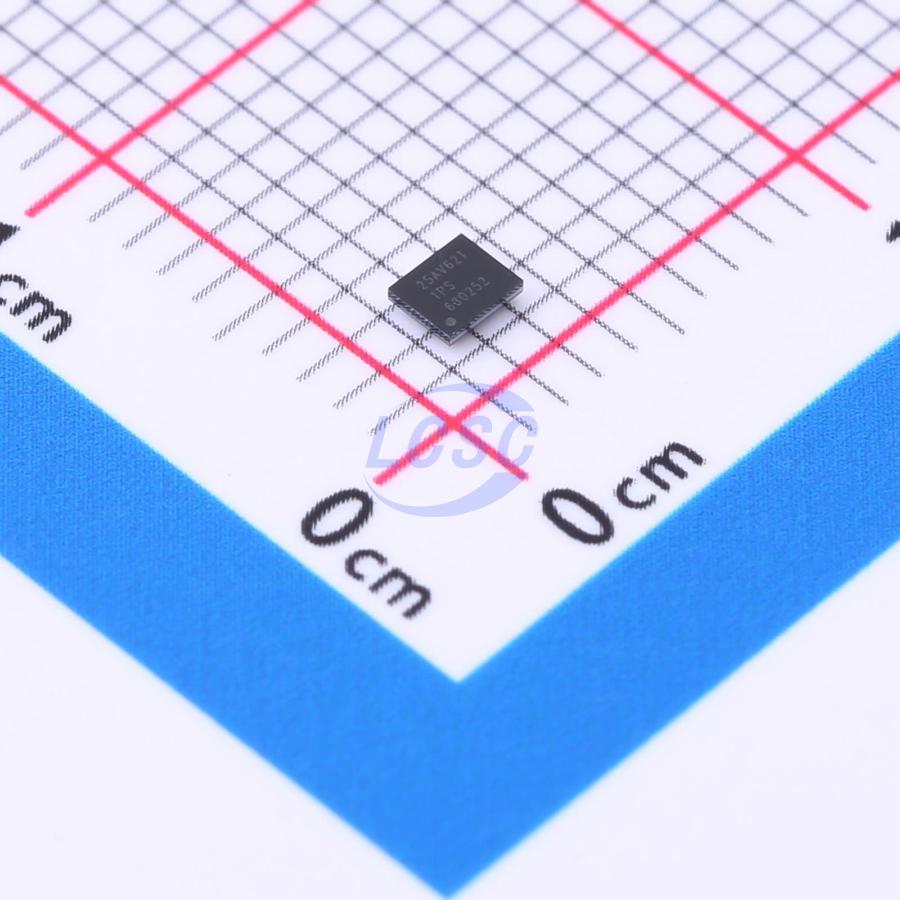

TPS630252YFFR

Buck-Boost Switching Regulator IC Fixed 3.3V 1 Output 2A DSBGA-20

DSBGA-20ROHS3 CompliantActive

High Current High Efficiency Single Inductor Buck-Boost Converter

Manufacturer: TI
Manufacturer part #: TPS630252YFFR
Store part #: C2070606
Package / case: DSBGA-20
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

674 in stock

#C2070606

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹293.24	₹293.24
10+	₹261.24	₹2,612.40
30+	₹238.60	₹7,158.00
100+	₹218.14	₹21,814.00
500+	₹208.56	₹1,04,280.00
1,000+	₹204.64	₹2,04,640.00

Quantity (min 1)

1 × ₹293.24

₹293.24

excl. GST

₹346.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS630252YFFR

₹293.24 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 2.5MHz
Function: Buck-Boost
Number of Outputs: 1
Features: Output discharge;Load disconnect;Overcurrent Protection;Light load efficient mode
Topology: Buck-Boost
Output Type: Fixed
Operating Voltage: 2.3V~5.5V
Switch tube (built-in/external): Built-in
Output Current: 2A
Output Voltage: 3.3V
Quiescent Current: 35uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.028 g

Overview

True buck or boost operation with automatic and seamless transition between buck and boost operation; input voltage range 2.3V to 5.5V; 2A continuous output current: input voltage ≥2.7V, output voltage = 3.3V; adjustable and fixed output voltage; up to 95% efficiency in buck or boost mode, and up to 97% efficiency when input voltage equals output voltage; 2.5MHz typical switching frequency; 35μA quiescent operating current; integrated soft-start; power-save mode; true shutdown function; output capacitor discharge function; overtemperature protection and overcurrent protection; wide capacitor value selection; compact 1.766mm x 2.086mm, 20-pin wafer-level chip scale package (WCSP).

Applications

Mobile phones, smartphones
Tablet PCs
PC and smartphone accessories
Point-of-load regulation
Battery-powered applications

Key features

Automatic and seamless transition between buck and boost operation
Input voltage range: 2.3V to 5.5V
2A continuous output current: input voltage ≥2.7V, output voltage = 3.3V
Adjustable and fixed output voltage
Up to 95% efficiency in buck or boost mode, up to 97% efficiency when input voltage equals output voltage
2.5MHz typical switching frequency
35μA quiescent operating current
Integrated soft-start
Power-save mode
True shutdown function
Output capacitor discharge function
Thermal shutdown and overcurrent protection
Wide capacitor value selection
Compact 1.766mm x 2.086mm, 20-pin WCSP package
