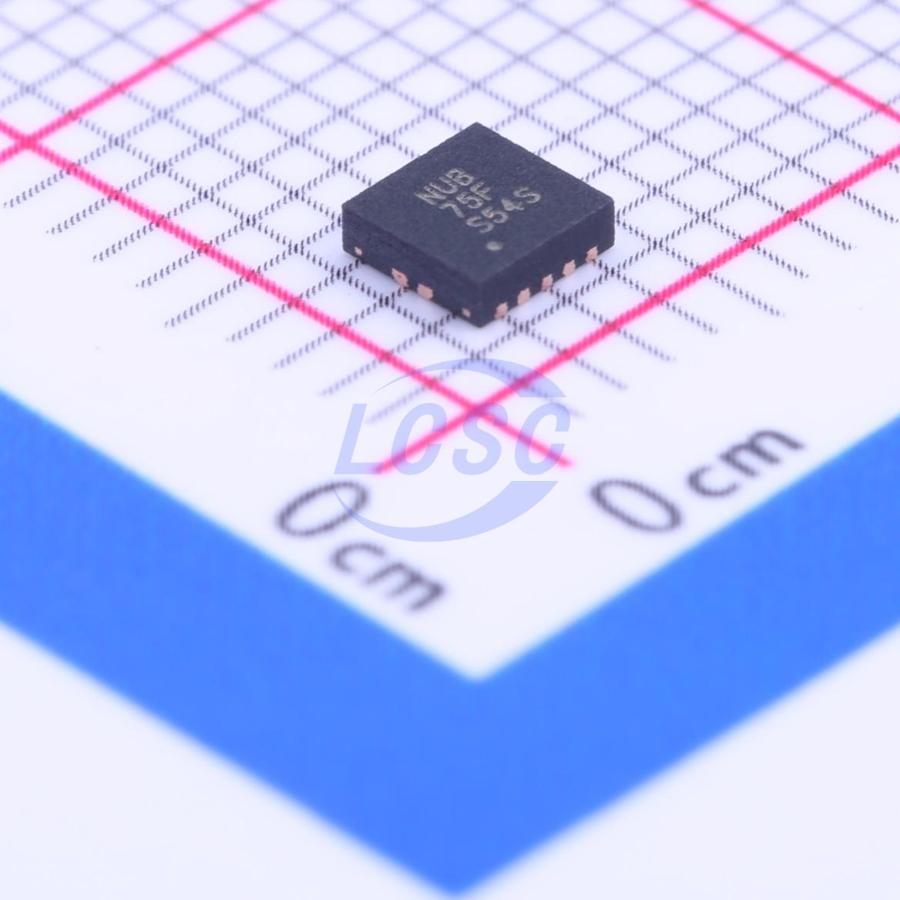

TPS63700DRCR

The TPS63700 is an inverting dc-dc converter generating a negative output voltage down to -15 V with output currents up to 360-mA, depending on input-voltage to output-voltage ratio. With a total efficiency up to 84%, the device is ideal for portable battery-powered equipment. The input voltage range of 2.7 V to 5.5-V allows the TPS63700 to be directly powered from a Li-ion battery, from 3-cell NiMH/NiCd, from a 3.3-V or 5-V supply rail. The TPS63700 comes in a small 3-mm x 3-mm SON-10 package. Furthermore, the high switching frequency of typically 1.4 MHz allows the use of small external components. This, and the small package make a small power supply solution possible. The inverter operates with a fixed-frequency PWM control topology. The device has an internal current limit, overvoltage protection, and a thermal shutdown for highest reliability under fault conditions.

Applications

• Generic Negative Voltage Supply
• Small-to-Medium Size OLED Displays
• PDAs, Pocket PCs, Smartphones
• Bias Supply

Key features

• Adjustable Output Voltage Down to –15 V
• 2.7-V to 5.5-V Input Voltage Range Up to 360-mA Output Current
• 1000-mA Typical Switch Current Limit
• Up to 84% Efficiency
• Typical 1.4-MHz Fixed-Frequency PWM Operation
• Thermal Shutdown
• Typical –19 V Output Overvoltage Protection
• 1.5-μA Shutdown Current
• Small 3-mm x 3-mm SON-10 Package (DRC)
