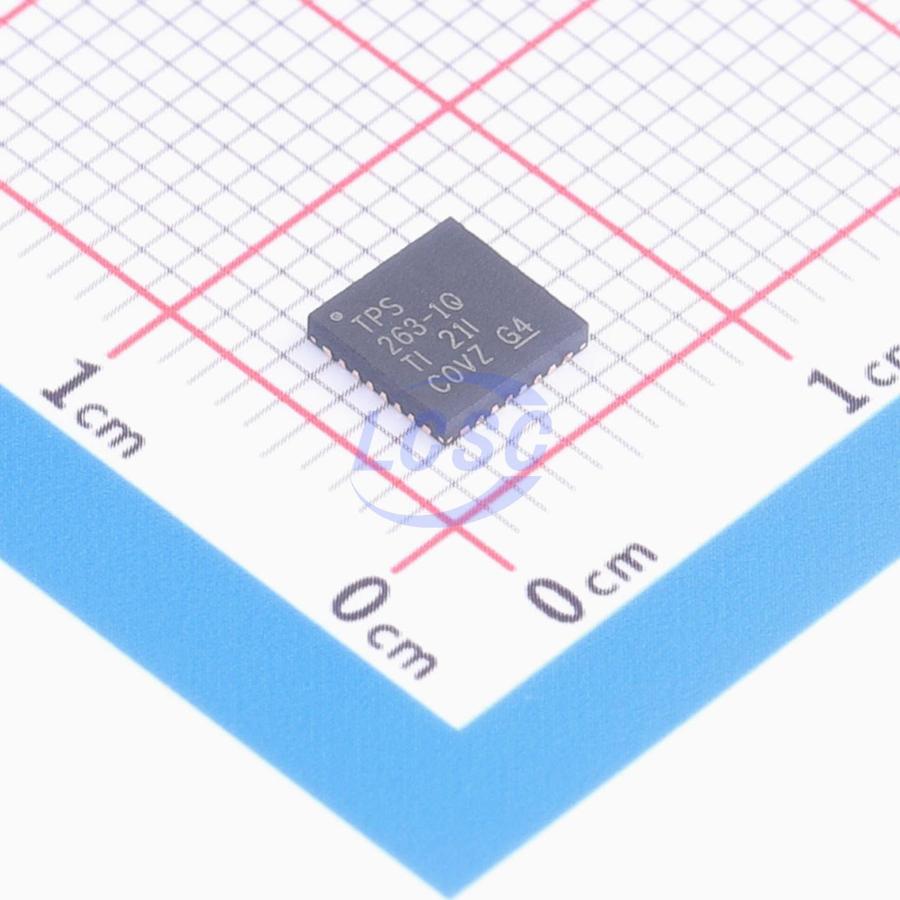

TPS65263-1QRHBTQ1

2.3MHz Step-down type Adjustable VQFN-32-EP(5x5) Voltage Regulators - DC DC Switching Regulators RoHS

VQFN-32-EP(5x5)ROHS3 CompliantActive

Manufacturer: TI
Manufacturer part #: TPS65263-1QRHBTQ1
Store part #: C1880040
Package / case: VQFN-32-EP(5x5)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8 in stock

#C1880040

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹901.35	₹901.35
10+	₹878.27	₹8,782.70
30+	₹863.03	₹25,890.90
100+	₹847.58	₹84,758.00

Quantity (min 1)

1 × ₹901.35

₹901.35

excl. GST

₹1,063.59 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 250 per reel

TPS65263-1QRHBTQ1

₹901.35 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 2.3MHz
Function: Step-down type
Number of Outputs: 3
Features: Dynamic voltage scaling;Frequency synchronization;Adjustable soft-start;Operating status indication;Overcurrent Protection;Hiccup current limiting;Light load efficient mode;External compensation
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4V~18V
Switch tube (built-in/external): Built-in
Output Current: 3A;2A
Quiescent Current: 750uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 250 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.86 g

Overview

The TPS65263-1Q1 contains three synchronous buck converters with a wide input voltage range of 4.0V to 18V. The converters feature constant-frequency peak current mode control, designed to simplify the application while enabling designers to optimize the system for their target application. The switching frequency is adjustable via an external resistor over a range of 200kHz to 2.3MHz. 180° out-of-phase operation between buck1, buck2, and buck3 (buck2 and buck3 operate in phase) minimizes input filter requirements. The initial startup voltage of each buck converter can be set via external feedback resistors. The output voltage of buck2 can be dynamically adjusted using I2C-controlled 7-bit VID over a range of 0.68V to 1.95V in 10mV steps. The slew rate for VID voltage transitions can be programmed via the I2C bus using 3-bit control to optimize overshoot/undershoot during VID voltage transitions. Each buck converter in the TPS65263-1Q1 can be controlled via I2C to: enable and disable output voltages, set pulse skip mode (PSM) or forced continuous current (FCC) mode under light-load conditions, and read power-good status, overcurrent warnings, and die temperature warnings. The TPS65263-Q1 features overvoltage protection, overcurrent protection, short-circuit protection, and overtemperature protection.

Applications

Automotive
Automotive audio or video
Home gateway and access point networking
Surveillance

Key features

AEC-Q100 qualified
Device temperature grade 1: operating junction temperature range -40°C to 125°C
Device HBM ESD classification level H2
Device CDM ESD classification level C4B
Operating input voltage range 4.0V to 18V, maximum continuous output current 3A/2A/2A
Buck2 I²C-controlled 7-bit VID programmable output voltage range 0.68V to 1.95V, step 10mV
Buck2 I²C-controlled VID voltage transition slew rate
I2C readback for power good status, overcurrent warning, and die temperature warning
I²C-compatible interface supporting standard mode (100kHz) and fast mode (400kHz)
Feedback reference voltage 0.6V ±1%
Adjustable clock frequency range 200kHz to 2.3MHz
FCC mode (default)
External clock synchronization
Dedicated enable and soft-start pins per buck
Output voltage power good indicator
Thermal overload protection
