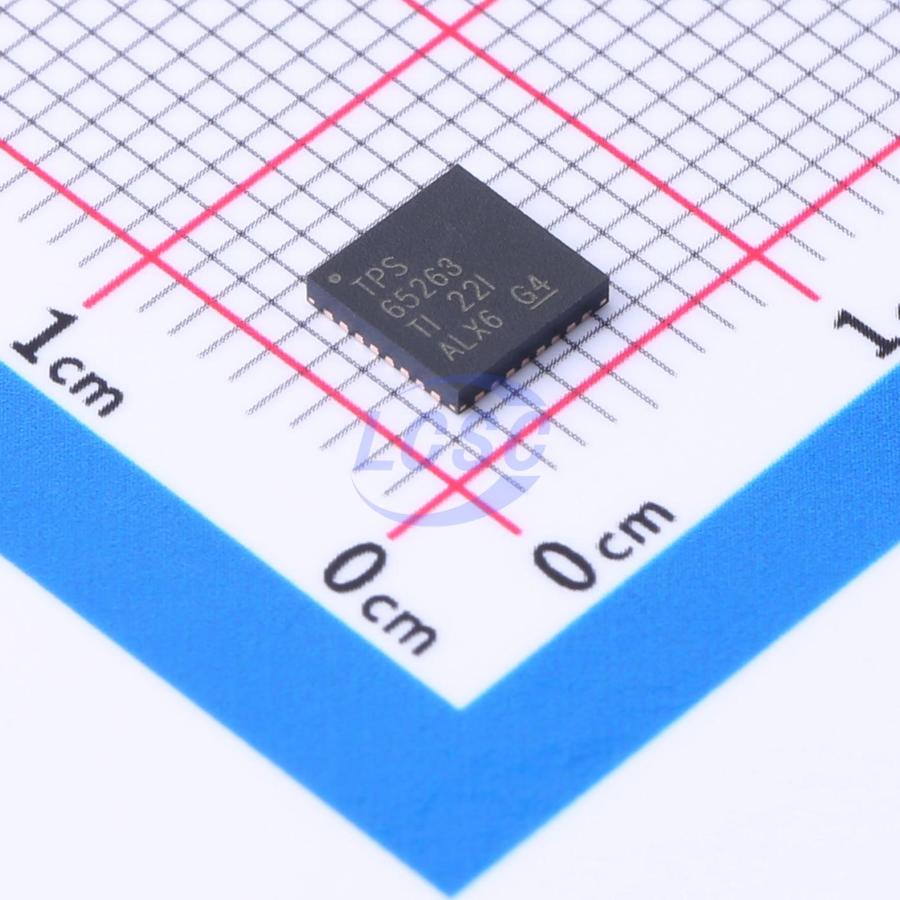

TPS65263RHBT

Buck Switching Regulator IC Adjustable 0.68V~6.3V 3 Output 3A 2A VQFN-32-EP(5x5)

VQFN-32-EP(5x5)ROHS3 CompliantActive

4.5 to 18V input voltage, three-channel synchronous buck converters supporting I²C-controlled dynamic voltage regulation

Manufacturer: TI
Manufacturer part #: TPS65263RHBT
Store part #: C2072235
Package / case: VQFN-32-EP(5x5)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

17 in stock

#C2072235

Stock & price checked 11 days ago

Quantity	Unit price	Pack price
1+	₹378.48	₹378.48
10+	₹321.11	₹3,211.10
30+	₹285.41	₹8,562.30
250+	₹248.64	₹62,160.00
500+	₹232.07	₹1,16,035.00
1,000+	₹224.84	₹2,24,840.00

Quantity (min 1)

1 × ₹378.48

₹378.48

excl. GST

₹446.61 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 250 per reel

TPS65263RHBT

₹378.48 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 600kHz
Function: Step-down type
Number of Outputs: 3
Features: Dynamic voltage scaling;Adjustable soft-start;Light load efficient mode;Overcurrent Protection;Hiccup current limiting;Operating status indication;Built-in LDO regulator
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~18V
Switch tube (built-in/external): Built-in
Output Voltage: 680mV~6.3V
Output Current: 3A;2A
Quiescent Current: 740uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 250 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.5 g

Overview

The TPS65263 integrates three synchronous buck converters supporting a 4.5V to 18V wide input voltage range, which covers most power buses or batteries with intermediate bus off voltages of 5V, 9V, 12V, or 15V. This converter features constant-frequency peak current mode, designed to simplify the application while enabling designers to optimize the system for their target application. The device operates at 600kHz, with buck1 180° out of phase with buck2 and buck3 (buck2 and buck3 operate in phase). The initial startup voltage of each buck converter can be set via external feedback resistors. An I²C-controlled 7-bit VID can be used to dynamically adjust the output voltage of each buck converter over a range of 0.68V to 1.95V in 10mV steps. The VID voltage slew rate can be programmed via 3-bit I²C bus control to optimize overshoot/undershoot during VID voltage transitions. Each buck converter in the TPS65263 can be controlled via I²C to perform the following operations: enable/disable output voltage, set pulse skip mode (PSM) or forced continuous current mode (FCM) under light load conditions, and read power-good status, overcurrent warning, and temperature warning. The TPS65263 features overvoltage protection, overcurrent protection, short-circuit protection, and overtemperature protection.

Applications

Digital TV (DTV) LCD panels
Set-top boxes
Home gateway and access point networks
Security surveillance

Key features

Operating input voltage range 4.5V to 18V, continuous output current 3A/2A/2A
I2C-controlled 7-bit VID programmable output voltage 0.68V to 1.95V per voltage converter, 10mV step size
I2C-controlled VID voltage slew rate
I2C per-buck converter readback of power good status with overcurrent warning
I2C readback chip temperature warning
I²C-compatible interface supporting Standard Mode (100kHz) and Fast Mode (400kHz)
Feedback reference voltage 0.6V ±1%
Fixed frequency 600kHz
Dedicated enable and soft-start pins per buck converter
Thermal overload protection
