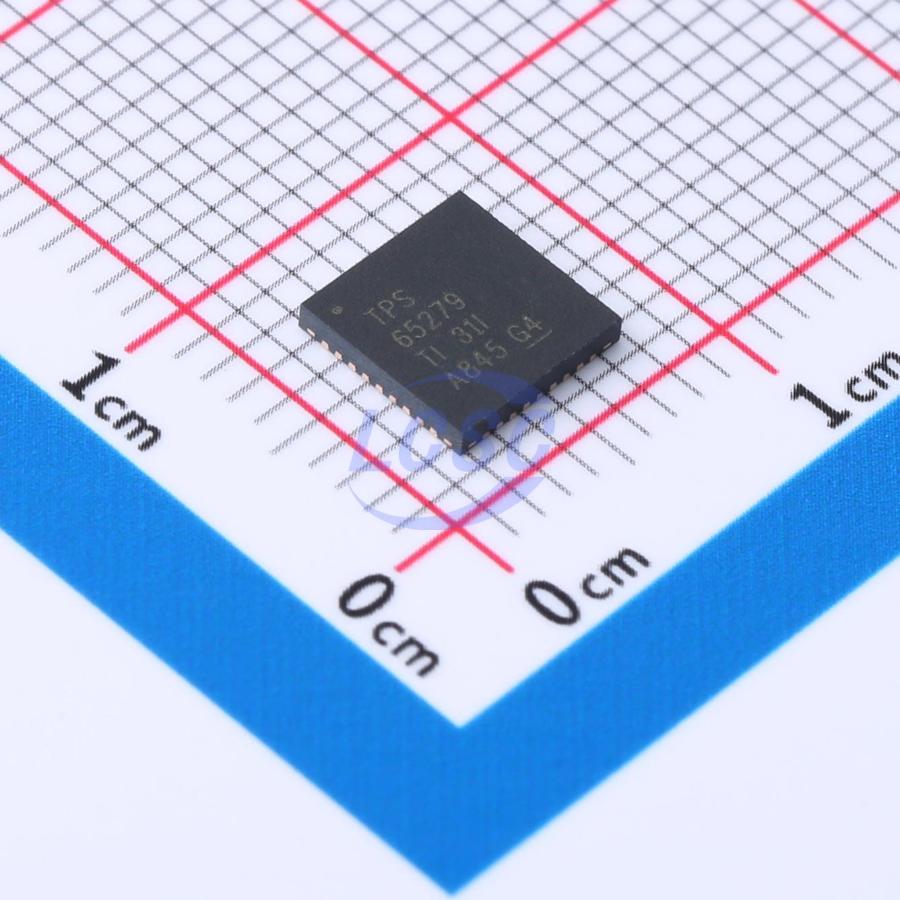

TPS65279RHHR
Buck Switching Regulator IC Adjustable 0.6V~9V 2 Output 5A VQFN-36-EP(6x6)
VQFN-36-EP(6x6)ROHS3 CompliantActive
4.5V to 18V input, dual-channel 5A/5A synchronous buck converter with current sharing function
- Manufacturer
- TI
- Manufacturer part #
- TPS65279RHHR
- Store part #
- C2071639
- Package / case
- VQFN-36-EP(6x6)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C2071639
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹515.43 | ₹515.43 |
| 10+ | ₹447.43 | ₹4,474.30 |
| 30+ | ₹406.78 | ₹12,203.40 |
| 100+ | ₹365.93 | ₹36,593.00 |
| 500+ | ₹347.02 | ₹1,73,510.00 |
| 1,000+ | ₹338.56 | ₹3,38,560.00 |
1 × ₹515.43
₹515.43
excl. GST
₹608.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TPS65279RHHR
₹515.43 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 1.6MHz
- Number of Outputs
- 2
- Function
- Step-down type
- Features
- Adjustable current limiting;Cycle-by-cycle current limiting;Hiccup current limiting;Adjustable soft-start;Frequency synchronization;Light load efficient mode;Operating status indication;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~18V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 5A
- Output Voltage
- 600mV~9V
- Quiescent Current
- 1.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.27 g
Overview
TPS65279 is a monolithic dual synchronous buck converter with a 4.5V to 18V wide operating input voltage range, covering most power buses or batteries with intermediate bus voltages of 5V, 9V, 12V, or 15V. This constant-frequency peak current mode control converter is designed to simplify its application while enabling designers to optimize their implementation for the target application. By using current sharing mode with the ISHARE pin tied high, the two buck converters in the TPS65279 can be connected in parallel to deliver up to 10A load current. Two-phase operation with current sharing reduces system filter capacitors and inductors, mitigates EMI, and improves output voltage ripple and noise. The TPS65279 features a dedicated enable pin. An independent soft-start pin provides flexibility in power-up programmability. Constant-frequency peak current mode simplifies compensation and provides fast transient response. Cycle-by-cycle overcurrent protection and discontinuous mode operation limit MOSFET power dissipation under short-circuit or overload fault conditions. Low-side reverse overcurrent protection also prevents excessive sink current from damaging the converter. The TPS65279 further features a light-load pulse skip mode (PSM) configured via the MODE pin. The TPS65279 is available in a 32-pin thermally enhanced HTSSOP (DAP) package and a 36-pin 6mm × 6mm VQFN (RHH) package.
Applications
- Digital Television (DTV)
- Telecom & Networking
- Point of Load
- Set-Top Box
- Tablet
Key features
- 4.5V to 18V wide input voltage range
- Programmable slew rate control for output voltage transitions
- Up to 5A maximum continuous output current for Buck Converter 1 and Buck Converter 2
- Buck Converter 1 and Buck Converter 2 can be paralleled to deliver up to 10A
- Pulse skip mode for high efficiency under light load conditions
- Adjustable switching frequency from 200kHz to 1.6MHz (set by external resistor)
- Dedicated enable and soft-start for each buck converter
- Peak current mode control with simple compensation network
- Cycle-by-cycle overcurrent protection
- 180° phase-shifted operation to reduce input capacitance and power supply induced noise
- Overtemperature protection
- Available in 32-pin thermally enhanced HTSSOP with exposed pad (DAP) and 36-pin VQFN 6mm × 6mm (RHH) packages
