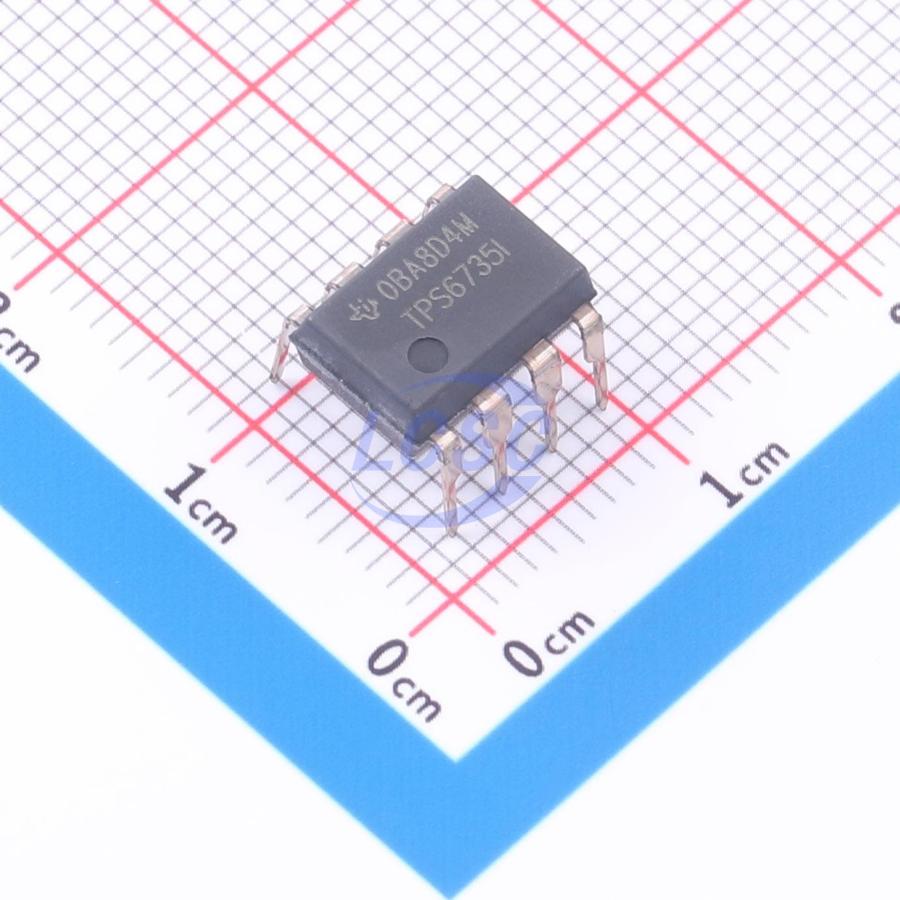

TPS6735IP

The TPS6735 is a fixed negative 5-V output inverting dc/dc converter capable of delivering 200 mA from inputs as low as 4.5 V. The only external components required are an inductor, an output filter capacitor, an input filter capacitor, a reference filter capacitor, and a Schottky rectifier. An enable input is provided to shut down the inverter when a -5-V output is not needed. The typical supply current is 1.9 mA at no-load and is further reduced to 1 μA when the enable input is low. The TPS6735 is a 160-kHz current-mode pulse-width-modulation (PWM) controller with a p-channel MOSFET power switch. The gate drive uses the -5-V output to reduce the die area needed to realize the 0.4-Ω MOSFET. Soft start is accomplished with the addition of one small capacitor at SS. A 1.22-V reference is available for external loads up to 125 μA. The TPS6735 is attractive for board-level dc/dc conversion in computer peripherals and in battery-powered equipment requiring high efficiency and low supply current. The TPS6735 is available in 8-pin DIP and SOIC packages and operates over a free-air temperature range of -40°C to 85°C.

Applications

• computer peripherals
• battery-powered equipment

Key features

• Negative 5-V 200-mA Output (VCC ≥ 4.5 V)
• 4-V to 6.2-V Input Operating Range
• 78% Typical Efficiency
• 160-kHz Fixed-Frequency Current-Mode PWM Controller
• EN Input Inhibits Operation and Reduces Supply Current to 1 μA
• Soft Start
• 8-Pin SOIC and DIP Packages
• -40°C to 85°C Free-Air Temperature Range
• Pin-for-Pin Compatible with MAX735
