TIDatasheet (PDF)

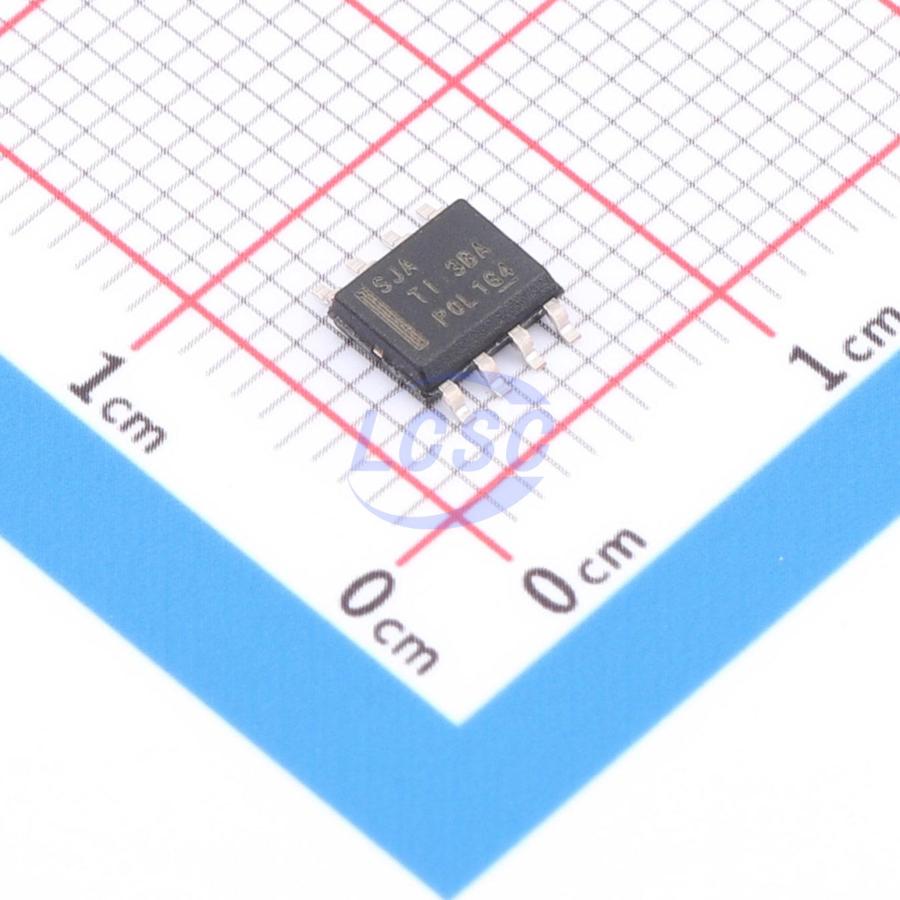

TPS7A7002DDA
500mV~5V Positive Adjustable SOIC-8-EP Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOIC-8-EPROHS3 CompliantActive
3A, low input voltage (1.4V), adjustable ultra-low dropout regulator with enable
- Manufacturer
- TI
- Manufacturer part #
- TPS7A7002DDA
- Store part #
- C2868885
- Package / case
- SOIC-8-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C2868885
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹219.64 | ₹219.64 |
| 10+ | ₹182.12 | ₹1,821.20 |
| 30+ | ₹161.75 | ₹4,852.50 |
| 100+ | ₹138.33 | ₹13,833.00 |
| 500+ | ₹128.15 | ₹64,075.00 |
| 1,000+ | ₹123.37 | ₹1,23,370.00 |
1 × ₹219.64
₹219.64
excl. GST
₹259.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 75 per reel
TPS7A7002DDA
₹219.64 for 1 + GST
Specifications
- Output Voltage
- 500mV~5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Output Configuration
- Positive
- Operating Voltage
- 6.5V
- Output Current
- 3A
- Output Type
- Adjustable
- Features
- Enable control;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 75 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.44 g
Overview
The TPS7A7002 is a high-performance, positive-voltage, low-dropout (LDO) regulator designed for applications requiring ultra-low input voltage and ultra-low dropout at currents up to 3A. The device supports a single input voltage as low as 1.425V, with an output voltage programmable down to 0.5V. The output voltage can be set using an external resistor divider. The TPS7A7002 features ultra-low dropout, making it ideal for applications where VOUT is very close to VIN. Additionally, the TPS7A7002 includes an enable pin to further reduce power dissipation in shutdown mode. The TPS7A7002 provides excellent regulation performance across line, load, and temperature variations. The TPS7A7002 is available in an 8-pin small PowerPAD package option.
Applications
- Telecom and network interface cards
- Motherboards and peripheral cards for industrial applications
- Wireless infrastructure set-top boxes
- Medical devices
- Laptop battery-powered systems
Key features
- Input voltage as low as 1.425V
- Maximum dropout 380mV at 2A
- Maximum dropout 600mV at 3A
- Adjustable output from 0.5V
- Protection: current limiting and thermal shutdown
- Enable pin
- Ground current 1μA in shutdown mode
- Full industrial temperature range
- SOIC-8, fully RoHS-compliant package
