TIDatasheet (PDF)

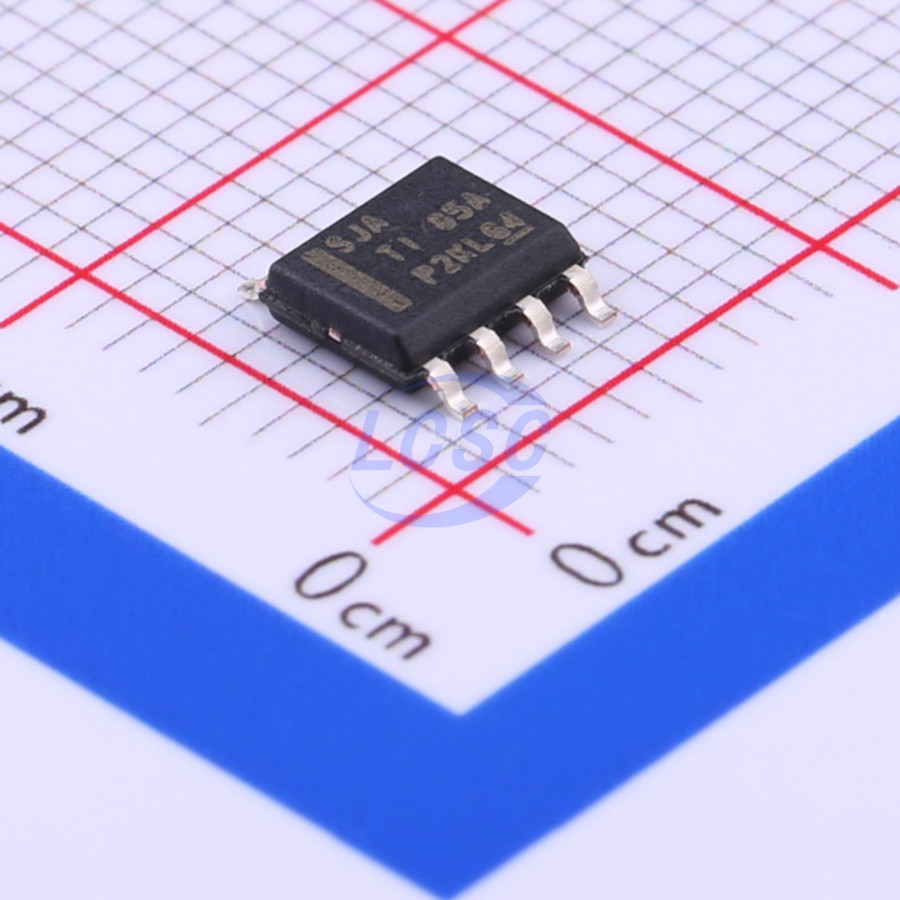

TPS7A7002DDAR
500mV~5V Positive Adjustable SOIC-8-EP Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOIC-8-EPROHS CompliantActive
3A, low input voltage (1.4V), adjustable ultra-low dropout regulator with enable
- Manufacturer
- TI
- Manufacturer part #
- TPS7A7002DDAR
- Store part #
- C140311
- Package / case
- SOIC-8-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,007 in stock
#C140311
Stock & price checked 17 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹203.60 | ₹203.60 |
| 10+ | ₹173.46 | ₹1,734.60 |
| 30+ | ₹156.76 | ₹4,702.80 |
| 100+ | ₹138.12 | ₹13,812.00 |
| 500+ | ₹129.88 | ₹64,940.00 |
| 1,000+ | ₹125.98 | ₹1,25,980.00 |
1 × ₹203.60
₹203.60
excl. GST
₹240.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TPS7A7002DDAR
₹203.60 for 1 + GST
Specifications
- Output Voltage
- 500mV~5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 3mA
- Output Configuration
- Positive
- Output Current
- 3A
- Operating Voltage
- 6.5V
- Features
- Enable control;Over Current Protection;Thermal shutdown;Input under-voltage protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.401 g
Overview
The TPS7A7002 is a high-performance, positive-voltage, low-dropout (LDO) regulator designed for use in applications requiring very-low input voltage and very-low dropout voltage at up to 3 A. The device operates with a single input voltage as low as 1.425 V, and with an output voltage programmable to as low as 0.5 V. The output voltage can be set using an external divider. The TPS7A7002 features ultra-low dropout, ideal for applications where VOUT is very close to VIN. Additionally, the TPS7A7002 has an enable pin for further reduced power dissipation while in Shutdown mode. The TPS7A7002 provides excellent regulation over variations in line, load, and temperature. The TPS7A7002 is available in an 8-pin SO PowerPAD package.
Applications
- Telecom and Networking Cards
- Motherboards and Peripheral Cards
- Industrial
- Wireless Infrastructure
- Set-Top Boxes
- Medical Equipment
- Notebook Computers
- Battery-Powered Systems
Key features
- Input Voltage as Low as 1.425 V
- 380-mV Maximum Dropout at 2 A
- 600-mV Maximum Dropout at 3 A
- Adjustable Output from 0.5 V
- Protections: Current Limit and Thermal Shutdown
- Enable Pin
- 1-μA Ground Current in Shutdown Mode
- Full Industrial Temperature Range
- Available in an SOIC-8, Fully RoHS-Compliant Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS7A7002DDA#C2868885TI · SOIC-8-EP | TI | SOIC-8-EP | 10 | ₹219.64 · 10 in stock | View |
 | MIC69303YME-TR#C220812MICROCHIP · SOIC-8-EP | MICROCHIP | SOIC-8-EP | On request | ₹378.62 · 0 in stock | View |
