TECH PUBLICDatasheet (PDF)

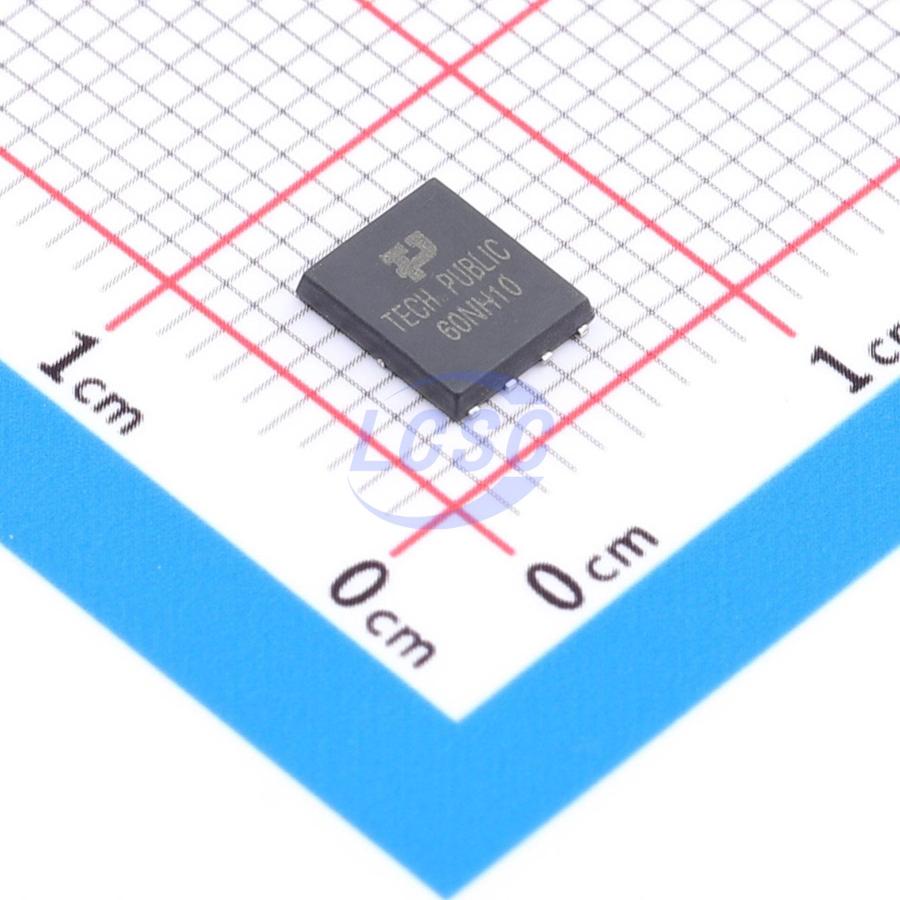

TPSIR846BDP-T1-RE3
57W 100V 60A 6.5mΩ@10V 1 N-channel N-Channel PDFN-8(5x6) Single FETs, MOSFETs
PDFN-8(5x6)RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPSIR846BDP-T1-RE3
- Store part #
- C53100620
- Package / case
- PDFN-8(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,327 in stock
#C53100620
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.83 | ₹65.83 |
| 10+ | ₹51.73 | ₹517.30 |
| 30+ | ₹45.52 | ₹1,365.60 |
| 100+ | ₹38.05 | ₹3,805.00 |
| 500+ | ₹34.62 | ₹17,310.00 |
| 1,000+ | ₹32.49 | ₹32,490.00 |
1 × ₹65.83
₹65.83
excl. GST
₹77.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
TPSIR846BDP-T1-RE3
₹65.83 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 410pF
- Ciss-Input Capacitance
- 2.86nF
- Pd - Power Dissipation
- 57W
- Configuration
- Standalone
- Drain to Source Voltage
- 100V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 60A
- Reverse Transfer Capacitance (Crss)
- 38pF
- RDS(on)
- 6.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 40nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
This device is an N-channel power MOSFET fabricated using advanced trench process technology, featuring low on-resistance and high current handling capability. It has a maximum drain-source voltage of 100V, a continuous drain current of 60A at a gate-source voltage of 10V, and a typical on-resistance as low as 6.5mΩ.
Applications
- Load switch
- High-frequency switching and synchronous rectification
- Active clamp in intermediate DC/DC power supplies
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPSIR804DP-T1-GE3#C52205257TECH PUBLIC · PDFN-8(5x6) | TECH PUBLIC | PDFN-8(5x6) | 150 | ₹72.75 · 150 in stock | View |
 | TPBSC100N10NSFG#C53100600TECH PUBLIC · PDFN-8(5x6) | TECH PUBLIC | PDFN-8(5x6) | 54 | ₹66.16 · 54 in stock | View |
 | TPBSC079N10NSG#C53100601TECH PUBLIC · PDFN-8(5x6) | TECH PUBLIC | PDFN-8(5x6) | 200 | ₹66.16 · 200 in stock | View |
 | TPNTMFS7D8N10GTWG#C53100602TECH PUBLIC · PDFN-8(5x6) | TECH PUBLIC | PDFN-8(5x6) | 202 | ₹66.16 · 202 in stock | View |
 | TPNTMFS010N10GTWG#C53100618TECH PUBLIC · PDFN-8(5x6) | TECH PUBLIC | PDFN-8(5x6) | 196 | ₹64.19 · 196 in stock | View |
