TECH PUBLICDatasheet (PDF)

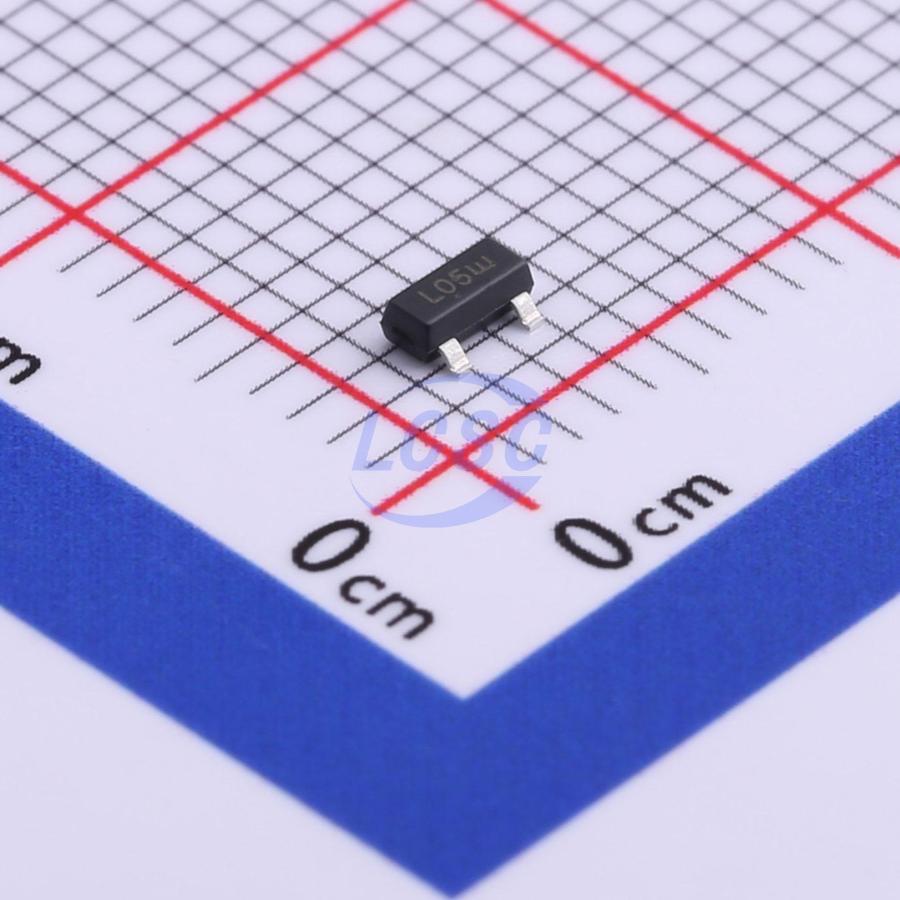

TPSL05T1G
nan
SOT-23RoHSActive
ESD DIODE 5VWM SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPSL05T1G
- Store part #
- C587138
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
250 in stock
#C587138
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.89 | ₹78.90 |
| 100+ | ₹6.32 | ₹632.00 |
| 300+ | ₹5.54 | ₹1,662.00 |
| 3,000+ | ₹4.43 | ₹13,290.00 |
| 6,000+ | ₹3.97 | ₹23,820.00 |
| 9,000+ | ₹3.73 | ₹33,570.00 |
10 × ₹7.89
₹78.90
excl. GST
₹93.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPSL05T1G
₹78.90 for 10 + GST
Specifications
- Clamping Voltage
- 9.8V;15V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 12A
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 5.5V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
Applications
- USB Power & Data Line Protection
- Monitors and Flat Panel Displays
- I²C Bus Protection
- Portable Instrumentation Set Top Box
Key features
- 150 Watts peak pulse power (tp = 8/20μs)
- Transient protection for high speed data lines to IEC 61000 - 4 - 2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000 - 4 - 4 (EFT) 40A (5/50ns)
- Working voltages: 5V
- Protects two unidirectional line
- Low operating and clamping voltages
- Solid - state silicon avalanche technology
