TECH PUBLICDatasheet (PDF)

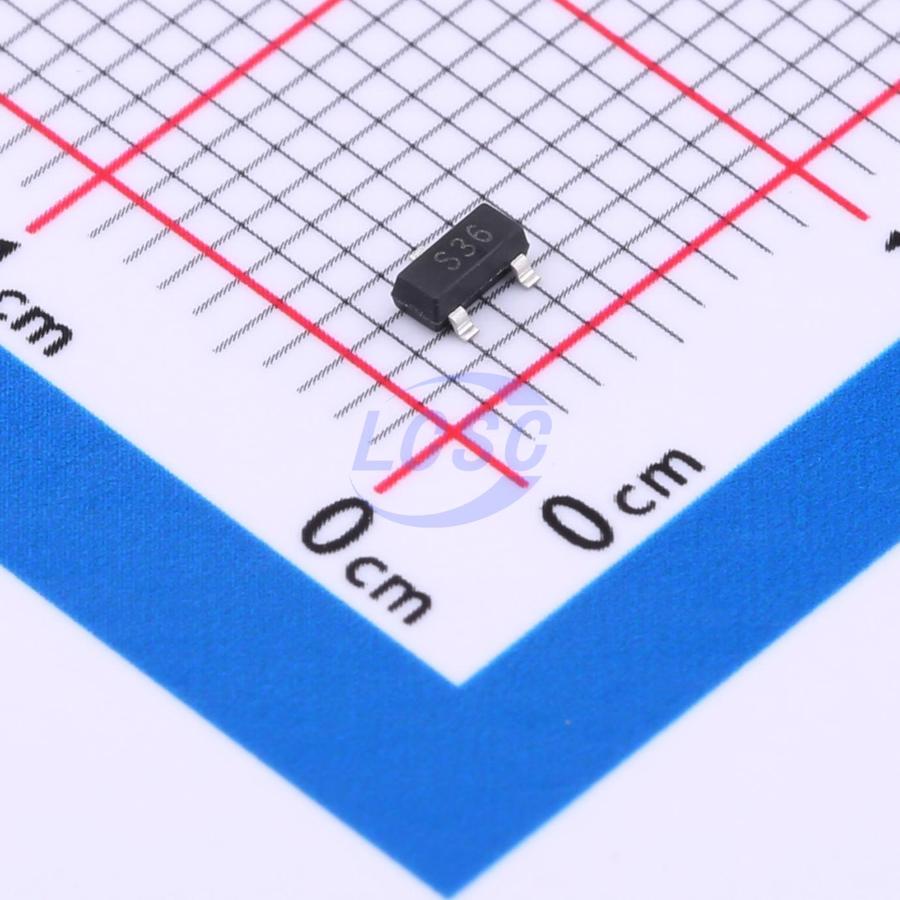

TPSM36T1G
70VC Clamp 5A@8/20us Ipp SOT-23
SOT-23RoHSActive
36VWM 70VC SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPSM36T1G
- Store part #
- C970019
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,380 in stock
#C970019
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.04 | ₹80.40 |
| 100+ | ₹6.56 | ₹656.00 |
| 300+ | ₹5.81 | ₹1,743.00 |
| 3,000+ | ₹4.54 | ₹13,620.00 |
| 6,000+ | ₹4.09 | ₹24,540.00 |
| 9,000+ | ₹3.86 | ₹34,740.00 |
10 × ₹8.04
₹80.40
excl. GST
₹94.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPSM36T1G
₹80.40 for 10 + GST
Specifications
- Clamping Voltage
- 70V
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 42V
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
Applications
- USB Power & Data Line Protection
- Monitors and Flat Panel Displays
- I²C Bus Protection
- Portable Instrumentation
- Set Top Box
Key features
- 350W peak pulse power(8/20µs)
- Protects one bi-directional or two uni-directional lines
- Ultra low leakage: nA level
- Operating voltage: 36V
- Low clamping voltage
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-5 (Lightning) 5A (8/20μs)
- IEC61000-4-4 (EFT) 40A (5/50ns)
- RoHS Compliant
