VISHAYDatasheet (PDF)
TPSMA27AHE3_B/H

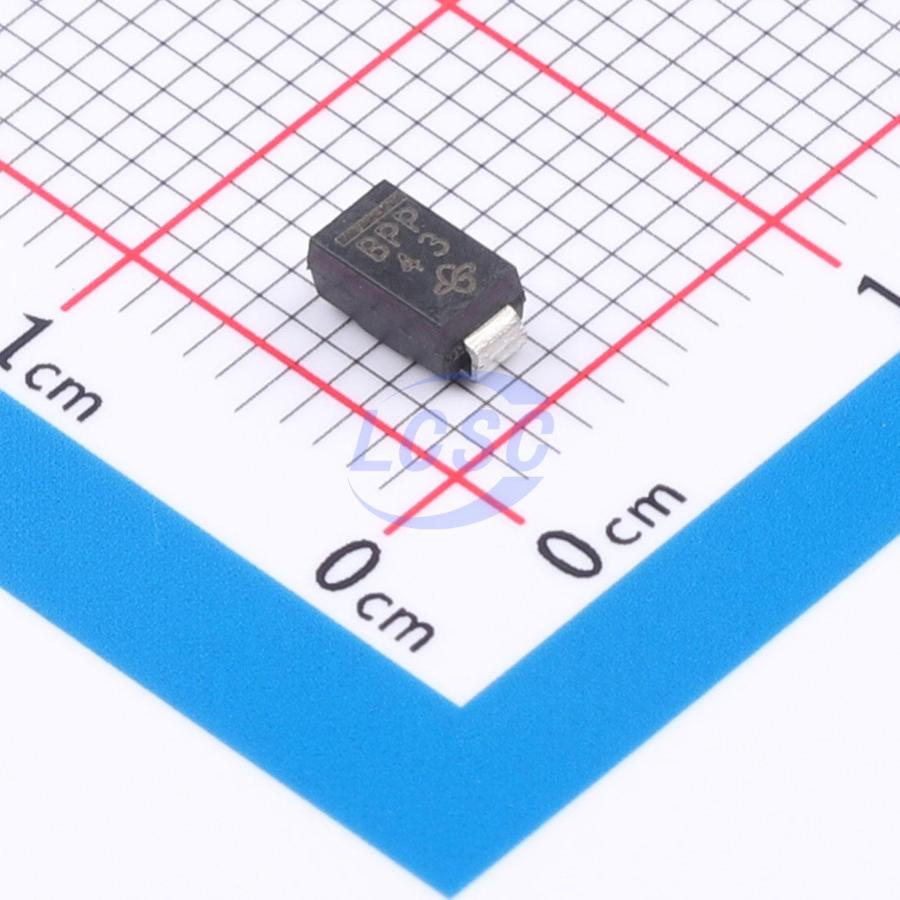

37.5VC Clamp 10.7A@10/1000us Ipp TVS DIODE SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- TPSMA27AHE3_B/H
- Store part #
- C1974816
- Package / case
- SMA(DO-214AC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,670 in stock
#C1974816
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.98 | ₹109.90 |
| 50+ | ₹17.08 | ₹854.00 |
| 150+ | ₹14.98 | ₹2,247.00 |
| 500+ | ₹12.36 | ₹6,180.00 |
| 1,800+ | ₹11.19 | ₹20,142.00 |
| 5,400+ | ₹10.49 | ₹56,646.00 |
5 × ₹21.98
₹109.90
excl. GST
₹129.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
TPSMA27AHE3_B/H
₹109.90 for 5 + GST
Specifications
- Clamping Voltage
- 37.5V
- Operating Temperature
- -65℃~+185℃
- Peak Pulse Current (Ipp)
- 10.7A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 28.4V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 23.1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.08 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lightning on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication.
Key features
- Junction passivation optimized design passivated anisotropic rectifier technology RoHS
- T_J = 185 °C capability suitable for high reliability and automotive requirement HALOGEN FREE
- Available in uni - directional polarity only Available
- 400 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 %
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
- Meets MSL level 1, per J - STD - 020, LF maximum peak of 260 °C
- AEC - Q101 qualified available - Automotive ordering code: base P/NHE3 or P/NHM3
Alternatives
Similar parts — check the datasheet before substituting.
