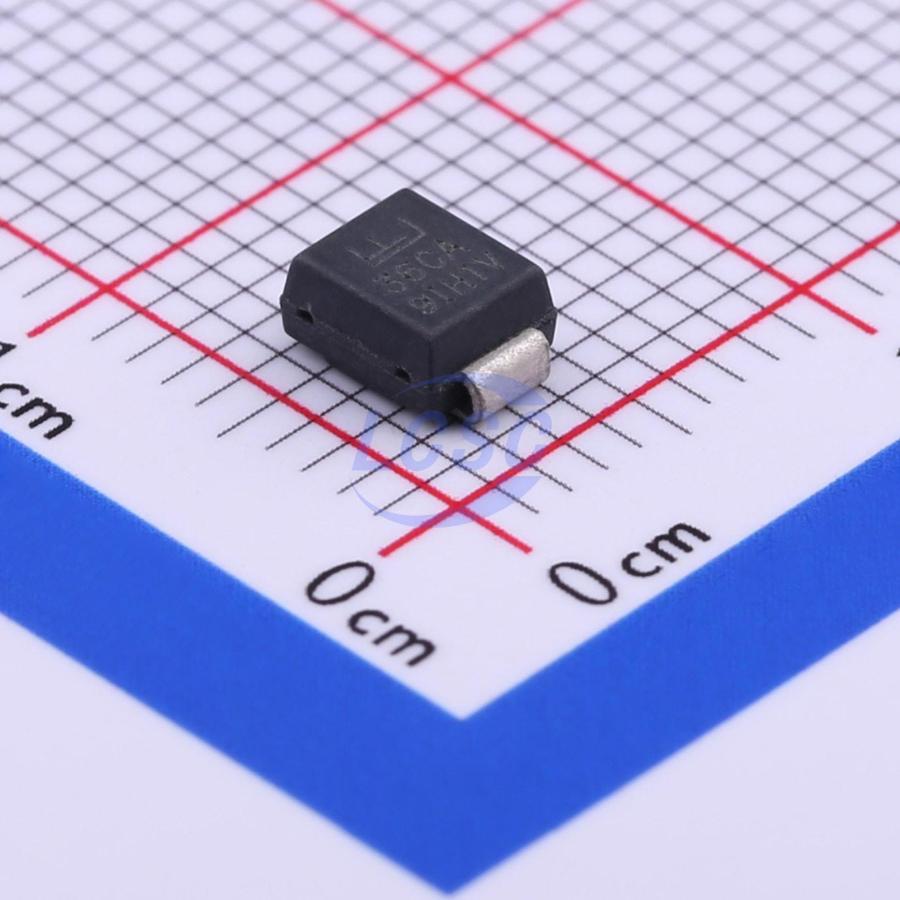

TPSMB36CA
49.9VC Clamp 12.2A Ipp TVS DIODE DO-214AA
DO-214AAROHS3 CompliantActive
TVS DIODE 30.8VWM 49.9VC DO-214AA
- Manufacturer
- Littelfuse
- Manufacturer part #
- TPSMB36CA
- Store part #
- C413569
- Package / case
- DO-214AA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
650 in stock
#C413569
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.17 | ₹115.85 |
| 50+ | ₹18.47 | ₹923.50 |
| 150+ | ₹16.44 | ₹2,466.00 |
| 500+ | ₹13.93 | ₹6,965.00 |
| 3,000+ | ₹12.82 | ₹38,460.00 |
| 6,000+ | ₹12.15 | ₹72,900.00 |
5 × ₹23.17
₹115.85
excl. GST
₹136.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPSMB36CA
₹115.85 for 5 + GST
Specifications
- Clamping Voltage
- 49.9V
- Operating Temperature
- -65℃~+175℃
- Peak Pulse Current (Ipp)
- 12.2A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 34.2V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 30.8V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
The TPSMB series is designed specifcally to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
- TVS components are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Automotive applications.
Key features
- Fast response time: typically less than 1.0ns from 0V to V_BR min
- Excellent clamping capability
- Low incremental surge resistance
- Typical I_R ≤ 1 μA for V_R > 10.2V
- UL Recognized compound meeting fammability rating V-0
- Meet MSL level1, per J-STD-020, High temperature soldering guaranteed: 260℃/10 seconds at terminals
- Matte tin lead–free plated
- Halogen free and RoHS compliant
- Pb-free E3 means 2nd level interconnect is Pb free and the terminal fnish material is tin(Sn) (IPC/ JEDEC J-STD-609A.01)
- High reliability application and automotive grade AE Q101 qualifed
- Surface mount componen to optimize board space
- Low profle package
- Typical failure mode is short from over-specifed voltage or current
- Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
- ESD protection of data lines in accordance with IEC 61000-4-2 30kV(Air), 30kV (Contact)
- EFT protection of data lines in accordance with IEC 61000-4-4
- Glass passivated chip junction
- 600W PPPM (peak pulse power) capability at 10/1000 μs waveform, repetition rate (duty cycles): 0.01 %
